Section 13 PWRcell Battery BMU Replacement
ON
OFF
BATTERY DISCONNECT

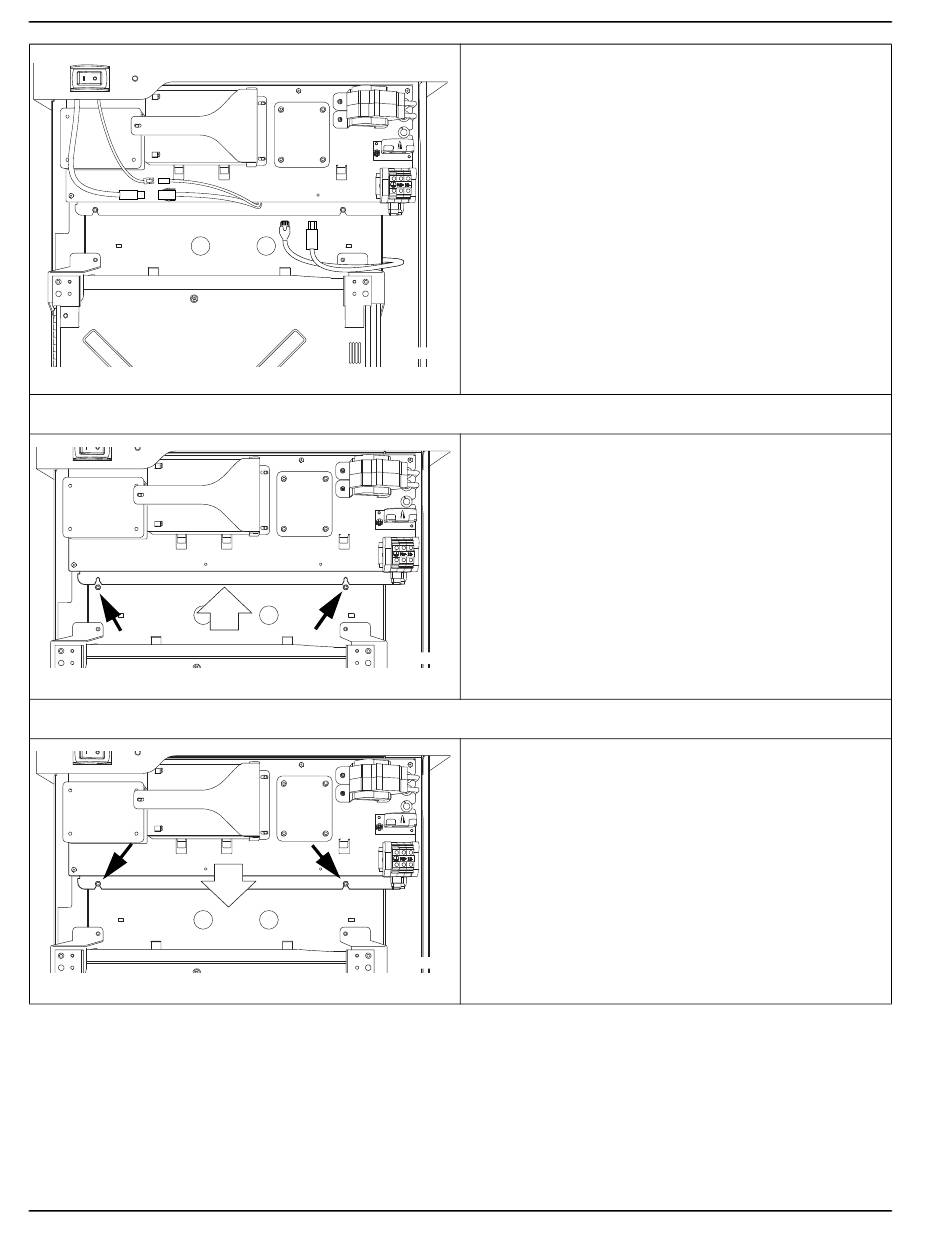

Figure 13-16.
Remove BMU from PWRcell Battery Frame
ON
OFF
BATTERY DISCONNECT
Figure 13-17.
Install BMU to PWRcell Battery Frame
ON
OFF
BATTERY DISCONNECT
Figure 13-18.
114
7. Disconnect red 4 pin connector for master switch
assembly from BMU.
8. Disconnect black 3 pin connector for led indicator.
9. Disconnect gray CAT5 cable for battery modules
from underside of BMU.
10. Disconnect USB-B connector for service cable
from underside of BMU. (show USB and CAT5
cables
013155
000000
1. Locate and remove two retaining fasteners on
bottom of BMU bracket.
2. Lift BMU assembly up off of fasteners and remove
assembly.
013156
Reverse order of removal.
1. Slide BMU assembly down on hangers and fasten
with two retaining screws or nuts.
013157
