Diagnostic Repair Manual
Section 13 PWRcell Battery BMU Replacement

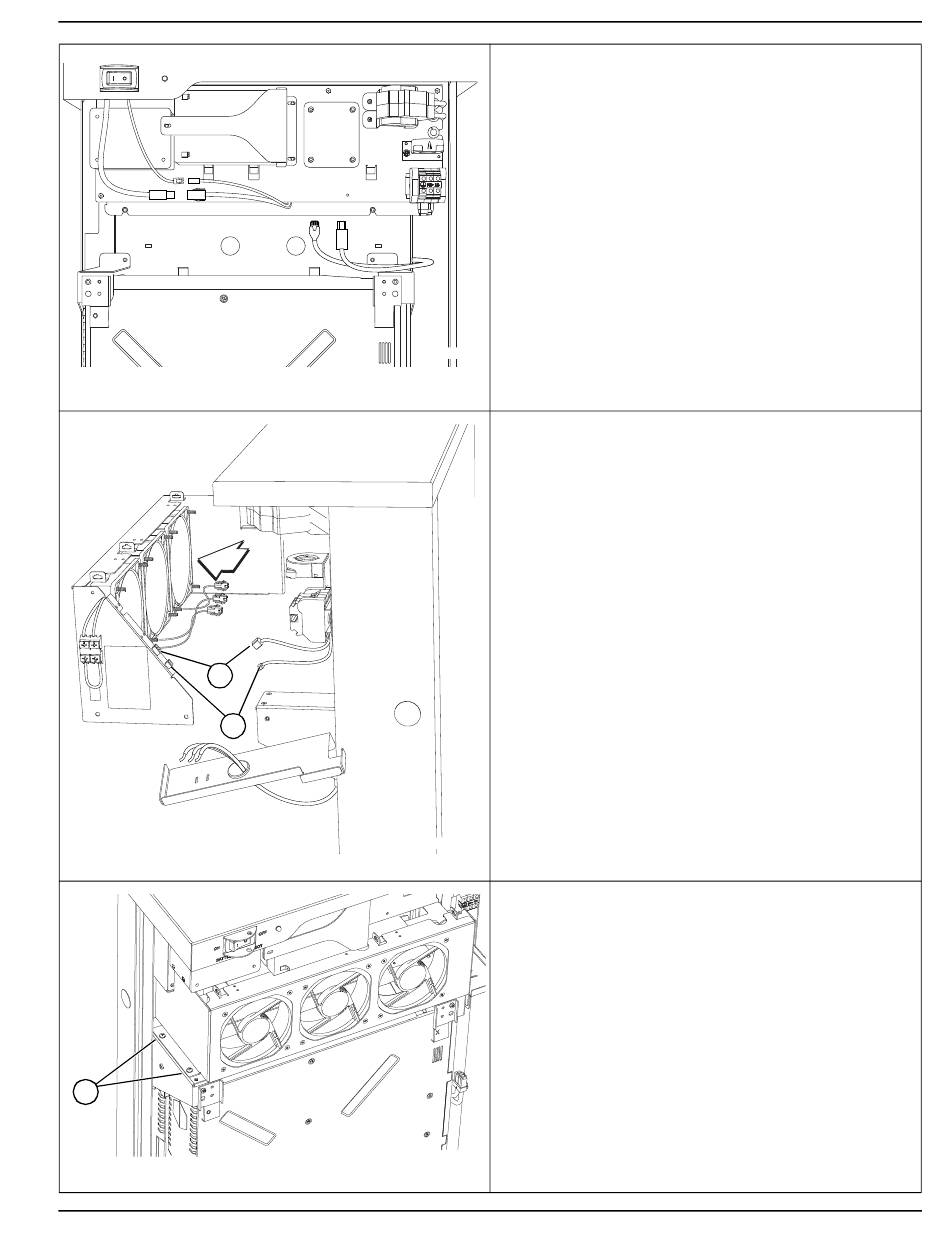

2. Install USB cable.
3. Install CAT5 network cable.
4. Connect LED indicator 3 pin black connector.
5. Connect 4 pin red master switch connector.
013155 000000
6. Slide fan assembly in place.
7. Connect 2-pin connector (C) and (if equipped) 3-
pin connector (D).
013525
8. Install two Phillips screws (B) holding the left side
of the fan assembly to the PWRcell Battery frame.
