2.8 Product structure

1. Water-cooled inverter unit
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
202212 (V1.0)

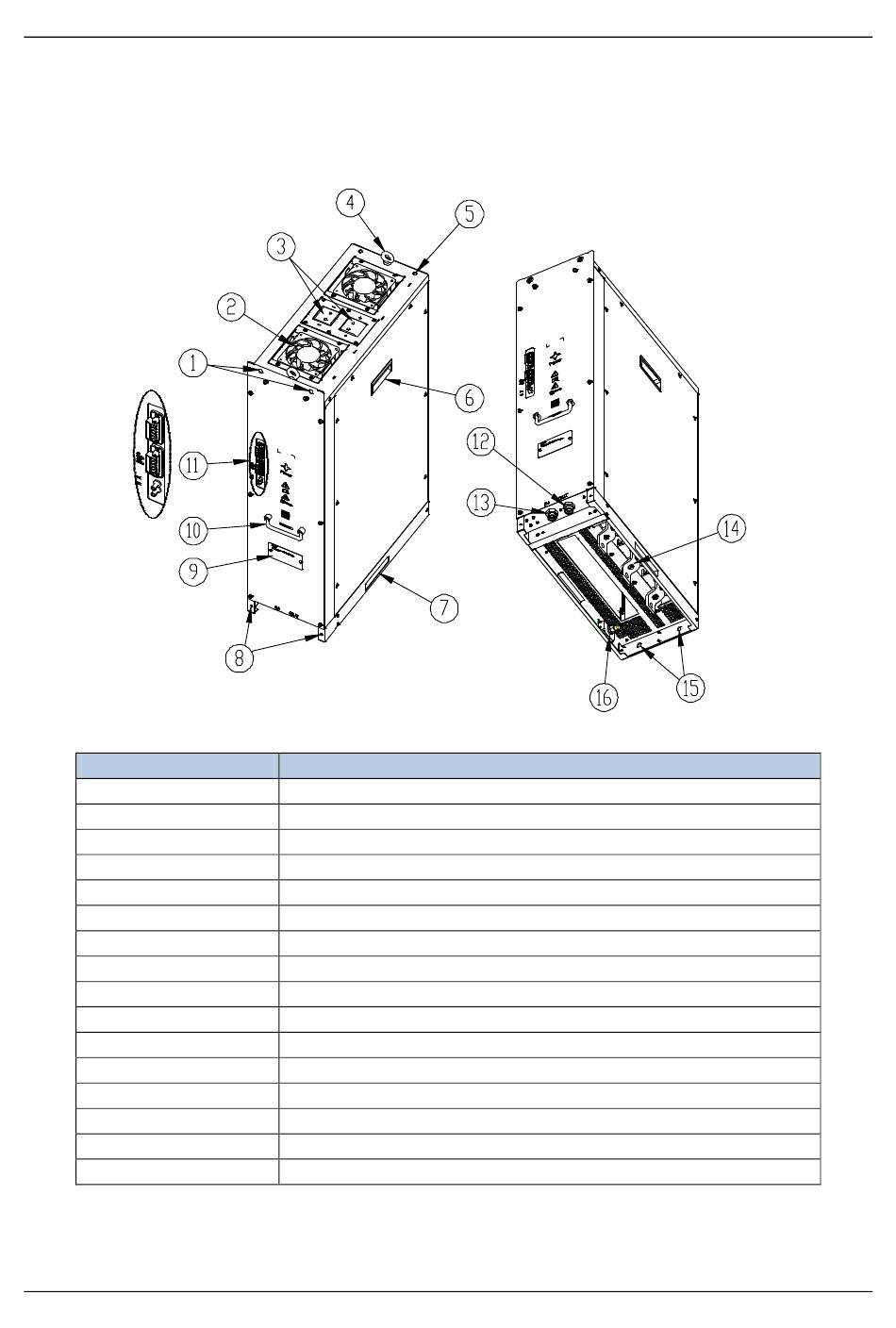

Figure 2-13 Water-cooled inverter unit structure
Fixing hole at the top front end of the unit
Auxiliary cooling fan
+, - poles of input copper bar
Rings
Fixed hole at the top rear end of the unit (for wall mounting)
Embedded side handle
Bottom handle
Fixing hole at the bottom front end of the unit
Nameplate
Front handle
User terminals on the fiber optic and control boards
Water outlet connector
Water inlet connector
UVW AC output terminals
Fixed hole at the bottom rear end of the unit (for wall mounting)
Ground (PE) terminal
Description
Product overview
