Installation
Quick Changer -
Tool side

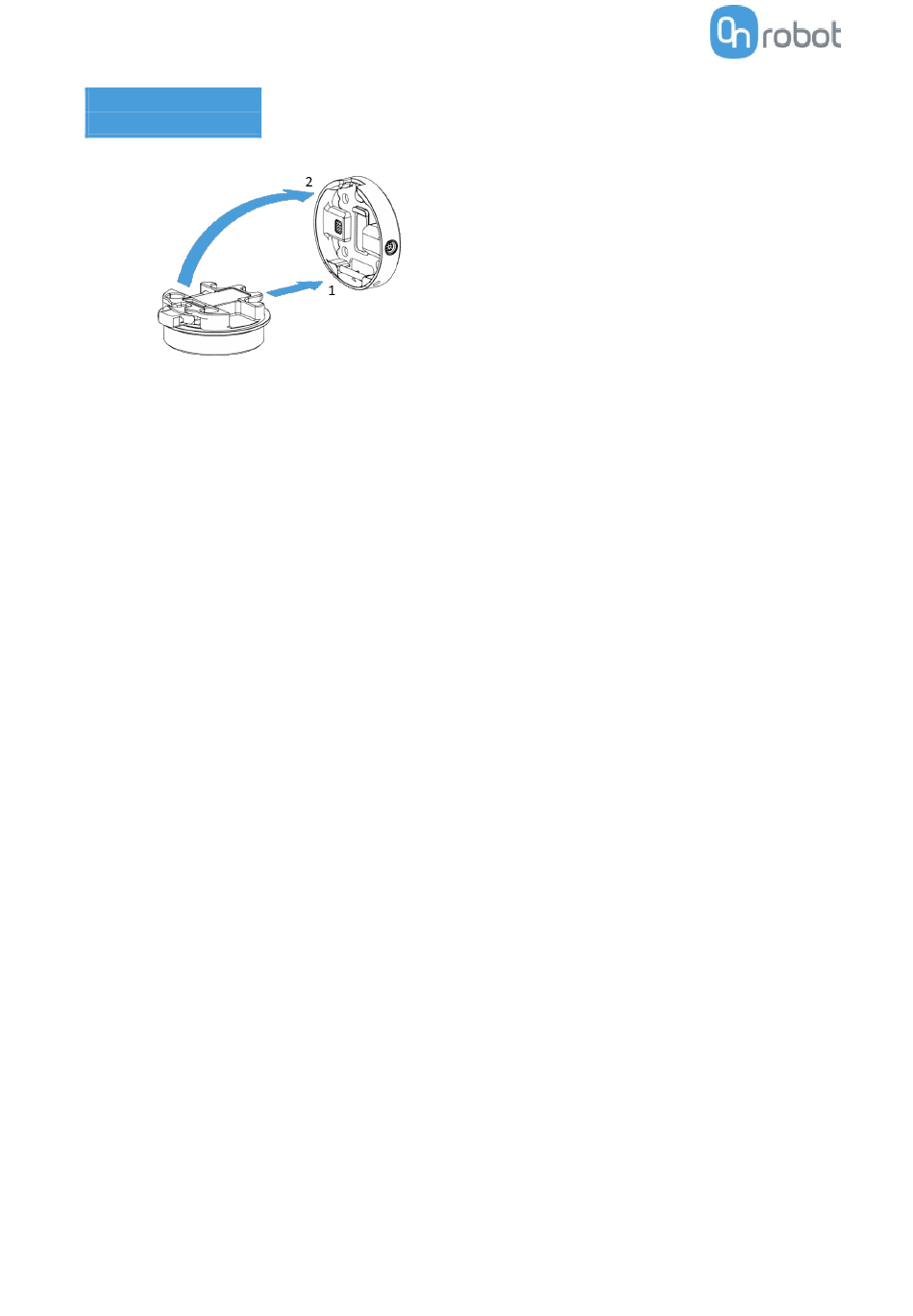

Step 1:
Move the tool close to the Quick Changer
as illustrated.
The hook mechanism (rod and hook
tongue) will keep the lower part locked
once mounted.
Step 2:
Flip the tool until it is fully mated, and you
hear a clicking sound.
To unmount the tool, press the aluminum button
on the Quick Changer and repeat the steps in the
reverse order.
