OnRobot VGC10 User Manual page 163

Hardware Specification
For non-porous materials, the OnRobot suction cups are highly recommended. Some of the most common
non-porous materials are listed below:
• Composites
• Glass
• High density cardboard
• High density paper
• Metals
• Plastic
• Porous materials with a sealed surface
• Varnished wood

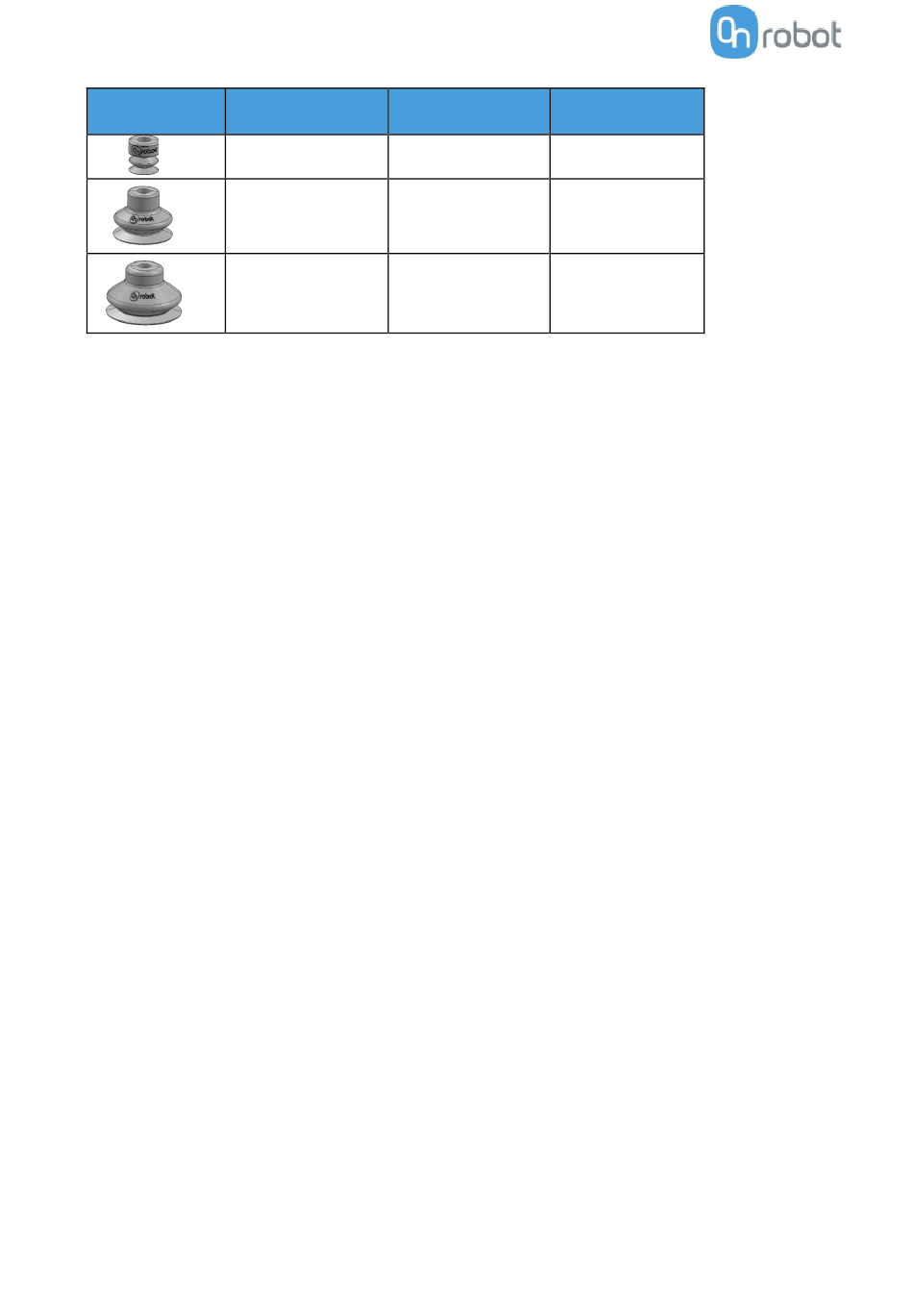

In an ideal case, working with non-porous material workpieces where there are no air flow going through
the workpiece, the table below shows the number of cups and the cup size needed depending on the
payload (workpiece mass) and the vacuum used.
External Diameter Internal Diameter
[mm] [mm]
15 6
30 8
40 12
Gripping Area
[mm2]
110
200
450
