OnRobot VGC10 User Manual page 165

Hardware Specification
• Low density cardboard
• Low density paper
• Perforated materials
• Untreated wood
See the table below with general recommendations, in case other suction cups are needed for specific
materials.
Workpiece surface
Hard and flat
Soft plastic or plastic bag
Hard but curved or uneven
To be painted afterwards
Varying heights
NOTE:
It is recommended to consult a vacuum cup specialist to find the
optimal vacuum cup where the standard types are insufficient.

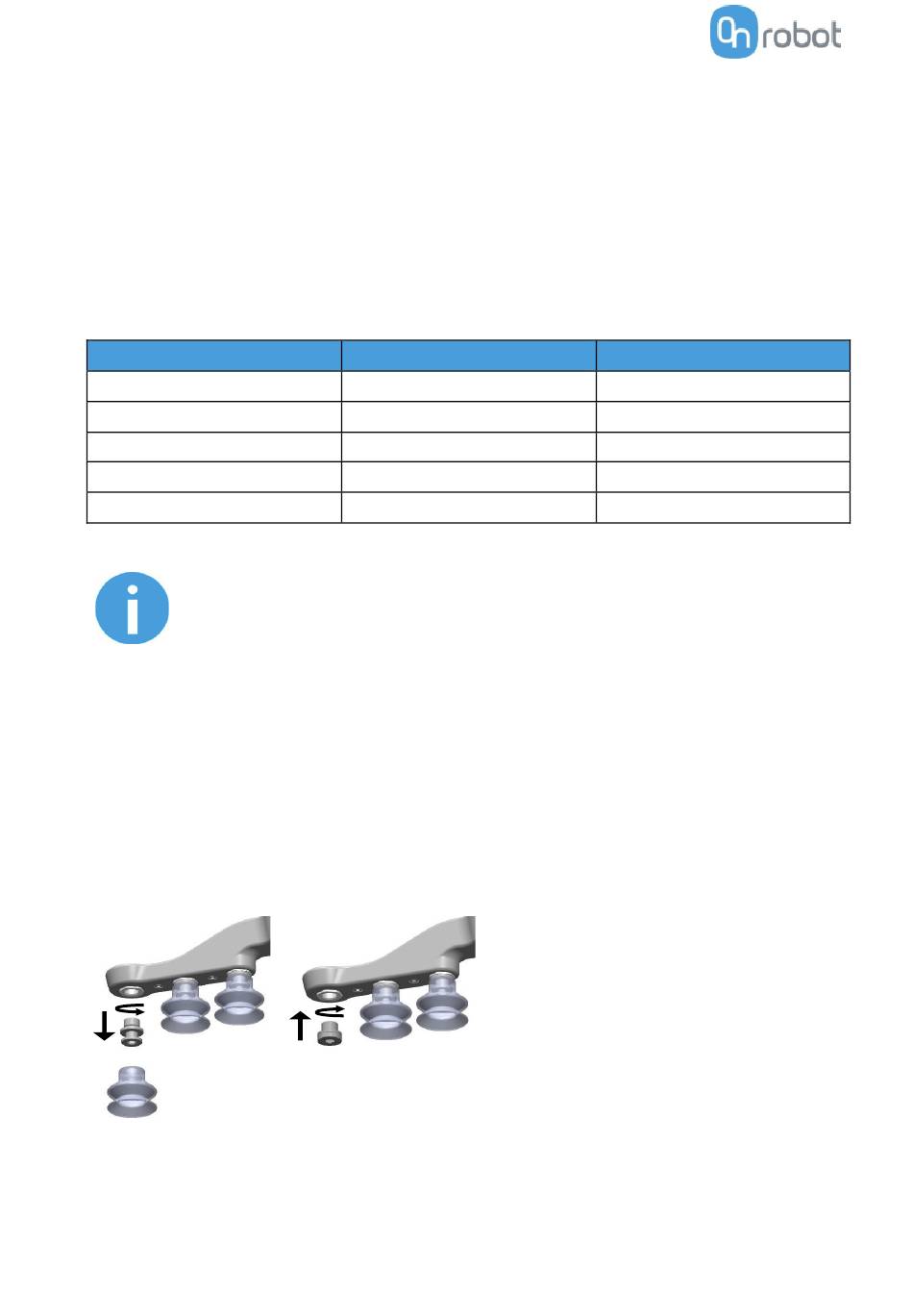

Fittings and Blind Screws.
It is possible to change suction cups simply by pulling them off the fittings. It might be a bit challenging to
remove the 15 mm Diameter vacuum cups. As suggestion try to stretch the silicon to one of the sides and
then pull it out.
Unused holes can be blinded using a blind screw, and each fitting can be changed to a diffe rent type to
match the desired suction cup. The fittings and the blinding screws are mounted or dismounted by
screwing (2Nm tightening torque) or unscrewing them with the provided 3 mm Allen key.
.
The thread size is the commonly used G1/8"; allowing for standard fittings, blinders and extenders to be
fitted directly to the VG grippers.
Vacuum cup shape
Normal or dual lip
Special plastic bag type
Thin dual lip
Any type
1.5 or more bevels
Vacuum cup material
Silicone or NBR
Special plastic bag type
Silicone or soft NBR
NBR only
Any type
