CDD-562L/564 Demodulator with IP Module
Rear Panel Connections

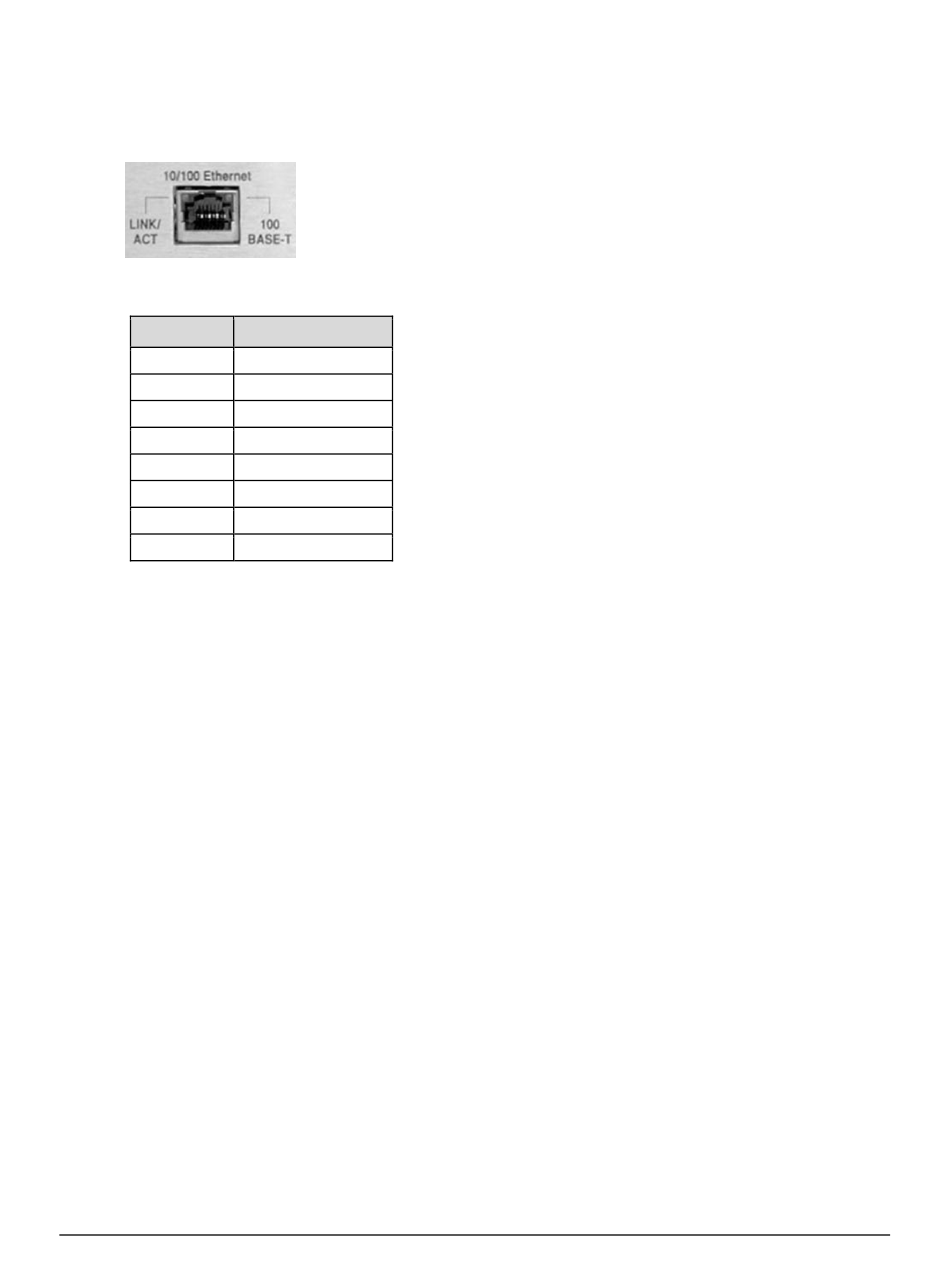

3.2.2 Terrestrial Data Connection – 10/100 Ethernet (RJ-45 Traffic/M&C
Port)
Note the following:
Pin #
1
2
3
4
5
6
7
8
The 10/100 BaseT Ethernet port is a standard 8-pin RJ-45 modular jack,
It is used for Ethernet traffic, management of CDD-562L/564/564L IP
Module functions via Telnet/HTTP/SNMP, and for updating of the
demodulator's IP Module firmware.
Function
Tx+
Tx-
Rx+
N/C
N/C
Rx-
N/C
N/C
3–4
