8.2.3.2

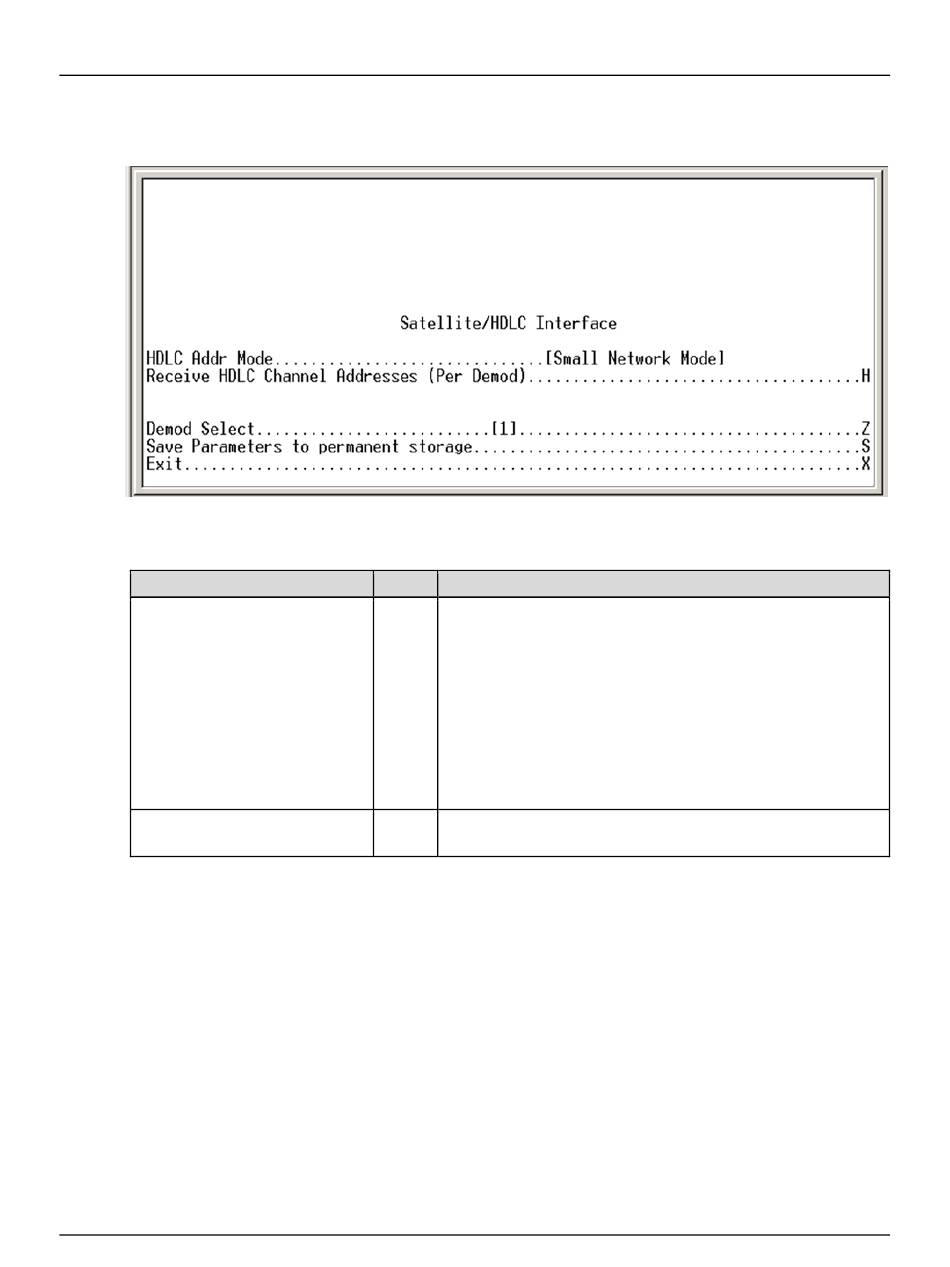

Satellite/HDLC Interface page

Access the Satellite/HDLC Interface page from the Interface Configuration page.
This page contains the following unique selections/fields:
Selection
HDLC Addr Mode
Receive HDLC Channel Addresses
(Per Demod)
Entry Description
[RO] • Point-To-Point Mode – In this mode of operation, no HDLC
address is used over the satellite link. The restrictions on
using this mode are that it can only be used for pure Point-to-
Point configurations.
• Small Network Mode (up to 254 addresses) - In this mode of
operation, demodulator expects a single byte HDLC address
over the satellite link (0x1 – 0xFE).
• Large Network Mode (up to 32766 addresses) - In this mode
of operation, demodulator expects two byte HDLC address
over the satellite link (0x1 – 0xFFFE).
H Opens Receiver HDLC Channel Addresses (Per Demod) page.
