CDD-562L/564 Demodulator with IP Module
CDD-56X CLI and Telnet Operation
8.2.8.2.1

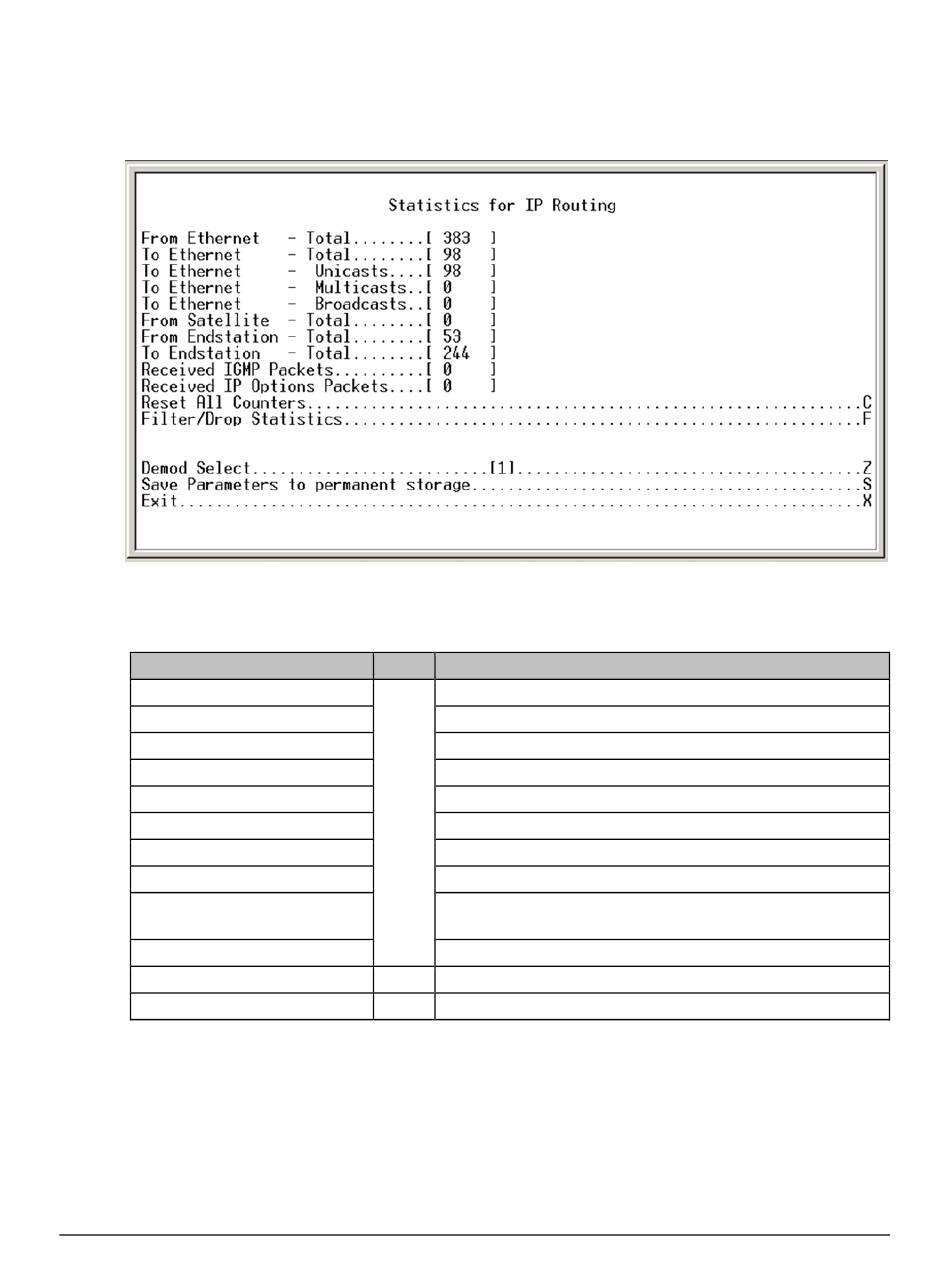

IP Statistics page

Access the IP Statistics page from the Statistics Menu page.
This page tallies the number of packets routed or dropped in the IP Module. This page contains
the following unique selections/fields:
Selection
From Ethernet - Total
To Ethernet - Total
To Ethernet – Unicasts
To Ethernet – Multicasts
To Ethernet – Broadcasts
From Satellite – Total
From Endstation – Total
To Endstation – Total
Received IGMP Packets
Received IP Options Packets
Reset All Counters
Filter/Drop Statistics
Entry Description
[RO] Displays Ethernet Statistics page, Rx Good Frames
Displays Ethernet Statistics page, Tx Good Frames
Displays Unicast packets to LAN
Displays Multicast packets to LAN
Displays Broadcast packets to LAN
Displays WAN Statistics page, Rx HDLC Packet Count
Displays Packets sent from demodulator
Displays Packets directed to demodulator
Displays Internet Group Management Packets received (used for
management of multicast traffic).
Displays number of IP Options packets received.
C Resets all WAN, Ethernet and IP Routing statistics gathered to zero.
F Opens Filter Statistics page.
