CDD-562L/564 Demodulator with IP Module
HTTP (Web Server) Interface
9.3.4.6

IP | VLAN

Use this page on a per-demod basis when HDLC Address Mode has been set to Managed Switch
(see Sect. 9.3.4.2 IP | HDLC).
VLAN Feature
Click Enable or Disable to set the VLAN operational state, and then click [Submit] to execute
the selection.
Native and Management Configuration
This section is used to configure the Native and Management VLAN IDs:
•
The Native VLAN ID is used to tag arriving packets that have no VLAN tag. Likewise, when
packets arrive from the WAN with the same VLAN tag as the Native VLAN ID, then the
VLAN header is removed and passed to the LAN interface.

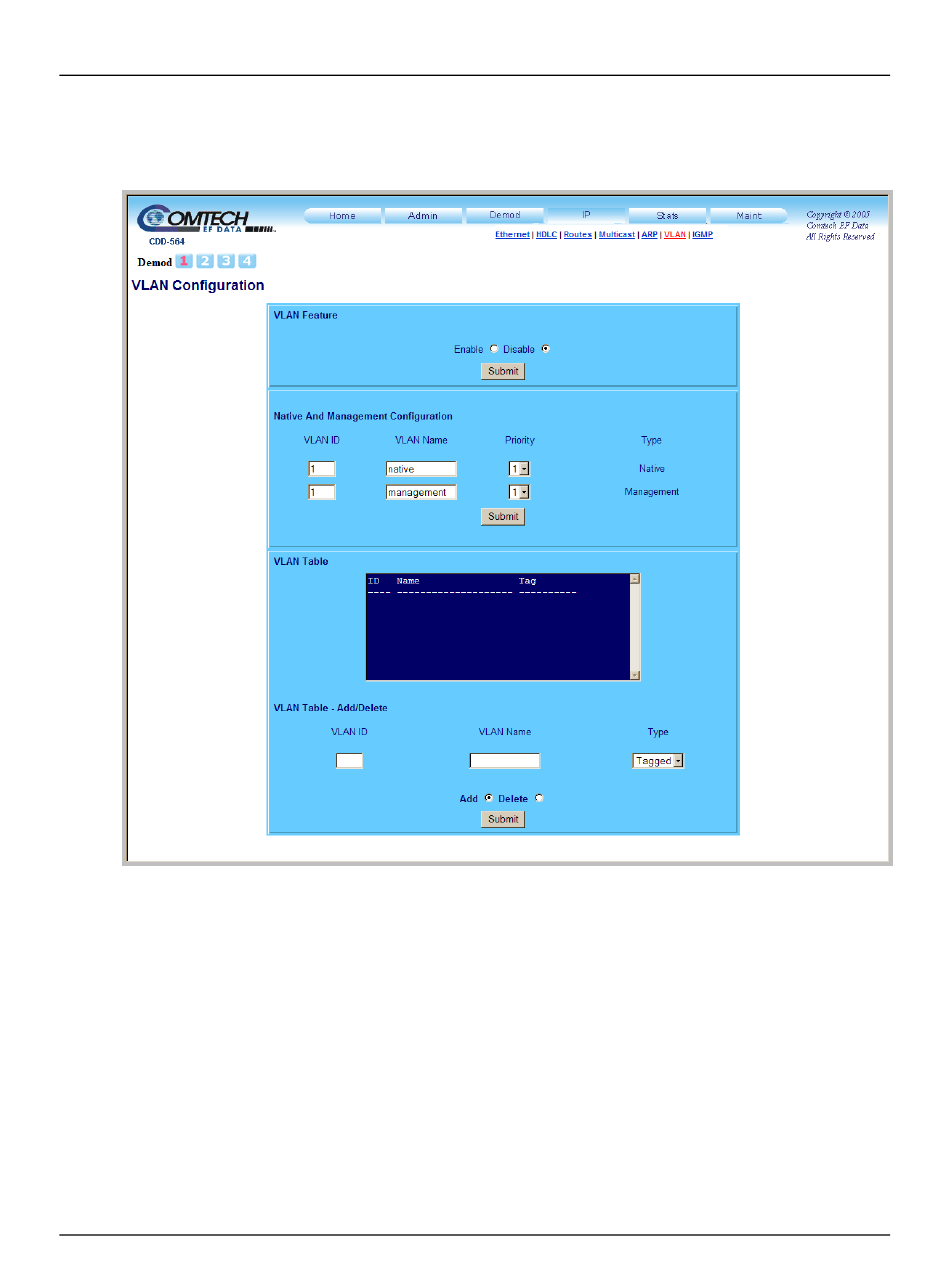

Figure 9-23. IP | VLAN page
