Page 1 CDD-562L/564 Demodulator with IP Module Installation and Operation Manual (Includes data for the CDD-562L, CDD-564, and CDD-564L Configurations) For Firmware Version 1.6.10 or higher IMPORTANT NOTE: The information contained in this document supersedes all previously published information regarding these products. Product specifications are subject to change without prior notice.
Page 3 (Includes data for the CDD-562L, CDD-564, and CDD-564L Configurations) For Firmware Version 1.6.10 or higher Part Number MN/CDD564L.IOM Revision 2 Copyright © 2012 Comtech EF Data. All rights reserved. Printed in the USA. Comtech EF Data, 2114 West 7th Street, Tempe, Arizona 85281 USA, 480.333.2200, FAX: 480.333.2161...
Page 4 This page is intentionally blank.
Page 5: Table Of Contents
Warranty Policy ............................. xviii Limitations of Warranty ............................xviii Exclusive Remedies ..............................xix Getting Help .............................. xx Contacting Comtech EF Data ........................... xx Returning a Product for Upgrade or Repair ......................xxi CHAPTER 1. INTRODUCTION ..................... 1–1 1.1 Overview ............................1–1 ...
Page 6: Table Of Contents
CDD-56X Cable Connections ..................... 3–2 3.2.1 Rx IF Connections ..........................3–3 3.2.1.1 CDD-562L and CDD-564L L-Band Chassis Rx Input ..............3–3 3.2.1.2 CDD-564 70/140 MHz Chassis Rx Input..................3–3 3.2.2 Terrestrial Data Connection – 10/100 Ethernet (RJ-45 Traffic/M&C Port) ........3–4 ...
Page 7 CDD-562L/564 Demodulator with IP Module Revision 2 Table of Contents MN/CDD564L.IOM 3.3.3 48V Direct Current (DC) Power Interface (Optional) ................ 3–9 3.3.3.1 DC Operation – Applying Power ....................3–9 3.3.3.2 DC Operation – Replacing Fuses ....................3–10 CHAPTER 4. IP MODULE ETHERNET INTERFACE ............4–1 ...
Page 8 CDD-562L/564 Demodulator with IP Module Revision 2 Table of Contents MN/CDD564L.IOM 6.3 SNMP Interface ........................... 6–1 6.3.1 Management Information Base (MIB) Files ..................6–2 6.3.2 SNMP Community Strings ........................6–2 6.3.3 SNMP Traps ............................6–3 6.3.4 MIB-II ..............................6–4 6.3.5 ...
Page 9 CDD-562L/564 Demodulator with IP Module Revision 2 Table of Contents MN/CDD564L.IOM 7.2.4 Serial Console Port Command Line Interface (CLI) Configuration ..........7–3 7.2.5 Restoring Factory Default Configuration .................... 7–5 7.3 Router Mode – Point-to-Point System Configuration ............. 7–6 7.3.1 PC Configuration ..........................7–6 ...
Page 10 CDD-562L/564 Demodulator with IP Module Revision 2 Table of Contents MN/CDD564L.IOM 8.2.7.4 Features page ..........................8–37 8.2.7.5 Utilities page ........................... 8–38 8.2.8 Operations and Maintenance page ..................... 8–39 8.2.8.1 Unit Information page ........................8–41 8.2.8.2 Statistics Menu page ........................8–42 ...
Page 11 CDD-562L/564 Demodulator with IP Module Revision 2 Table of Contents MN/CDD564L.IOM 9.3.5 Stats Pages ............................9–34 9.3.5.1 Stats | Ethernet ..........................9–34 9.3.5.2 Stats | IP ............................9–35 9.3.5.3 Stats | WAN ............................ 9–36 9.3.6 Maint (Maintenance) pages ........................ 9–37 ...
Page 12 Table B-1. Turbo Product Coding Processing Delay Comparison ............B–2 Table B-2. Turbo Product Coding Summary ..................B–3 FIGURES Figure 1-1. CDD-562L L-Band Satellite Dual Demodulator ..............1–1 Figure 1-2. CDD-564/564L 70/140 MHz / L-Band Satellite Quad Demodulators ........1–1 Figure 1-3. CDD-5xx Block Diagrams ..................... 1–4 Figure 1-4.
Page 13 Figure B-2. Comtech EF Data Turbo Product Codec Rate 7/8 QPSK(OQPSK) , 8-PSK, and 16-QAM ................................B–5 Figure B-3. Comtech EF Data Turbo Product Codec Rate 21/44 QPSK, Rate 0.95 QPSK, and Rate 0.95 8-PSK ............................... B–6 Figure D-1. CDM/CDD NMCS Basic Architecture Layout ..............D–2...
Page 14 CDD-562L/564 Demodulator with IP Module Revision 2 Table of Contents MN/CDD564L.IOM This page is intentionally blank.
Page 15: Preface
PREFACE About this Manual This manual provides installation and operation information for the Comtech EF Data CDD-562L (L-Band) Dual, CDD-564 (70/140 MHz) Quad, and CDD-564L (L-Band) Quad Demodulator with IP Module. The demodulators include support for externally connected Low-Noise Block Downconverters (LNBs).
Page 16: Patents And Trademarks
Patents and Trademarks See all of Comtech EF Data's Patents and Patents Pending at http://patents.comtechefdata.com. Comtech EF Data acknowledges that all trademarks are the property of the trademark owners. Metric Conversion Metric conversion information is located on the inside back cover of this manual. This information is provided to assist the operator in cross-referencing non-metric to metric conversions.
Page 17: Electrical Installation
The installation and connection to the line supply must be made in compliance to local or national wiring codes and regulations. The CDD-562L/564 is shipped with a line inlet cable suitable for use in the country of operation. If it is necessary to replace this cable, ensure the replacement has an equivalent specification.
Page 18: European Union Low Voltage Directive (Lvd) (2006/95/Ec)
CDD-562L/564 Demodulator with Optional IP Module Revision 2 Preface MN/CDD564L.IOM • EN 55024 – Information Technology Equipment: Immunity Characteristics, Limits, and Methods of Measurement. • EN 61000-3-2 – Harmonic Currents Emission • EN 61000-3-3 – Voltage Fluctuations and Flicker. •...
Page 19: European Union Rohs Directive (2002/95/Ec)
In accordance with the European Union Telecommunications Terminal Equipment Directive 91/263/EEC, the unit should not be directly connected to the Public Telecommunications Network. CE Mark Comtech EF Data declares that the unit meets the necessary requirements for the CE Mark. xvii...
Page 20: Warranty Policy
The warranty does not apply to any part of a product that has been installed, altered, repaired, or misused in any way that, in the opinion of Comtech EF Data Corporation, would affect the reliability or detracts from the performance of any part of the product, or is damaged as the result of use in a way or with equipment that had not been previously approved by Comtech EF Data Corporation.
Page 21: Exclusive Remedies
A fixed charge established for each product will be imposed for all equipment returned for warranty repair where Comtech EF Data Corporation cannot identify the cause of the reported failure. Exclusive Remedies Comtech EF Data Corporation’s warranty, as stated is in lieu of all other warranties,...
Page 22: Getting Help
Be prepared to provide the product model number and its serial number. Contact Comtech EF Data Customer & Technical Support during normal business hours (Monday through Friday, 8 A.M. to 5 P.M Mountain Standard Time (MST)): For:...
Page 23: Returning A Product For Upgrade Or Repair
Data Customer Service (service@comtechefdata.com). Contact Comtech EF Data Customer & Technical Support by phone or fax. Pack the product in its original shipping carton and protective packaging. Ship the product back to Comtech EF Data. Shipping charges should be prepaid.
Page 24 CDD-562L/564 Demodulator with Optional IP Module Revision 2 Preface MN/CDD564L.IOM Notes: xxii...
Page 25: Chapter 1. Introduction

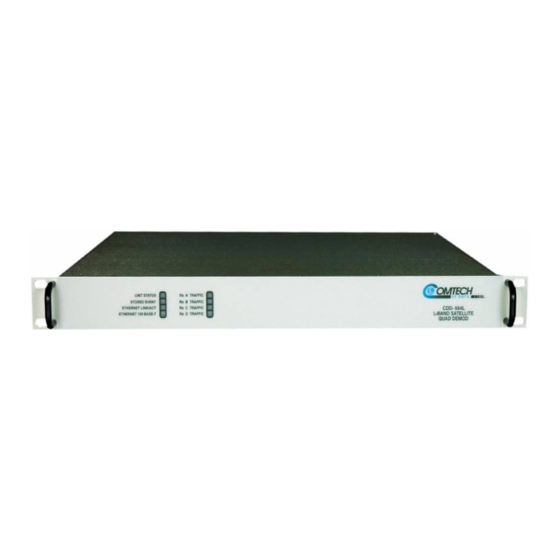

Chapter 1. INTRODUCTION Overview The CDD-562L (Figure 1-1) is a dual (2-channel) L-Band satellite demodulator. The CDD-564L (Figure 1-2) is a quad (4-channel) L-Band satellite demodulator; the CDD-564 is the 70/140 MHz IF version of the same demodulator; apart from the IF frequency band, these two demodulators are essentially identical.
Page 26 CDD-564/564L: Four independent demodulators • CDD-564: Demodulator programmed from 50–90, 100–180 MHz IF range (70./140 MHz) • CDD-562L/CDD-564L: Demodulators programmed from 950–1950 MHz (L-Band) • Optional: Variable data rates from 16 kbps to 9.98 Mbps • Optional: Rates above 512 kbps •...
Page 27: Functional Description
MN/CDD564L.IOM Functional Description The CDD-562L has two Rx channels. The CDD-564/564L have four Rx channels. The demodulators have two fundamentally different types of interface: Ethernet and IF. The Ethernet interface is a bidirectional path, which connects with the customer’s equipment through an Ethernet Switch.
Page 28: Figure 1-3. Cdd-5Xx Block Diagrams
CDD-562L/564 Demodulator with IP Module Revision 2 Introduction MN/CDD564L.IOM CDD-562L Block Diagram CDD-564/564L Block Diagram Figure 1-3. CDD-5xx Block Diagrams 1–4...
Page 29: Features
Interoperability/Compatibility The demodulator is interoperable with the Comtech EF Data CDM-570 and CDM-570L Satellite Modems populated with the optional IP Module/router, as well as other Comtech EF Data IP- enabled products (including modems and Performance Enhancement Proxies). The demodulator supports the functions associated with receive side of the equipment.
Page 30: Dimensional Envelopes
CDD-562L/564 Demodulator with IP Module Revision 2 Introduction MN/CDD564L.IOM 1.3.4 Dimensional Envelopes Figure 1-4. CDD-562L Dimensional Envelope 1–6...
Page 31: Figure 1-5. Cdd-564/564L Dimensional Envelope
CDD-562L/564 Demodulator with IP Module Revision 2 Introduction MN/CDD564L.IOM Figure 1-5. CDD-564/564L Dimensional Envelope 1–7...
Page 32: Physical Features
The LEDs indicate, in a summary fashion, the status of the unit: • Overall Unit Status • Stored Event • Ethernet Link Activity • 10BaseT or 100BaseT Ethernet Activity • Traffic Status for each of the two (CDD-562L) or four (CDD-564/564L) Rx Traffic (receive) channels 1–8...
Page 33: Rear Panel
CDD-562L/564 Demodulator with IP Module Revision 2 Introduction MN/CDD564L.IOM 1.3.5.2 Rear Panel Chapter 3. REAR PANEL CONNECTORS PINOUTS CDD-562L CDD-564 CDD-564L Figure 1-7. Rear Panel Views Figure 1-7 shows the rear panels of the demodulators. External cables are attached to connectors on...
Page 34: Data Interfaces
These unique Fast Access Codes may be purchased from Comtech EF Data during normal business hours, and then loaded into the unit using either the serial/Telnet CLI (connected to the rear panel “Remote control” port) or the unit’s Web Server (HTTP) Interface.
Page 35 MN/CDD564L.IOM configuration of the unit. The unique, register-specific FAST Access Code that is purchased from Comtech EF Data enables configuration of the available hardware. FAST Accessible Options Hardware options for basic demodulators can be ordered and installed either at the factory or in the field.
Page 36: Summary Of Specifications
CDD-562L/564 Demodulator with IP Module Revision 2 Introduction MN/CDD564L.IOM Summary of Specifications 1.4.1 Demodulator 1.4.1.1 70/140 MHz (CDD-564 only) System Specification Frequency Range 50 to 90 or 100 to 180 MHz, 100 Hz resolution Symbol Rate Range 16 ksps to 3.0 Msps...
Page 37: L-Band (Cdd-562L, Cdd-564L)
CDD-562L/564 Demodulator with IP Module Revision 2 Introduction MN/CDD564L.IOM 1.4.1.2 L-Band (CDD-562L, CDD-564L) System Specification Frequency Range 950 to 1950 MHz Symbol Rate Range 16 ksps to 3.0 Msps Data Rate Range Each demodulator independently in 1 bps increments Rate 3/4 QPSK TPC 16 kbps to 4.5 Mbps...
Page 38: Low Noise Block Converter (Lnb) Support (Cdd-564L Only)
CDD-562L/564 Demodulator with IP Module Revision 2 Introduction MN/CDD564L.IOM 1.4.2 Low Noise Block Converter (LNB) Support (CDD-564L only) Parameters Specifications LNB Voltage +13 volts, +18 volts, and +24 volts DC or OFF at 500 mA max per Rx input 10 MHz Reference -3 dBm ±...
Page 39: Ber (Bit Error Rate)
CDD-562L/564 Demodulator with IP Module Revision 2 Introduction MN/CDD564L.IOM 1.4.5 BER (Bit Error Rate) IMPORTANT NOTE: Starting with Release 1.4.1 of the CDM-570/570L firmware, the maximum symbol rate has been increased from 2.5 to 3.0 Symbol/sec. This has been done without modification to the hardware and as a consequence there may be a small degradation in BER versus Eb/No performance for rates above 2.5 Msymbols/sec.
Page 40 CDD-562L/564 Demodulator with IP Module Revision 2 Introduction MN/CDD564L.IOM Notes: 1–16...
Page 41: Chapter 2. Installation And Startup
Chapter 2. INSTALLATION and STARTUP Unpacking and Inspecting the Shipment Figure 2-1. Unpacking and Inspecting the Shipment The CDD-56X Satellite Demodulator with IP Module, its Installation and Operation Manual, and its power cord were packaged and shipped in a reusable cardboard carton containing protective foam spacing.
Page 42: Rack-Mounting The Cdd-56X
Check the packing list to ensure the shipment is complete. Inspect the equipment for any possible damage incurred during shipment. Contact the carrier and Comtech EF Data immediately to submit a damage report if damage is evident. Review the Installation and Operation Manual carefully to become familiar with operation.
Page 43: Figure 2-2. Installation Into A Rack Enclosure
CDD-562L/564 Demodulator with IP Module Revision 2 Installation and Startup MN/CDD564L.IOM Figure 2-2. Installation into a Rack Enclosure Mount the CDD-56X in its assigned position in the rack enclosure. Use, as required: • A standard rack-mounted shelf; • User-supplied screws to secure the front panel to the rack enclosure threaded front mounting rails;...
Page 44: 2.2.1 Installing The Optional Rear-Mounting Support Brackets Kit
CDD-562L/564 Demodulator with IP Module Revision 2 Installation and Startup MN/CDD564L.IOM 2.2.1 Installing the Optional Rear-Mounting Support Brackets Kit Detail Description Back of Unit Rack Enclosure Threaded Rear Mounting Rail (typical) Kit / Quantity Item Part Number Description KT/6228-2 KT/6228-3...
Page 45: Initial Configuration
Once the desired configuration settings have been made, proceed to connect all external cables to the connectors outlined in the next chapter (Chapter 3. REAR PANEL CONNECTORS PINOUTS). Should difficulties occur, call Comtech EF Data Customer Support for assistance. 2–5...
Page 46 CDD-562L/564 Demodulator with IP Module Revision 2 Installation and Startup MN/CDD564L.IOM Notes: 2–6...
Page 47: Chapter 3. Rear Panel Connector Pinouts
Chapter 3. REAR PANEL CONNECTOR PINOUTS CDD-56X Rear Panel Overview (Top) CDD-562L Dual Demodulator with IP Module (L-Band) (Center) CDD-564 Quad Demodulator with IP Module (70/140 MHz) (Bottom) CDD-564L Quad Demodulator with IP Modulator (L-Band) Figure 3-1. CDD-56X Rear Panel View...
Page 48: Cdd-56X Cable Connections
CDD-562L/564 Demodulator with IP Module Revision 2 Rear Panel Connections MN/CDD564L.IOM CDD-56X Cable Connections Table 3-1. Rear Panel External Cable Connections Connector Type Service Connector Sect. Connector Name Type Function CDD-562L CDD-564 CDD-564L (L-Band) (70/140 MHz) (L-Band) Rx 1 (Rx A on Type ’N’...
Page 49: Rx If Connections
The Rx IF input port connectors on the L-Band demodulators are 50Ω ‘N’ female types. Two connectors, labeled Rx1 and Rx2, are provided on the CDD-562L (shown at left), while four connectors labeled Rx A through Rx D are available on the CDD-564L (shown to the right).
Page 50: Terrestrial Data Connection - 10/100 Ethernet (Rj-45 Traffic/M&C Port)
Terrestrial Data Connection – 10/100 Ethernet (RJ-45 Traffic/M&C Port) The 10/100 BaseT Ethernet port is a standard 8-pin RJ-45 modular jack, It is used for Ethernet traffic, management of CDD-562L/564/564L IP Module functions via Telnet/HTTP/SNMP, and for updating of the demodulator’s IP Module firmware.
Page 51: Utility Connections
CDD-562L/564 Demodulator with IP Module Revision 2 Rear Panel Connections MN/CDD564L.IOM 3.2.3 Utility Connections 3.2.3.1 Remote Control (DB-9M) THIS CONNECTOR IS NOT A STANDARD EIA-232 INTERFACE. IT IS NOT INTENDED FOR CUSTOMER USE. IT IS INTENDED FOR FACTORY TEST USE ONLY.
Page 52: Cdd-56X Ground And Power Connections
CDD-562L/564 Demodulator with IP Module Revision 2 Rear Panel Connections MN/CDD564L.IOM CDD-56X Ground and Power Connections 3.3.1 Chassis Ground Interface PROPER GROUNDING PROTECTION IS REQUIRED. The equipment must be connected to the protective earth connection at all times. It is therefore imperative that the unit is properly grounded, using the ground stud provided on the unit rear panel, during installation, configuration, and operation.
Page 53: 240V Alternating Current (Ac) Power Interface (Standard)
CDD-562L/564 Demodulator with IP Module Revision 2 Rear Panel Connections MN/CDD564L.IOM 3.3.2 100V/240V Alternating Current (AC) Power Interface (Standard) Feature Description On / Off Switch Press-fit Fuse Holder IEC Three-prong Connector AC Power Specifications Input Power 40W maximum, 20W typical...
Page 54: Ac Operation - Replacing Fuses
CDD-562L/564 Demodulator with IP Module Revision 2 Rear Panel Connections MN/CDD564L.IOM 3.3.2.2 AC Operation – Replacing Fuses The CDD-56X uses two 5mm x 20mm Slow-blow fuses – one each for line and neutral connections. The fuses are contained within a fuse holder that is press-fit into the body of the IEC power module (located on the rear panel, Figure 3-5).
Page 55: Direct Current (Dc) Power Interface (Optional)
CDD-562L/564 Demodulator with IP Module Revision 2 Rear Panel Connections MN/CDD564L.IOM 3.3.3 48V Direct Current (DC) Power Interface (Optional) Feature Description On / Off Switch Plug-in Power Receptacle DC Power Specifications Input Power 48 watts (typical) 55 watts (maximum) ...
Page 56: Dc Operation - Replacing Fuses
CDD-562L/564 Demodulator with IP Module Revision 2 Rear Panel Connections MN/CDD564L.IOM 3.3.3.2 DC Operation – Replacing Fuses The CDD-56X uses two 5mm x 20mm Slow-blow fuses – one each for line and neutral connections. The fuses are contained within a fuse holder that is press-fit into the body of the DC power module (located on the rear panel, Figure 3-8).
Page 57: Chapter 4. Ip Module Ethernet Interface
Introduction For information specific to CDD-56X IP Module operation when deployed in a Vipersat system, please consult adjunct Comtech EF Data publication MN/22137 – Vipersat CDD-56X Series Satellite Network Demodulator Router User Guide. The CDD-562X Satellite Demodulator’s integral IP Module Ethernet Interface is intended for closed network Single Channel Per Carrier (SCPC) links.
Page 58: 10/100 Baset Ethernet Interface
EF Data’s website), or obtained through Comtech EF Data Customer Support via e-mail or on CD by standard mail delivery. Once acquired from Comtech EF Data, new firmware can be uploaded from the user PC by File Transfer Protocol (FTP) without opening the unit or having to be in the same physical location.
Page 59: Configuration Backup And Restore Via Ftp
LAN. Demodulator Features Appendix A. FAST ACTIVATION PROCEDURE Additional features can be added quickly on site to the CDD-56X by entering FAST Access Codes purchased from Comtech EF Data. FAST-accessible options include: • 3xDES Data Encryption •...
Page 60: 3Xdes Encryption With Ability To Change Keys
Header Compression Configuration – Header Compression is completely independent from QoS, and there is no configuration required except enabling the Header Compression feature on both the sending and receiving Comtech EF Data IP modem/demod. Packets with a Header Compression supported header will automatically be identified for compression. The only configuration consideration is the Header Compression Refresh Rate.
Page 61: Payload Compression
CDD-562L/564 Demodulator with IP Module Revision 2 IP Module Ethernet Interface MN/CDD564L.IOM 4.2.3 Payload Compression Traffic optimization through Payload Compression is another optional feature of the demodulator. • FAST feature to upgrade • Uses AHA© chip • Compression algorithm applied to all data (HDLC header excluded).
Page 62: Ip Module Specifications
Protocol (SNMP) 4.3.2 CDD562L/564/564L Compatibility The CDD-56X is compatible with other Comtech EF Data IP modems (referred to hereafter as CDM-IP), provided the modems have similar operating modes and IP options. The following is a list of compatible CDM-IP modems:...
Page 63: Typical Ip Module Operational Setups
1 byte, and Router/Large Network transmits 2 bytes as part of HDLC header for each packet. In the sections that follow, the functionality of these modes is described in further detail, in order to optimize the Comtech EF Data IP modems in the network, based upon Network Topology and Ethernet Traffic requirements.
Page 64 CDD-562L/564 Demodulator with IP Module Revision 2 IP Module Ethernet Interface MN/CDD564L.IOM The following table defines how these features are supported: Standard Features Additional Notes HDLC Address Mode Point-to-Point, Small Network, or Large Network Access Lists 4 Clients by IP or IP Subnet...
Page 65: Router Working Mode - Point-To-Point
IP Module Ethernet Interface MN/CDD564L.IOM 4.4.1.1 Router Working Mode – Point-to-Point Figure 4-1 shows an example setup using the CDD-562L L-Band Satellite Dual Demodulator at a Hub site to receive two separate DVB return channels. Note the following: • The CDD-562L and all CDM-IP modems are in Point-to-Point Mode.
Page 66: Figure 4-2. (Cdd-564/564L) Point-To-Point Router Working Mode Diagram
CDD-562L/564 Demodulator with IP Module Revision 2 IP Module Ethernet Interface MN/CDD564L.IOM Figure 4-2 shows an example setup using the CDD-564 (70/140 MHz) or CDD-564L (L-Band) Satellite Quad Demodulator at a Hub site to receive three separate DVB return channels.
Page 67: Router Working Mode - Point-To-Multipoint
Figure 4-3 shows a “Star Network” Point-to-Multipoint Configuration, where the Hub CDM-IP modem is transmitting a common STDMA carrier to two remote sites with CDM-IP modems. In turn, the Remote CDM-IP is transmitting a link back to the Hub that is received by the CDD-562L L-Band Satellite Dual Demodulator.
Page 68 CDD-562L/564 Demodulator with IP Module Revision 2 IP Module Ethernet Interface MN/CDD564L.IOM Figure 4-4 shows a “Star Network” Point-to-Multipoint Configuration where the Hub CDM-IP modem is transmitting a common STDMA carrier to three remote sites with CDM-IP modems. In turn, the Remote CDM-IP is transmitting a link back to the Hub that is received by the CDD-564 (70/140 MHz) or CDD-564L (L-Band) Satellite Quad Demodulator.
Page 69 CDD-562L/564 Demodulator with IP Module Revision 2 IP Module Ethernet Interface MN/CDD564L.IOM Each CDM-IP modem would select the HDLC address associated with its site as an Rx HDLC Address. Therefore: • Both the Hub CDM-IP modem and CDD-564L would have 0x01 as the first RX HDLC Address •...
Page 70 CDD-562L/564 Demodulator with IP Module Revision 2 IP Module Ethernet Interface MN/CDD564L.IOM Notes: 4–14...
Page 71: Chapter 5. Updating Firmware
This makes the firmware update process very simple. Firmware update archive files may be downloaded from the Internet (from Comtech EF Data’s website), or obtained through Comtech EF Data Customer Support via e-mail or on CD by standard mail delivery.
Page 72 CDD-562L/564 Demodulator with IP Module Revision 2 Updating Firmware MN/CDD564L.IOM Feature Name (Specification) Connection to User PC Used for: 10/100 Ethernet CABLING: CAT5, user-supplied • Ethernet traffic to an available Ethernet port, via • Management of IP Module (BaseT Ethernet port – RJ-...
Page 73: About Firmware Files, Naming, Versions And Formats
Phone – 480.333.2433 E-mail – cdmipsupport@comtechefdata.com. The firmware download files are available from Comtech EF Data in two archive file formats: *.exe (self extracting) and *.zip (compressed). Some firewalls will not allow downloading of *.exe files; in this case, download the *.zip file instead. If applicable, one version prior to the current release is also available for download.
Page 74: Ethernet Ftp Upload Procedure
CDD-562L/564 Demodulator with IP Module Revision 2 Updating Firmware MN/CDD564L.IOM Ethernet FTP Upload Procedure 5.3.1 Getting Started: Preparing for the Firmware Download Step Task Connect the user PC to the CDD-56X 10/100 Ethernet port either via a hub or a switch or with a direct Ethernet cable connection, and connect the CDD-56X Console port (do NOT use the Remote Control port) to a serial port on the user PC using an adapter cable.
Page 75 CDD-562L/564 Demodulator with IP Module Revision 2 Updating Firmware MN/CDD564L.IOM Step Task C. Use Windows Command-line to create the temporary folder: (cont) • First, click [Start] on the Windows taskbar, and then click the Run... icon (or, depending on Windows OS versions prior to Windows 95, click the MS-DOS Prompt icon from the Main Menu).
Page 76: Downloading And Extracting The Firmware Update
D. On the Flash & Software Update Files page – select the (Select a Product Line) Modems hyperlink. E. On the Modems product page – select the CDD-564/L or CDD-562L product hyperlink. F. Select the appropriate firmware EXE or ZIP download hyperlink (i.e., without 3xDES) or contact CEFD Network Product Customer Support to obtain the download with 3xDES).
Page 77 CDD-562L/564 Demodulator with IP Module Revision 2 Updating Firmware MN/CDD564L.IOM Step Task Confirm availability of the firmware files in the temporary folder. There are a number of ways the user may view the contents of the temporary folder on a Windows-based PC: A.
Page 78: Bulk Firmware Ftp Upload Procedure
CDD-562L/564 Demodulator with IP Module Revision 2 Updating Firmware MN/CDD564L.IOM 5.3.3 Bulk Firmware FTP Upload Procedure Step Task Verify that: • The firmware update has been downloaded to the user PC and is available in the temporary folder, and •...
Page 79 CDD-562L/564 Demodulator with IP Module Revision 2 Updating Firmware MN/CDD564L.IOM Step Task Change the desired image to boot. By default, the demodulator will boot to the version with the latest date (Boot to – Latest). “Boot to” can also be set to force the demodulator to boot up using either Image #1 or Image #2.
Page 80 CDD-562L/564 Demodulator with IP Module Revision 2 Updating Firmware MN/CDD564L.IOM Notes: 5–10...
Page 81: Chapter 6. Ethernet-Based Remote Product Management
Chapter 6. ETHERNET-BASED REMOTE PRODUCT MANAGEMENT Introduction Ethernet-based Remote Product Management of the CDD-56X Satellite Demodulator with IP Module is available using the rear panel RJ-45 10/100 BaseT Ethernet M&C port. This chapter summarizes the functionality of this interface and references other chapters for further details. Ethernet Management Interface Protocols A user-supplied PC facilitates access to Ethernet-based remote monitor and control (M&C) of the CDD-56X through three separately-operated protocols:...
Page 82: Management Information Base (Mib) Files
The following MIB files are associated with the CDD-56X: MIB File/Name Description (where * is revision letter) FW11669-2*.mib ComtechEFData MIB file gives the root tree for ALL Comtech EF Data products and consists of only the following OID: ComtechEFData MIB file Name: comtechEFData OID: 1.3.6.1.4.1.6247 Path: iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).comtechEFData(6247)
Page 83: Snmp Traps
MN/CDD564L.IOM 1. For proper SNMP operation, the CDD-56X MIB files must be used with the associated version of the demodulator M&C. See the CDD-562L/ 564/564L FW Release Notes for information on the required FW/SW compatibility. 2. Maximum number of characters for community strings shall not exceed 20. All printable ASCII characters, except ’\’...
Page 84: Mib-Ii
CDD-562L/564 Demodulator with IP Module Revision 2 Ethernet-based Remote Product Management MN/CDD564L.IOM 6.3.4 MIB-II The demodulator agent implements RFC 1213, Management Information Base for Network Management of TCP/IP-based Internets. This is known as “MIB-II” or “Public MIB support.” For detailed OID information please see the actual MIB file. The agent implements the following Groups: Table 6-1.
Page 85: 3Xdes Decryption Subgroup
This subgroup sets up the unit to use a SMTP mail server to send a problem report back to Comtech EF Data Modem Support. Along with the problem report, the unit sends the equipment serial number and configuration, which is attached to the e-mail message. By default, the problem report is sent to: cdmipsupport@comtechefdata.com.
Page 86: Igmp Subgroup
CDD-562L/564 Demodulator with IP Module Revision 2 Ethernet-based Remote Product Management MN/CDD564L.IOM 6.3.5.4.1 IGMP Subgroup This subgroup controls the IGMP, Internet Group Management Protocol, which is the standard for IP multicasting in the Internet. 6.3.5.5 Maintenance Group This group contains several miscellaneous operations for the demodulator, including the unit information, bulk database configuration (allows the user to define which image to boot from and into which image to save a new bulk file), and IP PARAM file configuration.
Page 87: Alarm Mask Parameters
CDD-562L/564 Demodulator with IP Module Revision 2 Ethernet-based Remote Product Management MN/CDD564L.IOM 6.3.5.7.2 Alarm Mask Parameters This section allows the user to mask the AGC, Eb/No, and LNB alarms. 6.3.5.7.3 Reference Parameters This section allows the user to change the internal reference adjustment.
Page 88: Telnet Interface
Chapter 8. IP MODULE CLI AND TELNET OPERATION. 2. Equipment M&C via Comtech EF Data’s CDM/CDD NMCS application and associated Remote Control protocol. For further details about using this application, see Appendix D. CDM/CDD NMCS PROTOCOL.
Page 89 FRW? query) will be displayed as one line, with the latter lines overwriting the previous lines. In order to view the full response messages, Comtech EF Data recommends use of the HyperTerminal terminal emulation program, configured as a Telnet client.
Page 90: Http (Web Server) Interface
CDD-562L/564 Demodulator with IP Module Revision 2 Ethernet-based Remote Product Management MN/CDD564L.IOM HTTP (Web Server) Interface A user-supplied web browser allows the full monitor and control (M&C) of the CDD-56X from its HTTP Interface. The CDD-56X embedded web application is designed for, and works best with, Microsoft’s Internet Explorer Version 6.0 or higher.
Page 91 CDD-562L/564 Demodulator with IP Module Revision 2 Ethernet-based Remote Product Management MN/CDD564L.IOM 6.5.1.2 Navigation This manual uses a naming format for all web pages to indicate the depth of navigation needed to view the referenced page: “Top Level Tab | Page Hyperlink”...
Page 92 CDD-562L/564 Demodulator with IP Module Revision 2 Ethernet-based Remote Product Management MN/CDD564L.IOM 6.5.1.6 Text or Data Entry Text boxes are provided any time an alphanumeric entry is required for access or configuration. Move the cursor to the text box, and then left-click anywhere inside the box.
Page 93: Chapter 7. Quick Start Guide
This chapter assumes user familiarity with the configuration and the operation of both the CDM-IP modem and the CDD-56x demodulator. Use this chapter to quickly configure a pair of Comtech EF Data IP-compatible modems (referred to hereafter as the CDM-IP modems) using a CDD-56X as the demodulator.
Page 94: Getting Started
CDD-562L/564 Demodulator with IP Module Revision 2 Quick Start Guide MN/CDD564L.IOM Getting Started 7.2.1 Equipment List Item Description Qty Comments CDM-IP modems (e.g., CDM-IP550, Depending upon the modems used, the user may CDM-IP300L, CDM-570/570L w/IP need to provide equipment to convert 70 MHz IF to Module, etc.)
Page 95: 7.2.3 Transmit And Receive If Configuration
CDD-562L/564 Demodulator with IP Module Revision 2 Quick Start Guide MN/CDD564L.IOM 7.2.3 Transmit and Receive IF Configuration Step Task Configure the transmit and receive IF parameters for CDM-IP 1, CDM-IP 2, and the CDD-56X Demod 3 via the modem front panel.
Page 96 CDD-562L/564 Demodulator with IP Module Revision 2 Quick Start Guide MN/CDD564L.IOM Figure 7-1. CLI Main Menu via Telnet or HyperTerminal (CDD-56X shown) 7–4...
Page 97: 7.2.5 Restoring Factory Default Configuration
CDD-562L/564 Demodulator with IP Module Revision 2 Quick Start Guide MN/CDD564L.IOM 7.2.5 Restoring Factory Default Configuration The remaining sections in this chapter assume that the CDM-IP is still in factory default configuration for IP. If this is not the case, the factory default configuration may be restored from...
Page 98: Router Mode - Point-To-Point System Configuration
CDD-562L/564 Demodulator with IP Module Revision 2 Quick Start Guide MN/CDD564L.IOM Router Mode – Point-to-Point System Configuration The steps in this section are used to establish a Router Mode Point-to-Point System Configuration. Note that all steps outlined in the subsections that follow refer back to Figure 7-2.
Page 99: 7.3.2 Set Cdm-Ip Modems To Router Mode Operation
CDD-562L/564 Demodulator with IP Module Revision 2 Quick Start Guide MN/CDD564L.IOM 7.3.2 Set CDM-IP Modems to Router Mode Operation Perform the following steps on Satellite Modems (CDM-IP) 1 and (CDM-IP) 2: Step Description Beginning with the CDM-IP 1 modem: From the CLI Main Menu, select the Administration [A] submenu.
Page 100: 7.3.3 Set Cdd-56X Demodulator To Router Mode Operation
CDD-562L/564 Demodulator with IP Module Revision 2 Quick Start Guide MN/CDD564L.IOM 7.3.3 Set CDD-56X Demodulator to Router Mode Operation Perform the following steps on Satellite Demodulator (CDD-56X) 3: Step Description From the CLI Main Menu, select the Administration [A] submenu.
Page 101: Set Ip Address(Es)
CDD-562L/564 Demodulator with IP Module Revision 2 Quick Start Guide MN/CDD564L.IOM 7.3.4 Set IP Address(es) Step Task From the CLI Main Menu, select Network Interface Configuration submenu [ I ]. From the Interface Configuration Menu, select Ethernet Interface submenu [E].
Page 102 CDD-562L/564 Demodulator with IP Module Revision 2 Quick Start Guide MN/CDD564L.IOM Enter ‘1’ to configure the first route. Enter a suitable name (e.g., ‘test’) Set IP Address to ‘172.16.10.0’ Set Number of Subnet Bits to ‘24’. For Interface to which route is destined to <E-Ethernet S-Satellite Enter : S>...
Page 103: Troubleshooting The Ip Module
CDD-562L/564 Demodulator with IP Module Revision 2 Quick Start Guide MN/CDD564L.IOM Ping CDM-IP 2 from PC 1 and vice versa; Pass any other data between PC 1 and PC 2: ► From PC 1: o Ping 172.16.10.1 (CDM-IP 1) o Ping 172.16.10.2 (CDD-56X DEMOD 3) o Ping 172.17.10.2 (CDM-IP 2)
Page 104: 7.4.1 Router Mode Troubleshooting
CDD-562L/564 Demodulator with IP Module Revision 2 Quick Start Guide MN/CDD564L.IOM 7.4.1 Router Mode Troubleshooting Use the following troubleshooting steps if unable to successfully send traffic in Router Mode. Router Mode Troubleshooting Step Problem Action No ping response from the locally...
Page 105 Chapter 8. CDD-56X CLI TELNET OPERATION Overview The CLI (Command Line Interface) is a user menu system that facilitates configuration, monitoring and control of the CDD-56X Satellite Demodulator with IP Module. This interface is accessible with a user-provided terminal emulator application such as HyperTerminal, or over the Ethernet interface using Telnet.
Page 106: Chapter 8. Cdd-56X Cli And Telnet Operation
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.1.1 Interface Access 1. The demodulator does not allow concurrent access to the menu via Telnet and the Console port. If the user connects via Telnet, the demodulator automatically disables the Console port for the duration of the Telnet session.
Page 107: Cli Menu
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM CLI Menu Pages Interface Appearance – The remaining sections in this chapter show CLI pages as they appear with the user-supplied HyperTerminal terminal emulator application. The appearance of this interface may vary across individual user configurations.
Page 108 CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Telnet Logout Option – When operating the demodulator through a Telnet-based CLI session, an additional means of ending a session is available on all menu pages – the Telnet Logout option, executed by typing ‘L’:...
Page 109: 8.2.1 Main Menu Page
Viewable/selectable only when the demodulator is used in a Vipersat system. For details on configuration and use of the CDD-56X Vipersat feature, consult adjunct Comtech EF Data publication MN/22137 – Vipersat CDD-56X Series Satellite Network Demodulator Router User Guide. Satellite Demod Configuration Allows configuration and monitoring of the satellite base unit.
Page 110: Administration Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Administration page Access the Administration page from the Main Menu page. Access to the Administration page is restricted to the Admin user when connecting via the Telnet, SNMP, or HTTP interface. The Administration page is available when connected via the Terminal Emulator (serial) connection because there is no login.
Page 111: Name/Password Configuration Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Selection Entry Description Managed Switch Multicast Option Selectable only when Managed Switch is the selected Working Mode: Allows user to enable or disable the ability to route multicast IP traffic over the satellite or to another device on the local LAN.
Page 112: Access Lists Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.2.2 Access Lists page Access the Access Lists page from the Administration page. If connecting to the IP modem (or demodulator) remotely, the IP address of the machine used to manage the IP modem should be included in the Access List.
Page 113: Feature Configuration Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.2.3 Feature Configuration page • Chapter 1. INTRODUCTION • Appendix A. FAST ACTIVATION PROCEDURE Access the Feature Configuration from the Administration page to display the current availability for each feature.
Page 114 FAST Feature Code Allows the entry of a FAST Option Pruchase Access Code that has been provided by the Comtech EF Data Sales Representative upon purchase of a specific option/upgrade. Vipersat Feature Codes...
Page 115: Triple Des Decrypt Configuration (Per Demod) Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Selection Entry Description LAN-to-LAN Routing When LAN-to-LAN Routing is enabled, packets ingress from LAN can be routed (egress) to the LAN port instead of sending the ICMP redirect message. If selected, the user is prompted with the following message: “Configuring LAN-to-LAN Routing disables the...
Page 116 CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Selection Entry Description Receive Key 1 These 3xDES keys are used to decrypt traffic being received from the Satellite Interface. The key is entered in HEX format (48 digits...
Page 117: Smtp Configuration Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.2.5 SMTP Configuration page Access the SMTP Configuration page from the Administration page. Use this page to specify appropriate settings for Simple Mail Transfer Protocol e-mail server.
Page 118: Snmp Configuration Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.2.6 SNMP Configuration page Access the SNMP Configuration page from the Administration page. Use this page to specify management parameters for Simple Network Management Protocol. This page contains the following unique selections/fields:...
Page 119: Working Mode
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Selection Entry Description SNMP System Location User-defined SNMP Location information. SNMP Stats Displays statistics concerning the operation of the SNMP agent (number of IN SNMP packets, number of OUT SNMP packets, number of OUT Traps, etc.)
Page 120: 8.2.3 Interface Configuration Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.3 Interface Configuration page Access the Interface Configuration page from the Main Menu page. This page contains the following unique selections/fields: Selection Entry Description Ethernet Interface Opens Ethernet Interface page.
Page 121: Ethernet Interface Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.3.1 Ethernet Interface page Access the Ethernet Interface page from the Interface Configuration page. This page contains the following unique selections/fields: Selection Entry Description MAC Address [RO]...
Page 122: Satellite/Hdlc Interface Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.3.2 Satellite/HDLC Interface page Access the Satellite/HDLC Interface page from the Interface Configuration page. This page contains the following unique selections/fields: Selection Entry Description HDLC Addr Mode [RO] •...
Page 123: Receive Hdlc Addresses (Per Demod) Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.3.2.1 Receive HDLC Addresses (Per Demod) page Access the Receive HDLC Addresses (Per Demod) page from the Satellite/HDLC Interface page. Use this page to define up to four HDLC addresses per receive channel that can carry user information on the Satellite Interface.
Page 124: 8.2.4 Route Table Configuration Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.4 Route Table Configuration page Access the Route Table Configuration page from the Main Menu page. Do not operate a CDM-IP modem satellite link where both IP modems have a Default Route to the satellite.
Page 125 CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Selection Entry Description Optionally: If entering a multicast address (224.0.0.0-239.255.255.255) as the destination IP address, then the following parameters will be requested: Route Multicast packets from Satellite to Ethernet? [y/n] The option Allows user to specify if multicast packets that match the provided IP address will be routed from the Satellite to Ethernet.
Page 126: 8.2.5 Protocol Configuration Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.5 Protocol Configuration page Access the Protocol Configuration page from the Main Menu page. This page contains the following unique selections/fields: Selection Entry Description IGMP Opens IGMP Information page.
Page 127: Igmp Information Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.5.1 IGMP Information page Access the IGMP information page from the Protocol Configuration page. Use this page to view the IGMP clients that are actively listening to content being provided by the demodulator.
Page 128: Arp Table Utilities Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.5.2 ARP Table Utilities page Access the ARP Table Utilities page from the Protocol Configuration page. Use this page to view and edit the ARP table defined by the demodulator. It allows up to 256 static IP MAC ARP entries.
Page 129 CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Selection Entry Description Flush ARP Table Allows the entire ARP table [Dynamic Entries] to be removed. This is equivalent to performing the standard UNIX command “arp –d” on each address reported in an “arp –a”...
Page 130: Vlan) Brouter Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.5.3 (VLAN) Brouter page Access the Brouter Configuration page from the Protocol Configuration page. This page contains the following unique selections/fields: Selection Entry Description Toggle VLAN Brouter Mode as [Enabled] or [Disabled]. This feature allows VLAN tagged packets to be forwarded when in Router mode.
Page 131: 8.2.6 Vipersat Configuration Page
CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.6 Vipersat Configuration page Comtech EF Data publication MN/22137 – Vipersat CDD-56X Series Satellite Network Demodulator Router User Guide. This page and its operations are functional only when the demodulator is used in a Vipersat Management System (VMS).
Page 132: 8.2.7 Satellite Demod Configuration Page
Access the Satellite Demodulator page from the Main Menu page. This page contains the following unique selections/fields: Selection Entry Description Modem Type [RO] Displays the unit type in use – i.e., CDD-562L, CDD-564L, etc. Configuration Opens Receive Configuration page. Monitor Opens Monitor page. Features Opens Features page.
Page 133: Configuration Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.7.1 Configuration page Access the Configuration page from the Satellite Demodulator page. This page contains the following unique selections/fields: Selection Entry Description Rx Configuration (Per Demod) Opens Rx Configuration (Per Demod) page.
Page 134: Rx Configuration (Per Demod) Page
Selection Entry Description Frequency CDD-562L/CDD-564L (L-Band): Valid ranges for Rx Frequency are from 950 to 1950 MHz. Data Rate Valid range for Rx Data Rate is from 2.4 kbps to 9980 kbps. Note: High data rate [>5000Kbps] is a FAST Feature to be purchased...
Page 135: Alarm Masks Configuration (Per Demod) Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Selection Entry Description Descrambling Select one of the following: 1 – Off 2 – On-Default 3 – On-IESS-315 Acquisition Range Valid ranges are from 0 to 200 kHz: •...
Page 136: Lnb Configuration (Per Lnb) Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.7.1.3 LNB Configuration (Per LNB) page Access the LNB Configuration (Per Demod) page from the Configuration page. Note that all parameters on this page are configurable on a per-LNB basis (as determined via Demod Select).
Page 137: Monitor Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.7.2 Monitor page Access the Monitor page from the Satellite Demodulator page. This page contains the following unique selections/fields: Selection Entry Description Rx Parameters Opens Receive Parameters (Per Demod) page.
Page 138: Rx Parameters Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.7.2.1 Rx Parameters page Access the Rx Parameters page from the Monitor page. This read-only page provides, in a summary fashion, the following functional status indicators or operating statistics on a per-Demod basis: •...
Page 139: Stored Events (Per Demod) Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.7.2.2 Stored Events (Per Demod) page Access the Stored Events (Per Demod) page from the Monitor page. This page contains the following unique selections/fields: Selection Entry Description Displays the number of events not yet viewed.
Page 140: Link Statistics (Per Demod) Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.7.2.3 Link Statistics (Per Demod) page Access the Link Statistics (Per Demod) page from the Monitor page. This page contains the following unique selections/fields: Selection Entry Description...
Page 141: Information Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.7.3 Information page Access the Information page from the Satellite Demodulator page. This read-only page displays the current operating parameters for the serial remote control port that is configured for use with the interface to the CLI.
Page 142: Utilities Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.7.5 Utilities page e Utilities page from the Satellite Demodulator page. Access th This page contains the following unique selections/fields: Selection Entry Description Time Allows user to set the Time on the Unit, in 24-Hour Format, as...
Page 143: 8.2.8 Operations And Maintenance Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.8 Operations and Maintenance page Access the Operations and Maintenance page from the Main Menu page. This page contains the following unique selections/fields: Selection Entry Description Unit Up Time...
Page 144 CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Selection Entry Description PARAM Image Identifies the PARAM file that will be loaded on bootup. The options are: Factory – Uses the internal, hard-coded factory default parameters.
Page 145: Unit Information Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.8.1 Unit Information page Access the Unit Information page from the Operations and Maintenance page. The M&C (Monitor & Control) Interface (option ‘F’ on this page) is reserved for CEFD test &...
Page 146: Statistics Menu Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Information Displayed… Description Type/Date – Time/Name/Rev/Len Displays the date/time that the PARAM1 file was last PARAM updated/saved. This also shows what user interface was used to update/save the PARAM file last time. Note the following: •...
Page 147: Ip Statistics Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.8.2.1 IP Statistics page Access the IP Statistics page from the Statistics Menu page. This page tallies the number of packets routed or dropped in the IP Module. This page contains...
Page 148: 8.2.8.2.1.1 Filter/Drop Statistics Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.8.2.1.1 Filter/Drop Statistics page Access the Filter/Drop Statistics page from the Statistics Menu | IP Statistics page. This read-only page tallies the number of packets filtered or dropped in the IP Module. This page...
Page 149 CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Packet Item Description Filtered – Unknown Reason Packets dropping due to reasons were not listed here. Code Packet are filtered due to improper establishing SAT-to-SAT traffic (This counter Filtered –...
Page 150 CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Packet Item Description Dropped – Bad IP Version Total Dropped IP Version 6 Packets (IP Module only supports IP Version 4). Total Dropped Packets due to Time To Live counter expired (TTL limits the Dropped –...
Page 151: Ethernet Statistics Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.8.2.2 Ethernet Statistics page Access the Ethernet Statistics page from the Statistics Menu page. This read-only page tallies the number of IP packets received from and sent to the Ethernet interface.
Page 152 CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Selection Description Rx Resource Error Count Displays count of good frames discarded due to unavailable resources. Rx FIFO Overrun Error Count Displays number of good frames discarded due to overflow of internal receive FIFO.
Page 153: Wan Statistics Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.8.2.3 WAN Statistics page Access the WAN Statistics page from the Statistics Menu page. This read-only page tallies the number of IP packets received from and sent to the Ethernet Interface.
Page 154: Vlan Statistics Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Additionally, management of the information reported on this page is provided: Selection Entry Description CLEAR Resets all WAN Statistics for this specific demodulator. 8.2.8.2.4 VLAN Statistics page Access the VLAN Statistics page from the Statistics Menu page.
Page 155: Event Log Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.8.2.5 Event Log page Access the Event Log page from the Operations and Maintenance page. Use this page to capture all IP Module events to a log. This page contains the following unique...
Page 156 CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM The full Event log file can be retrieved by FTP. Using the Admin-level login, type the command ‘get eventlog’ . The entire Event log can then be viewed with...
Page 157: Database Operations Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.8.3 Database Operations page Access the Database Operations page from the Operations and Maintenance page. The User Configuration File allows overwrite of the values defined in the Factory Configuration File.
Page 158: Diagnostics Page
CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM 8.2.8.4 Diagnostics page Access the Diagnostics page from the Operations and Maintenance page. When using Dump Packets Diagnostics Utilities: The Dump Packet Utilities will display a hexadecimal representation of each packet and should not be used when the demodulator is on a “live”...
Page 159 CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Selection Entry Description Dump Packets sent to Select [Yes] or [No]. EndStation Selecting [Yes] forces the IP Module to dump a hexadecimal representation of each packet that is received/destined for the demodulator only.
Page 160 CDD-562L/564 Demodulator with IP Module Revision 2 CDD-56X CLI and Telnet Operation MN/CDD564L.IOM Notes: 8–56...
Page 161: Overview
Chapter 9. CDD-56X HTTP (WEB SERVER) INTERFACE Overview This chapter describes the functionality of the CDD-56X Satellite Demodulator with IP Module’s HTTP (Web Server) Interface. This non-secure interface complements operation of the CDD-56X’s use of the serial-based Command Line Interface (CLI) as well as remote control commands and queries via the Telnet-based network management interface.
Page 162: Interface Menu Tree And Splash Page
Depending on the unit in use and the number of configured modulators on that unit, this page provides the means to control and monitor up to four Low-Noise Block Downcoverters (LNBs), on a per-demod basis, when connected to the CDD-562L/ 564L.
Page 163: Selecting Demodulators
Figure 9-1. HTTP Interface “Splash” page 9.2.3 Selecting Demodulators Two demodulator channels are available for selection on each page of the CDD-562L HTTP Interface. Four demodulator channels are available on the CDD-564/564L HTTP Interface pages. Select the individual demodulator channel...
Page 164: Http Interface
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM HTTP Interface Page Descriptions Refer to the chapter sections listed here for detailed information about the web pages that are accessble via nested hyperlink from the HTTP Interface top-level navigation tabs:...
Page 165: Home | Contact
HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.1.2 Home | Contact Use this page to obtain contact information for Comtech EF Data Sales and Service via phone or fax, or by clicking on the available e-mail hyperlinks. Figure 9-3. Home | Contact page 9–5...
Page 166: Home | Support
Use this communications portal for questions about or problems with the unit. Figure 9-4. Home | Customer Support page Contact Information Use this section to provide Comtech EF Data with your contact information. Problem Report Use this section to compose the required message – up to 256 characters maximum are permitted.
Page 167: Home | Logoff
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.1.4 Home | Logoff Use this page to formally disconnect from the HTTP Interface. Figure 9-5. Home | Logoff page At present, the demodulator only allows one connection to the CLI or the HTTP Interface. Click [Yes, Disconnect] when prompted to execute logoff from the session.
Page 168: Admin (Administrative)
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.2 Admin (Administrative) pages The Admin pages are available only if you have logged in using the Administrator Name and Password. The Administrator may use these pages to set up user names, passwords, the e-mail server, and the host IP Addresses as required to establish communication with the HTTP Interface.
Page 169: Admin | Mode
Router – Vipersat Mode For details on configuration and use of Vipersat operations via the HTTP Interface, consult adjunct Comtech EF Data publication MN/22137 – Vipersat CDD-56X Series Satellite Network Demodulator Router User Guide Managed Switch: Managed Switch Mode functions as a learning bridge with VLAN support.
Page 170: Admin | Access
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.2.3 Admin | Access Use this page to set up and maintain the user names, passwords, e-mail server, and host IP addresses as needed to facilitate communication with the HTTP Interface.
Page 171 CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM Host Access List • IP (#) / Mask: The Host Access List is used to define which remote clients can connect when the Access List is Enabled. Each entry allows a user to specify an IP address and a subnet mask to define a unique class of machines that are allowed access.
Page 172: Admin | Features
Select Enabled or Disabled from either drop-down list to set operation for Downlink Route All Available Multicast or L2 Rx Header Compression. Fast Option Purchase Fast Option Set: Enter the FAST Access Code obtained from Comtech EF Data into this field Appendix C. FAST ACTIVATION PROCEDURE Features – Optional Select Enabled or Disabled from the available drop-down lists to set operation for STDMA, Vipersat, IGMP, Auto Switching, or L3/L4/L5 RX Header Compression.
Page 173: Admin | Snmp
• Available – The FAST feature is activated and operational. • Unavailable – The FAST feature must be purchased. Contact Comtech EF Data to acquire the FAST Option Purchase Access Code required to activate the option. 9.3.2.5 Admin | SNMP Sect.
Page 174 Vipersat Management For details on configuration and use of Vipersat operations via the HTTP Interface, consult adjunct Comtech EF Data publication MN/22137 – Vipersat CDD-56X Series Satellite Network Demodulator Router User Guide Click [Submit] to execute the changes made on this page.
Page 175: Admin | Decryption
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.2.6 Admin | Decryption This page is accessible only when the 3xDES FAST feature has been purchased and its FAST Access Code has been entered. Sect. 6.2.2.4 Triple DES Decrypt Configuration (Per Demod) page in Chapter 8.
Page 176: Demod (Configure Demodulator)
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.3 Demod (Configure Demodulator) pages The ‘LNB’ hyperlink is available only on the CDM-562L/564L HTTP Interface. Click the Demod, Utilities, Status, Events, Statistics, or LNB hyperlink to continue.
Page 177 CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM Use the provided drop-down list to set operation for each of the following parameters: • • • Decoder Descrambling Rx Spectrum Inversion • • Rx Data Sense Inversion...
Page 178: Demod | Utilities
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.3.2 Demod | Utilities Use this page to configure the specified CDD-56X utility functions. Figure 9-13. Demod | Utilities page Date and Time • Enter a time using HH:MM:SS format (where HH = hour [00 to 23], MM = minutes [00 to 59], and SS = seconds [00 to 59]).
Page 179: Demod | Status
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.3.3 Demod | Status Use this page to view read-only information on a per-demod basis. Figure 9-14. Demod | Status page General Information • • • Circuit ID...
Page 180: Demod | Events
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.3.4 Demod | Events Use this page to review read-only Faults or Alarms (Events) as logged by the unit on a system- wide basis during the course of normal operation.
Page 181: Demod | Statistics
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.3.5 Demod | Statistics Use this page to review read-only operating Statistics as logged by the unit on a per-demod basis during the course of normal operation. Figure 9-16. Demod | Statistics page Demodulator Statistics Log: Click [Clear Statistics Log] to delete all existing entries from the Demodulator Statistics Log.
Page 182: Demod | Lnb
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.3.6 Demod | LNB The ‘LNB’ hyperlink is available only on the CDM-562L/564L HTTP Interface. Depending on the unit in use and the number of configured modulators on that unit,...
Page 183: Ip | Ethernet
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.4 IP pages The hyperlinks available under the ‘IP’ tab provide the user access to all functionality associated with Ethernet operation. Click the Ethernet, HDLC, Routes, Multicast, ARP, VLAN, or IGMP hyperlink to continue.
Page 184 CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM VLAN Brouter In order for this feature to work, Header Compression must be purchased and available. The VLAN Brouter feature allows VLAN tagged packets to be forwarded when in Brouter mode.
Page 185: Ip | Hdlc
1. The demodulator only supports Router Mode, so the CDM-IP modem that is transmitting to the CDD-56X demodulator must be in Router Mode. 2. The HDLC Address Mode of the Comtech EF Data IP modems must be identical to pass traffic between the TX modems and the demodulator.
Page 186 CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM Receive HDLC Addresses (Hex): The address may be assigned on a per-demod basis within the following ranges: o Point-to-Point – No HDLC address o Small Network – 0x1 to 0xFE o Large Network –...
Page 187: Ip | Routes
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.4.3 IP | Routes Use this page to enter static routes into the IP Module on a per-demod basis, for the purpose of routing IP traffic over the satellite or to another device on the local LAN.
Page 188: Ip | Multicast
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM • Delete: Once a Route Entry is entered into the Name field, click Delete to subsequently remove the entry from the Route Table. Click [Submit] to execute the entries to this section.
Page 189 CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM o Small Network – 0x1 to 0xFE o Large Network – 0x1 to 0xFFFE • Sat to Eth: Select the valid packet handling value for routing to a destination network, using the drop-down list: o Forward –...
Page 190: Ip | Arp
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.4.5 IP | ARP Use this page to display or directly edit all current Static and Dynamic ARP (Address Resolution Protocol) entries. Figure 9-22. IP | ARP page Addresses •...
Page 191: Ip | Vlan
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.4.6 IP | VLAN Use this page on a per-demod basis when HDLC Address Mode has been set to Managed Switch (see Sect. 9.3.4.2 IP | HDLC). Figure 9-23. IP | VLAN page...
Page 192 CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM • The Management VLAN ID us used to specify a dedicated management VLAN used to access and control the modems. For either Native or Management VLAN ID configuration, enter the following information: •...
Page 193: Ip | Igmp
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.4.7 IP | IGMP Use this page to facilitate the use of IGMP (Internet Group Management Protocol) with configured multicast routes. Figure 9-24. IP | IGMP page Demod as Server •...
Page 194: Stats
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.5 Stats Pages The hyperlinks available under the ‘Stats’ tab provide the user access to read-only windows reflecting ongoing operational status, operational statistics, and event logging. Click the Ethernet, IP, or WAN hyperlink to continue.
Page 195: Stats | Ip
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.5.2 Stats | IP Use this page to review read-only status information pertaining to a variety of IP Routing Statistics – Sent/Received, Dropped, and Filtered. Figure 9-26. Stats | IP page Click [Reset Stats] to allow the most recent statistics to display;...
Page 196: Stats | Wan
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.5.3 Stats | WAN Use this page to review read-only status information pertaining to current operating statistics for the WAN FPGA Rx, as well as logged Rx Errors.
Page 197: Maint (Maintenance)
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.6 Maint (Maintenance) pages Click the Unit Info, Operations, Save, or Reboot hyperlink to continue. 9.3.6.1 Maint | Unit Info Use this page to review read-only status information pertaining to the base unit and IP Module’s firmware information for Boot, Active and Inactive Bulks.
Page 198: Maint | Operations
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.6.2 Maint | Operations Use this page to configure the unit’s handling of firmware upon bootup. Figure 9-29. Maint | Operations page Boot/Upgrade Image • Boot From: Determines which firmware version (includes Application, FPGA, and FFPGA) will be loaded upon bootup.
Page 199: Maint | Save
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM o Save Parameters to Flash – When changes are made to the demodulator’s parameters, the ‘Maint | Save’ page must be selected in order for these settings to be valid through a power cycle.
Page 200: Maint | Reboot
CDD-562L/564 Demodulator with IP Module Revision 2 HTTP (Web Server) Interface MN/CDD564L.IOM 9.3.6.4 Maint | Reboot Use this page to force the demodulator to reboot. Figure 9-31. Maint | Reboot page In response to the displayed prompt, click [Yes, Reboot] to execute reboot of the unit.
Page 201: Appendix A. Fast Activation Procedure
If, at a later date, the user wishes to upgrade the functionality of a unit, Comtech EF Data provides Fully Accessible System Topology (FAST), a technology which permits the purchase and installation of options through special authorization codes.
Page 202: Fast Activation Procedure
Chapter 8. CDD-56X CLI and TELNET OPERATION Step Task Before contacting Comtech EF Data to order FAST feature upgrades, obtain and record the demodulator serial number: a) From the CLI Main Menu, first type ‘M’ to select the Satellite Demodulator page; then, type ‘F’...
Page 203: Fast Activation Via The Http (Web Server) Interface
See Step 2 – the ‘Available’ status of the list of features should now reflect the FAST upgrade just completed. If the feature is still listed as ‘Unavailable’, repeat the FAST Access Code entry procedure. Should the code entry error persist, contact Comtech EF Data Customer Support for further assistance. A.2.2 FAST Activation via the HTTP (Web Server) Interface Chapter 9.
Page 204: A.2.2.2 View Currently Installed Features
Note that, as shown in the Features and Feature Availability sections of these pages, any features installed and currently operational are noted as Available; conversely, any feature not available/operational (until purchased from Comtech EF Data) is noted as Unavailable. A–4...
Page 205: A.2.2.3 Acquire/Enter Fast Option Purchase Access Code
A.2.2.3 Acquire/Enter FAST Option Purchase Access Code Contact a Comtech EF Data sales representative to order features, and provide the Serial Number, as obtained previously, when asked. The Comtech EF Data sales representative will verify the order, and Comtech EF Data Customer Support will provide an invoice and FAST option activation instructions (including a 20-character FAST Option Purchase Access Code).
Page 206 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix A MN/CDD564L.IOM Notes: A–6...
Page 207: Appendix B. Forward Error Correction (Fec
Forward Error Correction technology along with modulation types that optimize link performance under any conditions. As standard, the CDD-56X Satellite Demodulator is equipped with an integral Turbo Product Codec. Comtech EF Data’s Turbo Product Codec offers: • Rate 3/4 and 0.95 for QPSK and 8-PSK •...
Page 208: Table B-1. Turbo Product Coding Processing Delay Comparison
Description Two general classes of Turbo Codes are available: Turbo Convolutional Codes (TCC) and Turbo Product Codes (TPC, a block coding technique). Comtech EF Data has chosen to implement an FEC codec based on TPC. A Turbo Product Code is a 2- or 3-dimensional array of block codes. Encoding is relatively straightforward, but decoding is a very complex process requiring multiple iterations of processing for maximum performance to be achieved.
Page 209: Table B-2. Turbo Product Coding Summary
CDD-562L/564 Demodulator with IP Module Revision 2 Appendix B MN/CDD564L.IOM B.2.3 Comparison of All TPC Modes (Contains Additional Information) Eb/No at Eb/No at Occupied BER = 10 BER = 10 Spectral Bandwidth Mode Symbol Rate Guaranteed Guaranteed Efficiency for 1 Mbps...
Page 210 Spec limit Rate 3/4 Uncoded 8-PSK 8-PSK 1E-4 Spec limit Rate 3/4 QPSK/OQPSK 1E-5 1E-6 1E-7 Spec limit Rate 3/4 16-QAM 1E-8 Typical performance 1E-9 Figure B-1. Comtech EF Data Turbo Product Codec Rate 3/4 QPSK (OQPSK), 8-PSK, and 16-QAM B–4...
Page 211 Spec limit Rate 7/8 Spec limit 8-PSK Rate 7/8 Uncoded QPSK/OQPSK 8-PSK 1E-4 1E-5 1E-6 1E-7 Spec limit Rate 7/8 16-QAM 1E-8 Typical performance 1E-9 Figure B-2. Comtech EF Data Turbo Product Codec Rate 7/8 QPSK(OQPSK) , 8-PSK, and 16-QAM B–5...
Page 212 Spec limit Spec limit Rate 0.95 Rate 1/2 QPSK/OQPSK QPSK/OQPSK 1E-5 1E-6 1E-7 Spec limit Rate 0.95 8-PSK 1E-8 Typical performance 1E-9 Figure B-3. Comtech EF Data Turbo Product Codec Rate 21/44 QPSK, Rate 0.95 QPSK, and Rate 0.95 8-PSK B–6...
Page 213: Appendix C. E B /Nmeasurement
Appendix C. E MEASUREMENT Although the CDD-56X Satellite Demodulator calculates and makes the value of receive E available through the remote port of the unit, it is sometimes useful to measure the value using a spectrum analyzer, if one is available. The idea is to accurately measure the value of (Co+No)/No, (Carrier density + Noise density/Noise density).
Page 214 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix C MN/CDD564L.IOM Example: In the diagram that follows, the (Co+No)/No measured is 4.6 dB. If Rate 1/2 QPSK is being used, this would correspond to an E of approximately 2.6 dB. The exact relationship used to derive the table values is as follows:...
Page 215 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix C MN/CDD564L.IOM C–3...
Page 216 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix C MN/CDD564L.IOM Notes: C–4...
Page 217: Appendix D. Cdm/Cdd Nmcs Remote Product Management Protocol
Author Comments 12/08/05 Harish Talanki Created from CDM-570/570L NMCS document. Document content reformatted to incorporate Addendum A into the MN/CDD564L.IOM CDD-562L/564/564L 09/10/09 CEFD Tech Pubs Installation and Operation Manual as Appendix D. Introduction This appendix defines the Remote Control interface for the CDM/CDD family of products. The primary interface is to be Telnet; however, other interfaces may adapt to the CIM implementation, programmatically, via specific API calls.
Page 218: Architecture
CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Architecture Figure D-1. CDM/CDD NMCS Basic Architecture Layout The Remote NMCS connects to an external interface such as Telnet, and processes basic text-based commands to the CIM database manager.
Page 219: Nmcs Protocol
CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM NMCS Protocol D.3.1 Overview The sections that follow outline the basic command set supported in this version of the CIM NMCS protocol. D.3.2 Telnet Interface Telnet interface into the NMCS system must be on port 7023, which has been reserved for this protocol by the IANA.
Page 220: Command Structure
CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.3.4 Command Structure Controller-to-Target Address Instruction Row Index Instruction Optional Start of Packet Target Address End of Packet Delimiter Code (Optional) Code Qualifier Arguments < 1-4 characters 1-3 characters = or ?
Page 221: D.3.4.1 Start Of Packet
CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.3.4.1 Start of Packet Controller-to-Target: This is the character '<' (ASCII code 60). Target-to-Controller: This is the character '>' (ASCII code 62). Because this is used to provide a reliable indication of the start of packet, these two characters may not appear anywhere else within the body of the message.
Page 222 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM For Example: TFQ for Tranmsit FreQuency; RMD for Receive MoDulation type, etc. This aids in the readability of the message, should it be displayed in its raw ASCII form. Only upper case alphabetic characters may be used (A-Z, ASCII codes 65 - 90).
Page 223: D.3.4.6 Optional Message Arguments
CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.3.4.6 Optional Message Arguments Arguments are not required for all messages. Arguments are ASCII codes for the characters 0 to 9 (ASCII codes 48 to 57); period (ASCII code 46); and comma (ASCII code 44); plus miscellaneous printable characters.
Page 224: D.3.4.7.2 Argument Lists
CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.3.4.7.2 Argument Lists In order to enforce atomic reads and writes, and to also allow for checking related parameter for validity, multi-argument lists have the following format: • Arguments are positioned in fixed length format (see specification for each argument).
Page 225 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Commands and Queries Unless otherwise specifically called out in the IP Commands section, the remaining commands are provided as part of the base modem command set and are defined in the CDM-570/570L Satellite Modem with Optional IP Module Installation and Operation Manual.
Page 226: Commands And Queries
CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.4.1 IP Commands and Queries D.4.1.1 Admin Commands and Queries Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and...
Page 227 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) Downlink Route All...
Page 228 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) Ping Reply Enabled PRE= 1 byte, value of Command or Query.
Page 229 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) SMTP Destination...
Page 230 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) SNMP Trap...
Page 231 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) Telnet timeout...
Page 232 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.4.1.2 Interface Commands and Queries Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and...
Page 233 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.4.1.3 QoS Commands and Queries Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and...
Page 234 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) QoS mode...
Page 235 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) QoS Rule QSR= QSR[0..32]=...
Page 236 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.4.1.4 Protocol Commands and Queries Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and...
Page 237 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) IGMP View Table...
Page 238 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.4.1.5 Operations and Maintenance Commands and Queries Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command...
Page 239 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) IP Software...
Page 240 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) Save System...
Page 241: D.4.1.6 Redundancy Query
CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.4.1.6 Redundancy Query Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query...
Page 242 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) Route Table RTE[1..256]=var...
Page 243 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.4.1.8 Statistics Commands and Queries D.4.1.8.1 Wan Stats Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to...
Page 244 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.4.1.8.2 IP Stats Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query...
Page 245 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query Qualifier) IP Filtered Stats...
Page 246 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.4.1.8.3 Ethernet Stats Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query...
Page 247 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM D.4.1.8.4 QoS Stats Command Arguments for Query Parameter (Instruction Command or Response to (Instruction Description of Arguments Response to Query Type Code and Response to Command Code and Qualifier) Query...
Page 248: Param Files
CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Param Files Param File Tag Values Associated with Parameter Router Mode SYS_WORKING_MODE Easy Connect Mode Enabled EASYCON_MCAST_MODE Disabled HDR_REFRESH_UDP_RTP1 DeCIMal Value of 1…600 HDR_REFRESH_UDP DeCIMal Value of 1…600 HDR_REFRESH_ALL_OTHERS DeCIMal Value of 1…600 PAYLOAD_REFRESH DeCIMal Value of 1…600...
Page 249 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Param File Tag Values Associated with Parameter NONE – When not set ADMIN_PWD Xxxx/yyy format with xxx-user name and yyy-password. Like comtech/comtech. NONE – When not set READWRITE_PWD Xxxx/yyy format with xxx-user name and yyy-password. Like comtech/comtech.
Page 250 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Param File Tag Values Associated with Parameter Unavailable – If system does not has this FAST Feature available. Per Route – If the system working mode is Router-Small, Router-Large, Router-PtoP TX_PYLDCOMP_ENABLE Enabled –...
Page 251 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Param File Tag Values Associated with Parameter Auto 10 MB/sec Half Duplex ETHER_SPEED_MODE 100 MB/sec Half Duplex 10 MB/sec Full Duplex 100 MB/sec Full Duplex ETHER_IP_SNET IP Address in the format 192.168.1.50/24...
Page 252 CDD-562L/564 Demodulator with IP Module Revision 2 Appendix D MN/CDD564L.IOM Param File Tag Values Associated with Parameter IGMP_URI A deCIMal value of 0…25 Static ARP entry if there are any, in the format SARP#0 …. SARP#255 IP Addr Layer2 MAC Address [HexadeCIMal digits] 10.20.30.40...
Page 253 METRIC CONVERSIONS Units of Length Unit Millimeter Centimeter Inch Foot Yard Meter Kilometer Mile 1 millimeter 0.0394 0.0033 0.0011 0.001 1 x 10 6.214 x 10 1 centimeter 0.3937 0.0328 0.0109 0.01 1 x 10 6.214 x 10 1 inch 25.4 2.54 0.0833...
Page 254 2114 85281 WEST TH STREET TEMPE ARIZONA 480 • 333 • 2200 PHONE 480 • 333 • 2161...

This manual is also suitable for:

Cdd-564

Comtech EF Data CDD-562L Installation And Operation Manual

Chapter 1. INTRODUCTION

Chapter 2. INSTALLATION and STARTUP

Chapter 3. REAR PANEL CONNECTOR PINOUTS

Chapter 4. IP MODULE ETHERNET INTERFACE

Chapter 5. UPDATING FIRMWARE

Chapter 6. Ethernet-Based Remote Product Management

Chapter 7. QUICK START GUIDE

Chapter 8. CDD-56X Cli and Telnet Operation

Appendix A. FAST ACTIVATION PROCEDURE

Appendix B. Forward Error Correction (Fec

Appendix C. E B /NMEASUREMENT

Appendix C. EMEASUREMENT

Appendix D. CDM/CDD NMCS REMOTE PRODUCT MANAGEMENT PROTOCOL

Quick Links

Troubleshooting

Related Manuals for Comtech EF Data CDD-562L

Summary of Contents for Comtech EF Data CDD-562L
