Demod | Utilities - Comtech EF Data CDD-562L Installation And Operation Manual

CDD-562L/564 Demodulator with IP Module
HTTP (Web Server) Interface
9.3.3.2

Demod | Utilities

Use this page to configure the specified CDD-56X utility functions.
Date and Time
•
Enter a time using HH:MM:SS format (where HH = hour [00 to 23], MM = minutes [00 to
59], and SS = seconds [00 to 59]).
•
Enter a date using international format in the form DD/MM/YY (where DD = day [01 to 31],
MM = month [01 to 12], and YY = year [00 to 99]).
Click [Enter Date/Time] to execute these entries.
Circuit ID
Enter a Circuit ID string of up to 24 characters. Click [Enter Circuit ID] to save this entry.
Re-Center Buffer
Click [Re-Center Buffer] to force re-centering of the Plesiochronous/Doppler buffer.

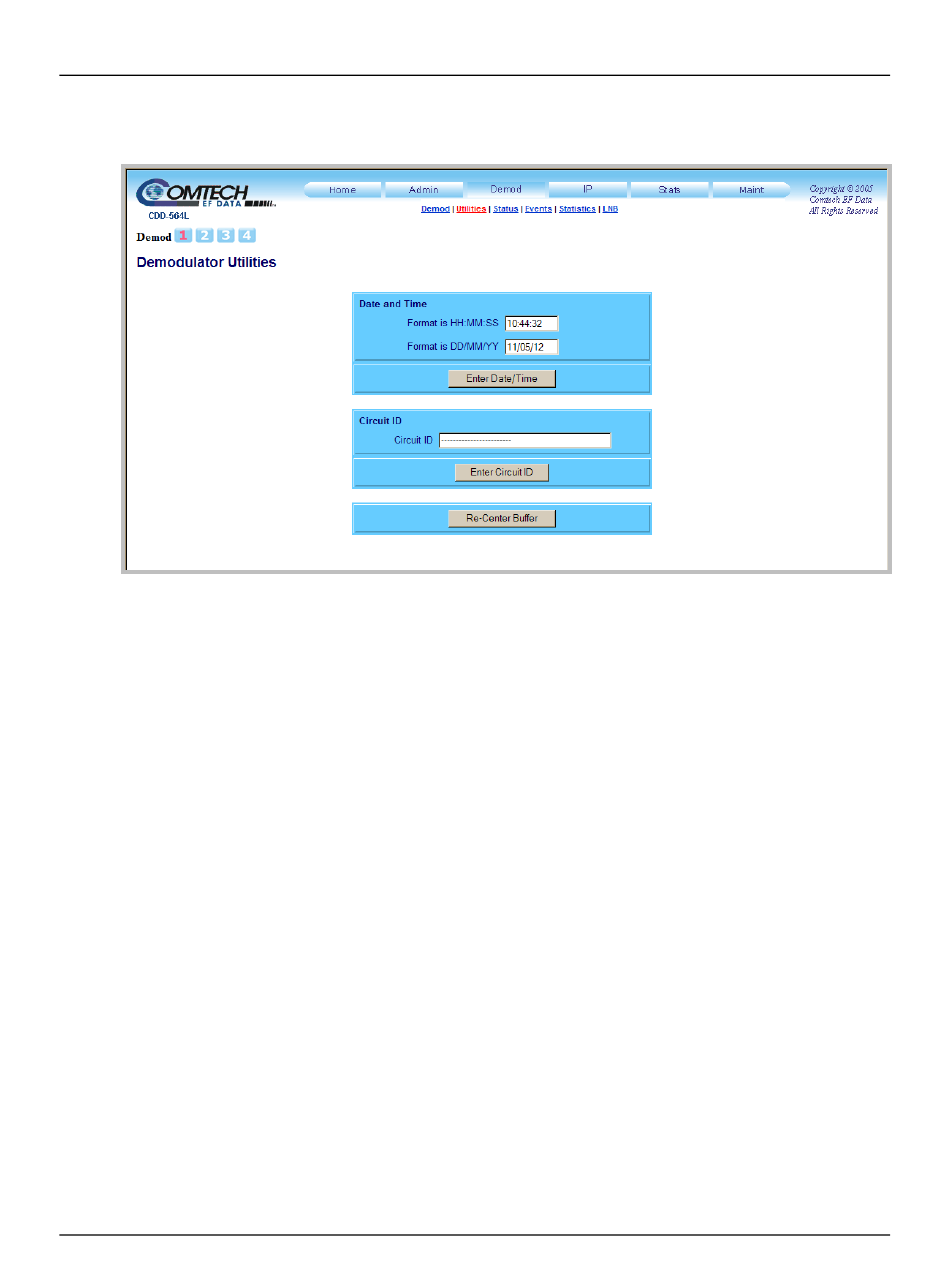

Figure 9-13. Demod | Utilities page
9–18
Revision 2
MN/CDD564L.IOM
