3.1

CDD-56X Rear Panel Overview

The CDD-56X Satellite Demodulator rear panel connectors, shown here in Figure 3-1, provide
all necessary external connections between the modem and other equipment:
•
Section 3.2 summarizes the cabling connections provided on the rear panel interface,
grouped according to service function.
•
Section 3.3 summarizes the grounding and power features for the unit.
Chapter 3. REAR PANEL
CONNECTOR PINOUTS
(Top) CDD-562L Dual Demodulator with IP Module (L-Band)
(Center) CDD-564 Quad Demodulator with IP Module (70/140 MHz)
(Bottom) CDD-564L Quad Demodulator with IP Modulator (L-Band)

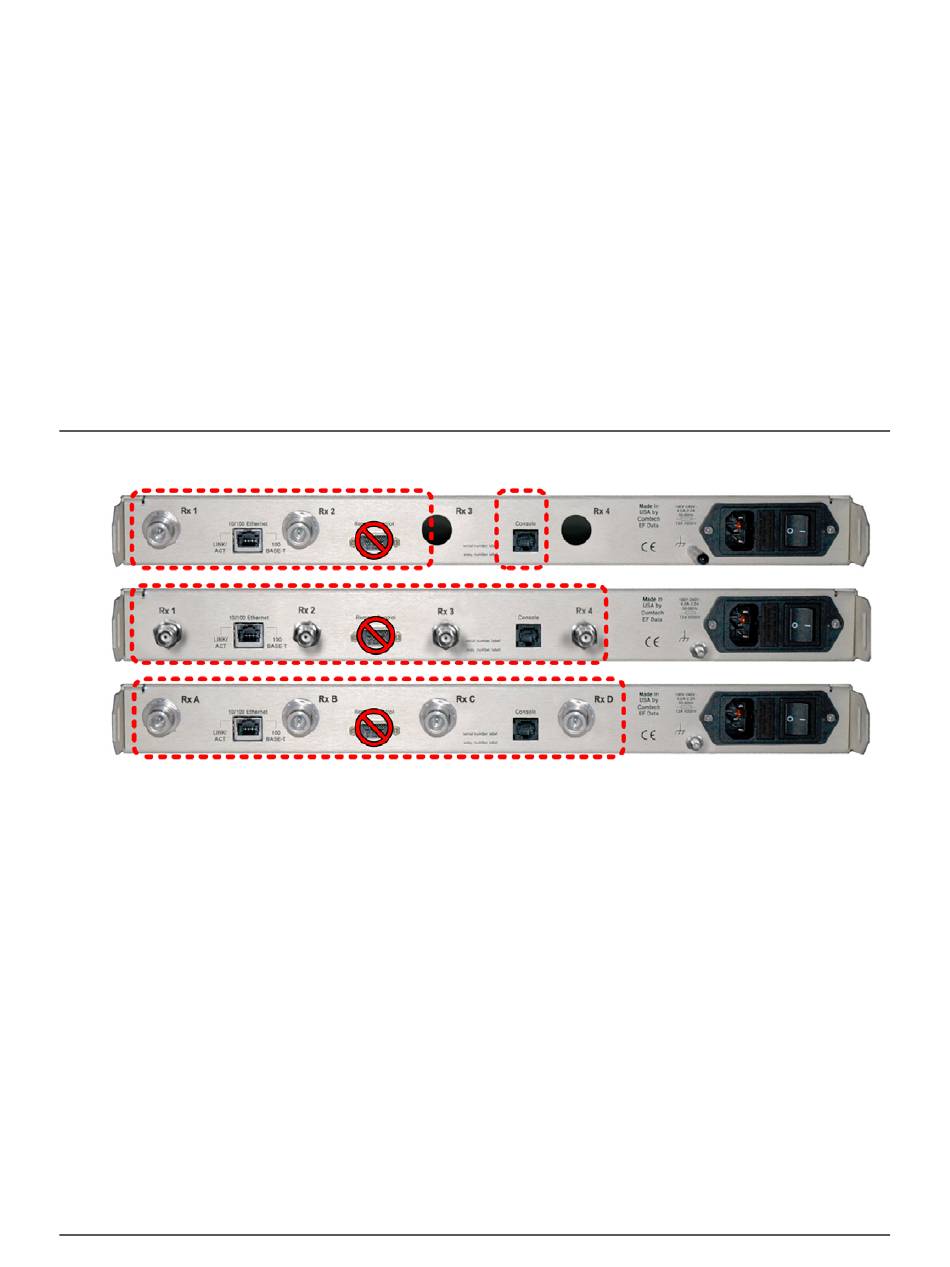

Figure 3-1. CDD-56X Rear Panel View

3–1
