9.3.4 IP pages
The hyperlinks available under the 'IP' tab provide the user access to all functionality associated
with Ethernet operation.
Click the Ethernet, HDLC, Routes, Multicast, ARP, VLAN, or IGMP hyperlink to continue.
9.3.4.1

IP | Ethernet

Use this page to view the MAC address and Link Status, and set the IP address/mask, and
mode/speed of the IP Module.
Ethernet
•
MAC Address (read-only): This is set at the factory to a guaranteed unique address that
cannot be modified by the user.
•
Mode & Speed: Use the drop-down list to select Auto, 10 Mbps Half Duplex, 100 Mbps
Half Duplex, 10 Mbps Full Duplex, or 100 Mbps Full Duplex.
•
IP Address/Mask: The user may enter the IP Address/Mask for the IP Module Ethernet
Interface.
•
Link Status (read-only): The is the actual negotiated Link Status of the Ethernet Port; this
includes whether the link is UP or DOWN.

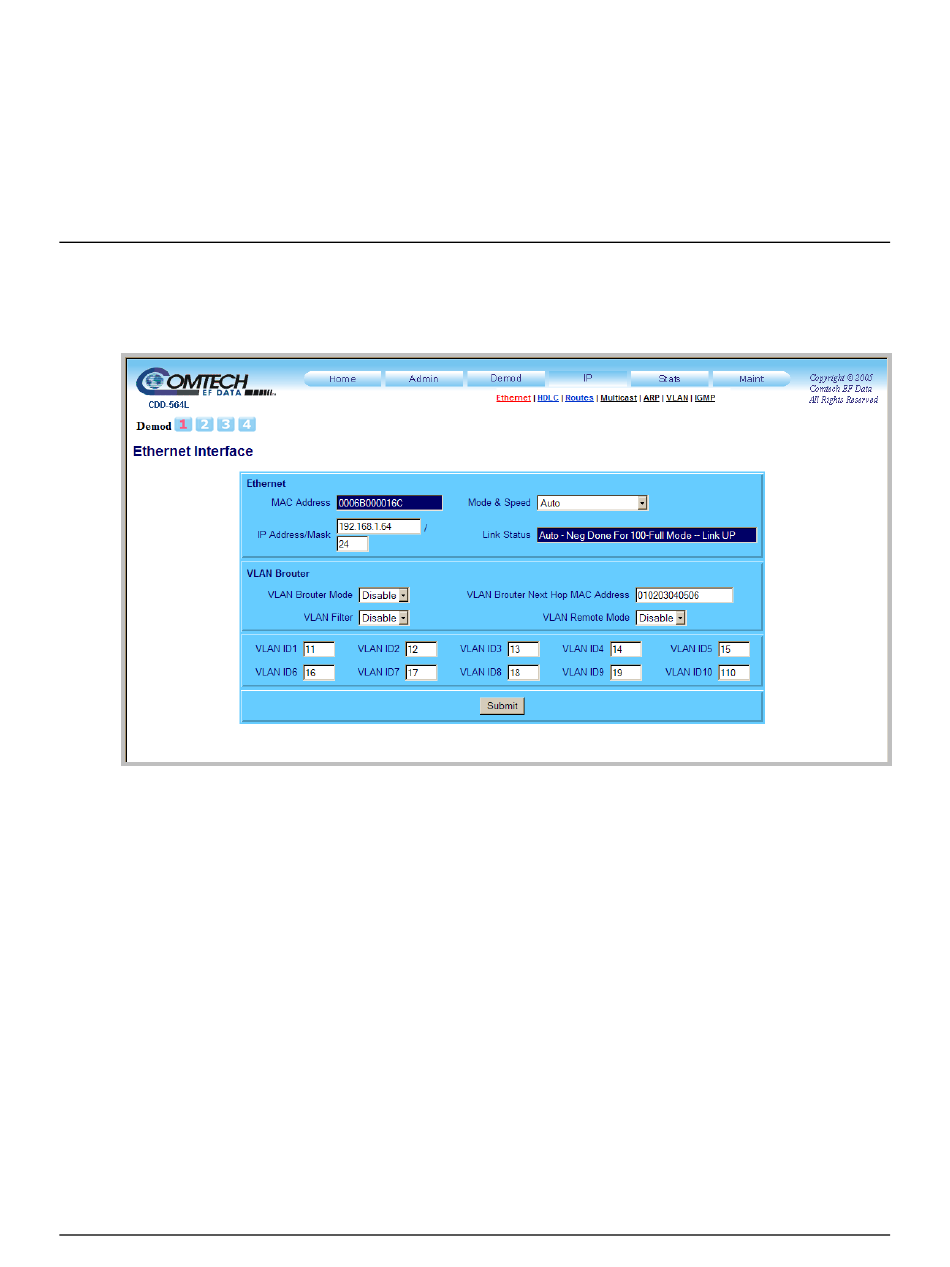

Figure 9-18. IP | Ethernet page
