8.2.2.6

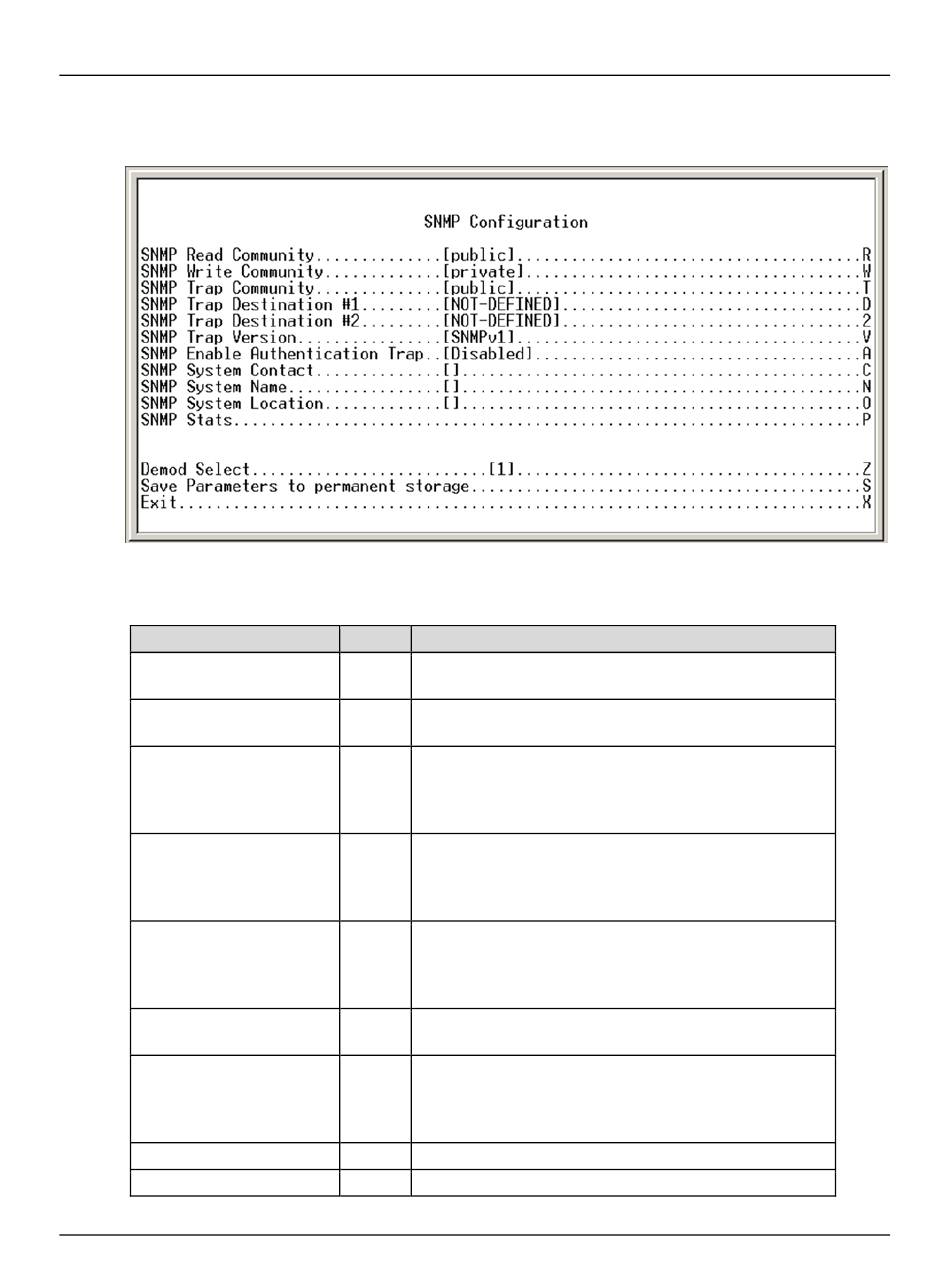

SNMP Configuration page

Access the SNMP Configuration page from the Administration page.
Use this page to specify management parameters for Simple Network Management Protocol. This
page contains the following unique selections/fields:
Selection
SNMP Read Community
SNMP Write Community
SNMP Trap Community
SNMP Trap Destination #1
SNMP Trap Destination #2
SNMP Trap Version
SNMP Enable Authentication
Trap
SNMP System Contact
SNMP System Name
Entry Description
R (GET community) Allows GET operations to all portions of the
demodulator Controller and Quad Demodulator MIBs.
W (SET community string) Allows SET operations to all portions of
the demodulator Controller and Quad Demodulator MIBs.
T Defines Community String that will be set in the Community
field of all outgoing traps. This field on the trap PDU may be
checked by the network manager application to determine if the
trap came from a "trusted" agent.
D IP address where all traps/notifications will be sent. If a network
management application is running in the network, it should be
configured to receive traps and its IP address should be
entered here. Supports 2 – Trap Destinations.
2 IP address where all traps/notifications will be sent. If a network
management application is running in the network, it should be
configured to receive traps and its IP address should be
entered here. Supports 2 – Trap Destinations.
V Determines whether an SNMPv1 trap or SNMPv2 notification is
sent.
A Determines whether a MIB2 authentication trap will be sent
when a PDU with an invalid community string is encountered. A
community string is invalid when it does not match the Admin,
the Read Write, or the Read Only community strings.
C User-defined SNMP Contact information.
N User-defined SNMP Name information.
