CDD-562L/564 Demodulator with IP Module
CDD-56X CLI and Telnet Operation
8.2.8.4

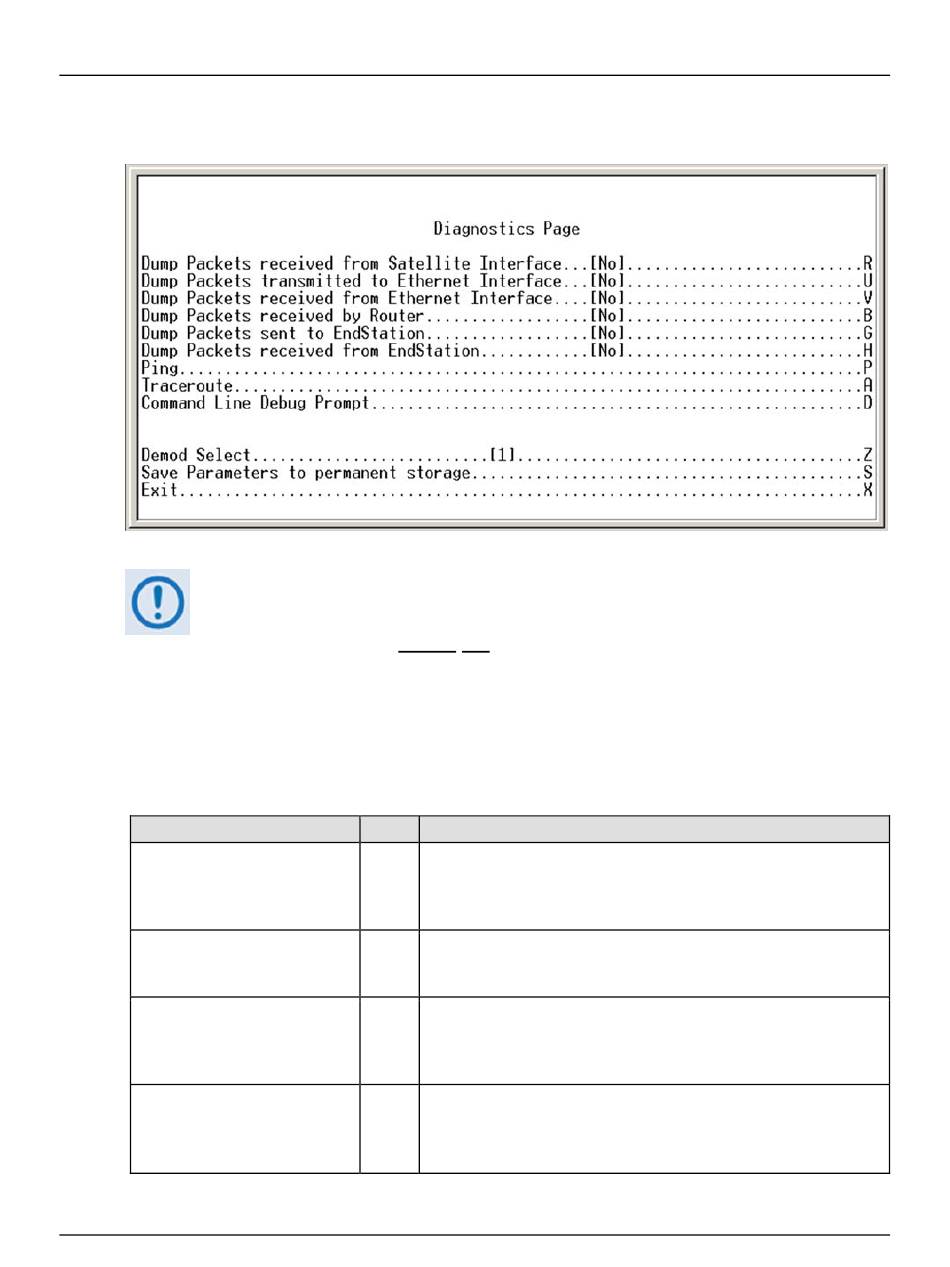

Diagnostics page

Access the Diagnostics page from the Operations and Maintenance page.
When using Dump Packets Diagnostics Utilities:
1.
2.
This page contains the following unique selections/fields:
Selection
Dump Packets received from
Satellite Interface
Dump Packets transmitted to
Ethernet Interface
Dump Packets received from
Ethernet Interface
Dump Packets received by
Router
The Dump Packet Utilities will display a hexadecimal representation of
each packet and should not be used when the demodulator is on a "live"
network.
Selecting the menu option a second time terminates the dump operation.
Each selection toggles the value of the dump engine.
Entry Description
R Select [Yes] or [No].
Selecting [Yes] forces the IP Module to dump a hexadecimal
representation of each packet that it receives from the Satellite
Interface.
U Select [Yes] or [No].Selecting [Yes] forces the IP Module to dump a
hexadecimal representation of each packet that is transmitted to the
Ethernet Interface.
V Select [Yes] or [No].
Selecting [Yes] forces the IP Module to dump a hexadecimal
representation of each packet that it receives from the Ethernet
Interface.
B Select [Yes] or [No].
Selecting [Yes] forces the IP Module to dump a hexadecimal
representation of each packet that is received by the routing engine.
(Note: Does not apply when in easyConnect™ mode.)
8–54
Revision 2
MN/CDD564L.IOM
