CDD-562L/564 Demodulator with IP Module
CDD-56X CLI and Telnet Operation
8.2.7.2.1

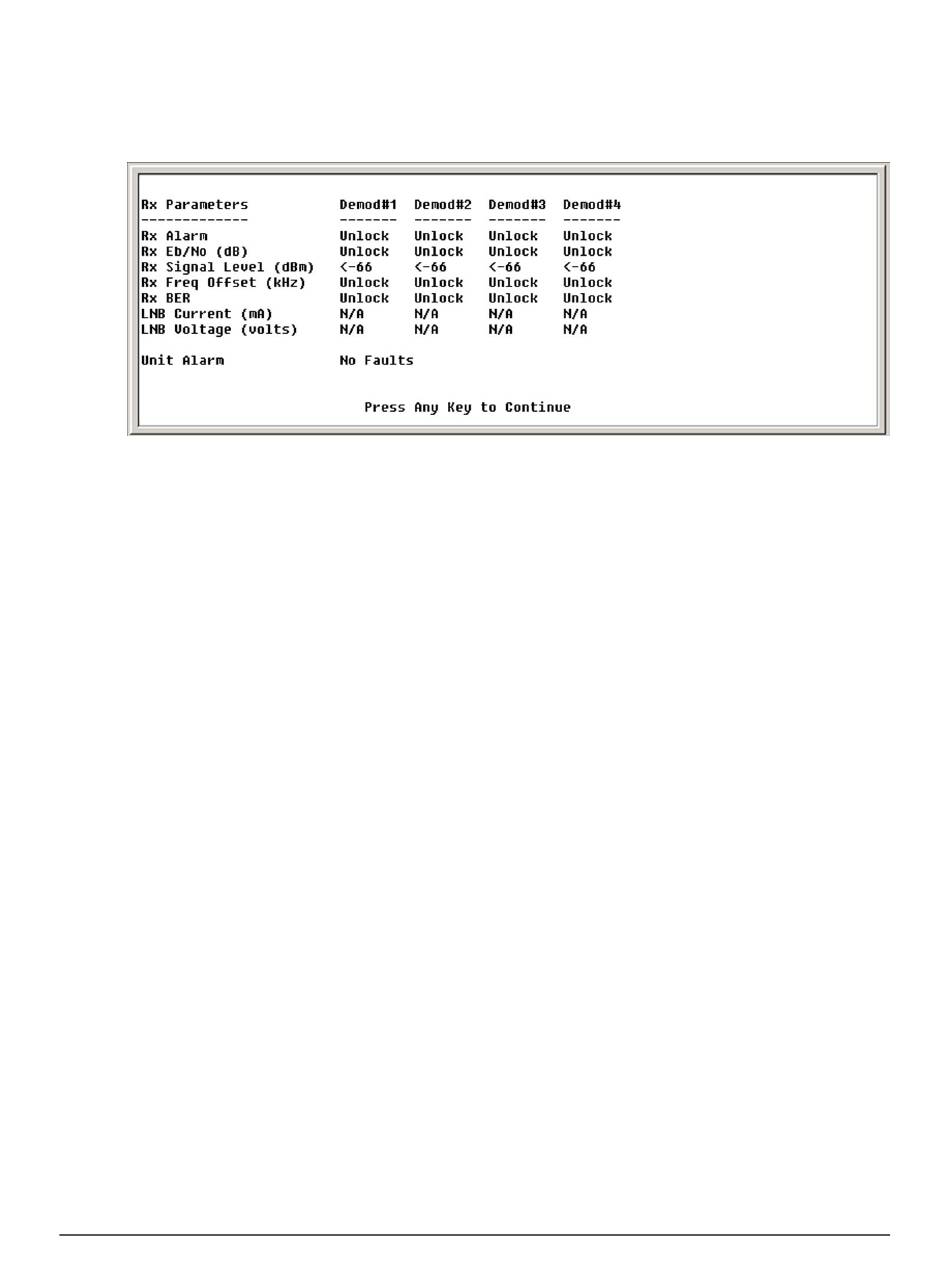

Rx Parameters page

Access the Rx Parameters page from the Monitor page.
This read-only page provides, in a summary fashion, the following functional status indicators or
operating statistics on a per-Demod basis:
•
Rx Alarm
•
Rx Freq Offset (kHz)
•
LNB Voltage (volts)
Additionally, the presence of any Unit (system-level) alarms/faults is indicated.
Press any key to return to the previous CLI menu page.
•
Rx Eb/No (dB)
•
Rx BER
8–34
Revision 2
MN/CDD564L.IOM
•
Rx Signal Level (dBm)
•
LNB Current (mA)
