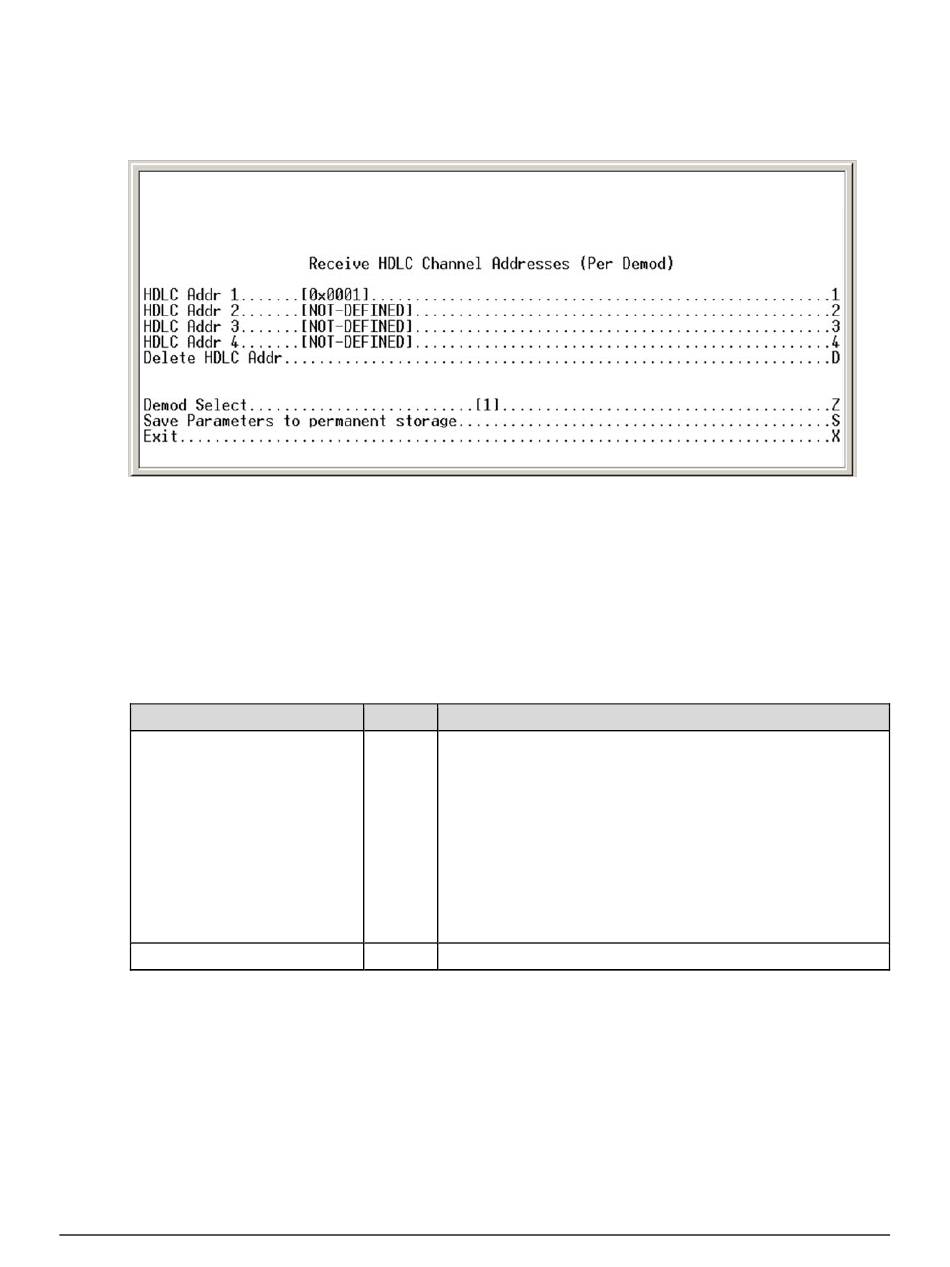

Receive HDLC Addresses (Per Demod) page

Access the Receive HDLC Addresses (Per Demod) page from the Satellite/HDLC Interface page.
Use this page to define up to four HDLC addresses per receive channel that can carry user
information on the Satellite Interface. Note the following:
•
The CDD 564/564L has four Receive channels;
•
The CDD 562/562L has two Receive channels.
This page contains the following unique selections/fields:
Selection
HDLC Addr 1
through
HDLC Addr 4
Delete HDLC Addr
Entry Description
1 Note: For HDLC addresses in hex <1 - 7FFE, enter = 0001>
Note the following:
through • Point-To-Point Mode: HDLC addresses are not used in this
mode.
4
• Small Network Mode (up to 254 addresses) - The user is
limited to valid addresses between the values of 0x01 and
0xFE.
• Large Network Mode (up to 32766 addresses) - The user is
limited to valid addresses between the values of 0x0001 and
0x7FFE.
D Specifies the HDLC entry to delete (1,2,3 or 4)
