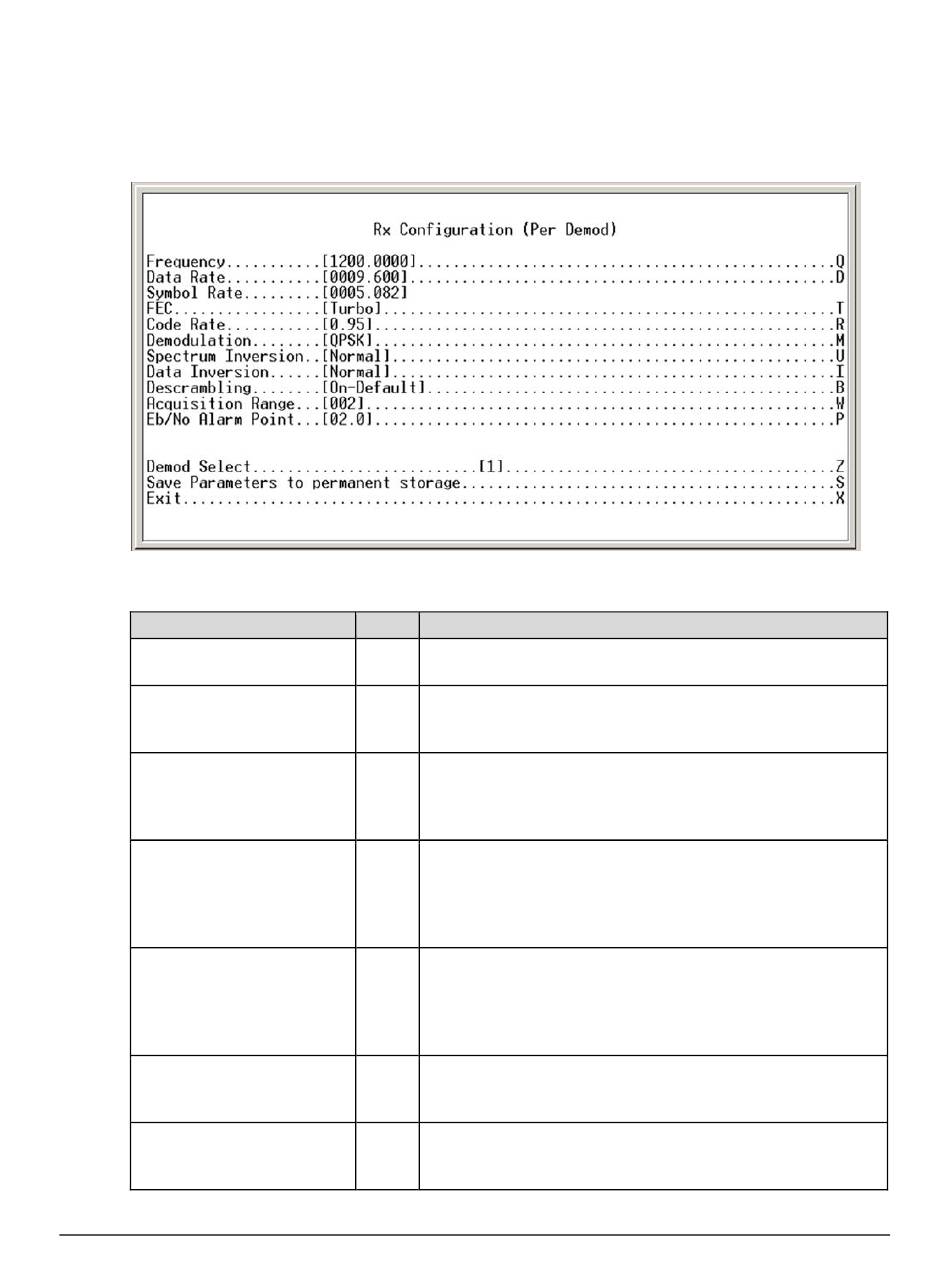

Rx Configuration (Per Demod) page

Access the Rx Configuration page from the Configuration page. Note that all parameters on this
page are configurable on a per-Demod basis (as determined via Demod Select).
This page contains the following unique selections/fields:
Selection
Frequency
Data Rate
FEC
Code Rate
Demodulation
Spectrum Inversion
Data Inversion
Entry Description
Q CDD-562L/CDD-564L (L-Band): Valid ranges for Rx Frequency are
from 950 to 1950 MHz.
D Valid range for Rx Data Rate is from 2.4 kbps to 9980 kbps.
Note: High data rate [>5000Kbps] is a FAST Feature to be purchased
from Comtech EF Data
T Select one of the following for the Decoder Type:
1 – Uncoded
2 – TURBO
Note: Selection 2 (TURBO) available only with the CDD-564L.
R Select one of the following for the Decoder Rate:
1 – 3/4
2 – 7/8
3 – 0.95
4 – 1/1
M Select one of the following for the Rx Demodulation type:
1 – QPSK
2 – 8-PSK
3 – 16QAM
Note: Selections1, 2, 3 available only with the CDD-564L.
U Select one of the following:
1 – NRM (Normal)
2 – INV (Inverted)
I Select one of the following:
1 – NRM (Normal)
2 – INV (Inverted)
8–30
