CDD-562L/564 Demodulator with IP Module
CDD-56X CLI and Telnet Operation
8.2.3.1

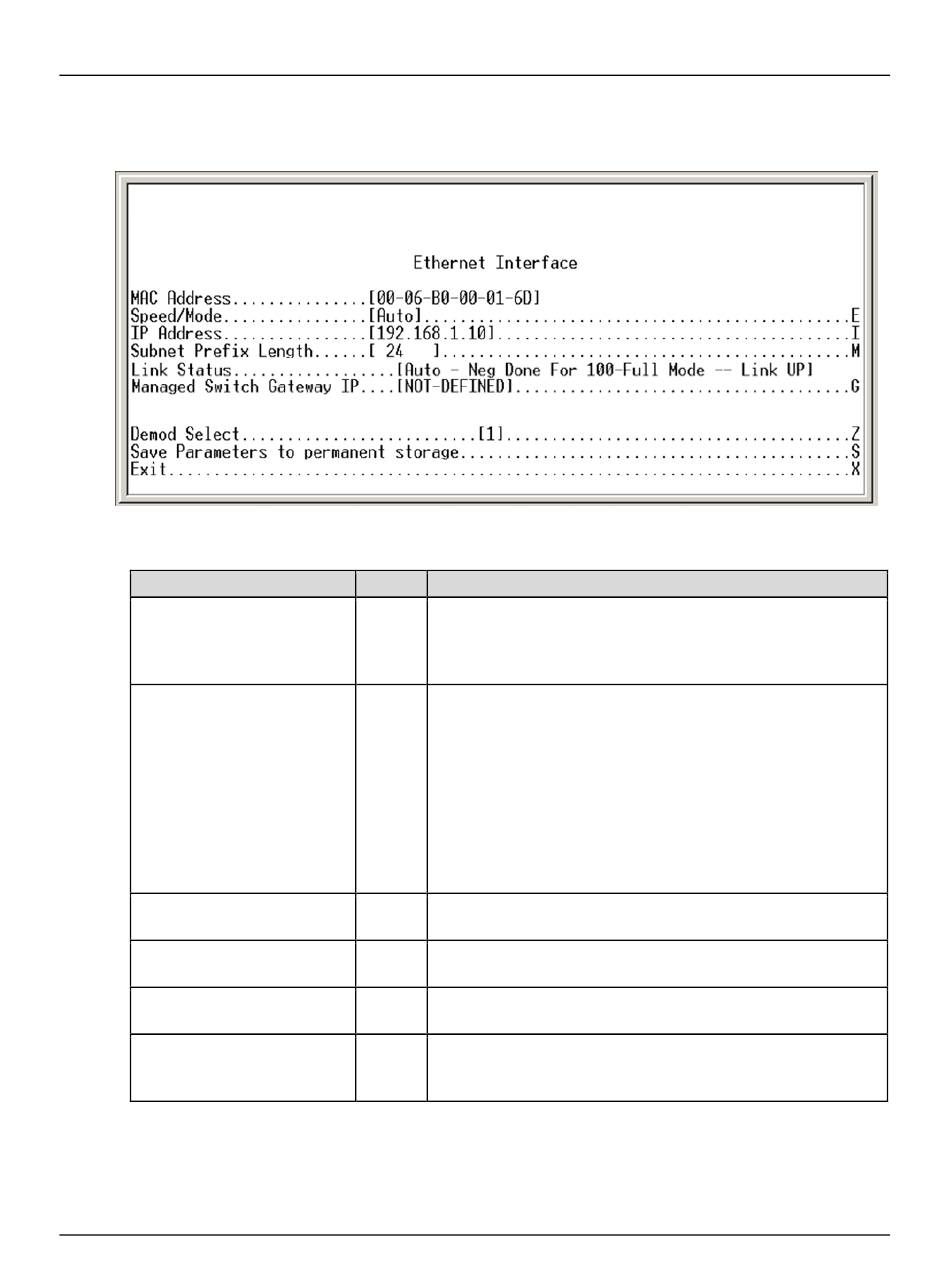

Ethernet Interface page

Access the Ethernet Interface page from the Interface Configuration page.
This page contains the following unique selections/fields:
Selection
MAC Address
Speed/Mode
IP Address
Subnet Prefix Length
Link Status
Managed Switch Gateway IP
Entry Description
[RO] The MAC Address defines the hardware destination MAC Address
that is used when an Ethernet packet is destined for the demodulator
Traffic Ethernet Interface. This address is unique and has been
assigned permanently at the factory.
E The Ethernet Speed Mode is a configurable parameter and thus its
exact setting can vary between specific installations. The default
setting allows the Ethernet port to auto negotiate its link speed on
power-up.
Selections are:
1 -- Auto
2 -- 10 MB/sec Half Duplex
3 -- 100 MB/sec Half Duplex
4 -- 10 MB/sec Full Duplex
5 -- 100 MB/sec Full Duplex
I This is the IP Address assigned to the Ethernet Traffic Interface.
Enter the IP address in aaa.bbb.ccc.ddd format
M Specifies the Subnet Mask assigned to the Ethernet Traffic Interface.
Enter the subnet mask prefix length (valid range is from 8 to 30).
[RO] Displays the Ethernet Link status like the speed, duplex, and whether
the link is 'UP' Or 'DOWN'.
G Selectable only when Managed Switch is the selected Working
Mode: This is the IP Address assigned to the Managed Switch
Gateway. Enter the IP address in aaa.bbb.ccc.ddd format
8–17
Revision 2
MN/CDD564L.IOM
