Accessing The Web Interface Through Rndis - Eaton Network-M2 User Manual

If your device has an LCD, from the LCD's menu, navigate to Identification>>>"COM card IPv4".
• Note the IP address of the card.
• Go to the section: Accessing the web interface through Network.
2.4.2.1.2 With web browser through the configuration port
For example, if your device does not have an LCD, the IP address can be discovered by accessing the web interface through RNDIS
and browsing to Settings>Network.
To access the web interface through RNDIS, see
• Navigate to Contextual help>>>Settings>>>Network &
• Read the IPv4 settings.
2.4.2.2 Your network is not equipped with a BOOTP/DHCP server
2.4.2.2.1 Define from the configuration port
The IP address can be defined by accessing the web interface through RNDIS.
To access web interface through RNDIS, see
Define the IP settings:
• Navigate to Contextual help>>>Settings>>>Network &
• Select Manual (Static IP).
• Input the following information: Address, Subnet Mask, Default Gateway
• Save the changes.

2.4.3 Accessing the web interface through RNDIS

This connection is used to access and configure the Network Module network settings locally through a RNDIS (Ethernet over USB
interface).

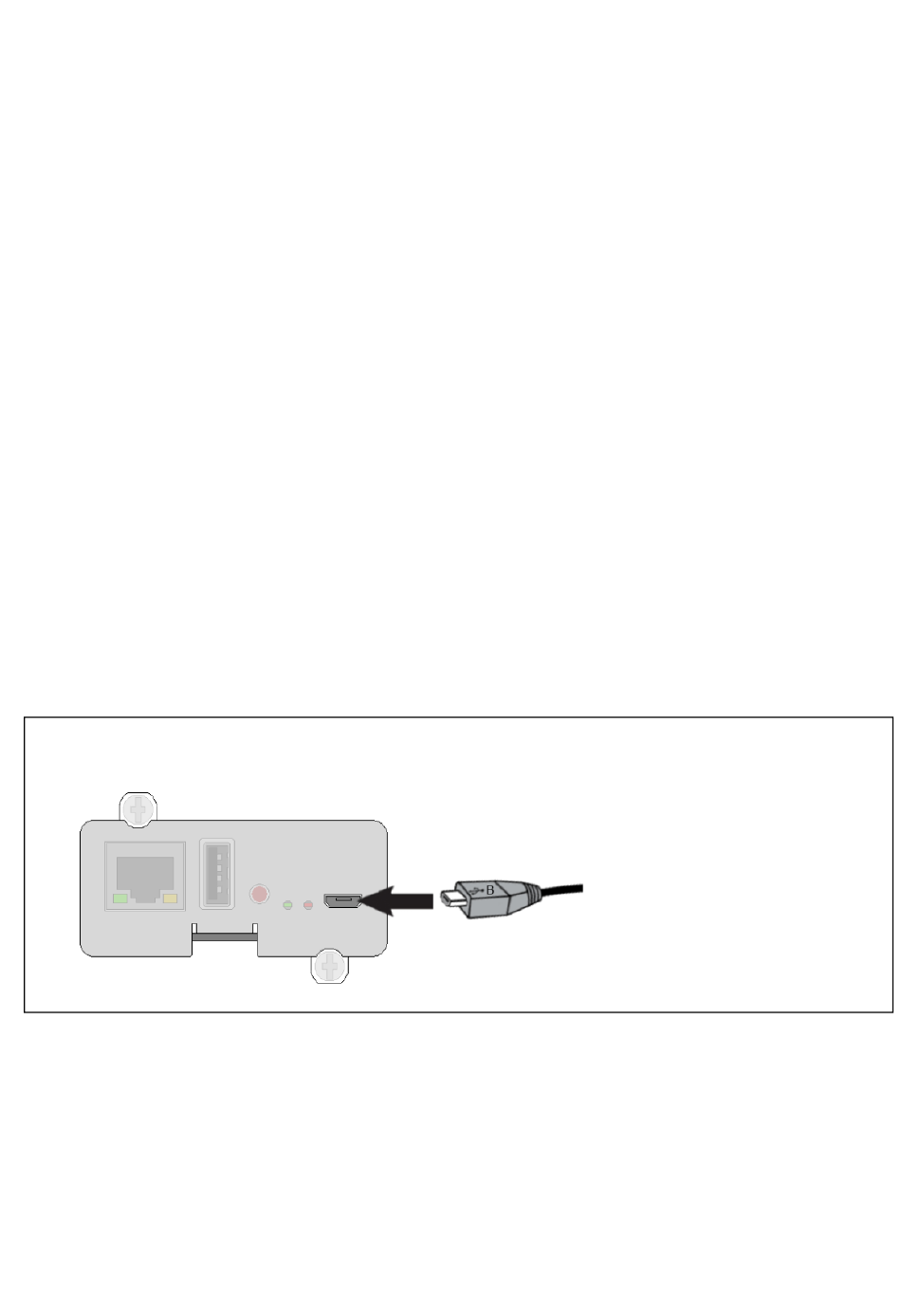

2.4.3.1 Connecting the configuration cable
1. Connect the Micro-B to USB cable to a USB connector on the host computer.
2. Connect the cable to the Settings connector on the Network Module.
the Accessing the web interface through
Protocol>>>IPV4.
the Accessing the web interface through
Protocol>>>IPV4.
Accessing the Network Module
RNDIS section.
RNDIS section.
