3.3.4.1 Overview/Environment
• Type
• Nominal capacity
• Nominal voltage
• Capacity remaining
• Runtime
• State
• Recommended replacement date
• State of health
• Voltage
• Current
• Temperature
• Min cell voltage
• Max cell voltage
• Number of cycles
• Min temperature
• Max temperature
• BMS state

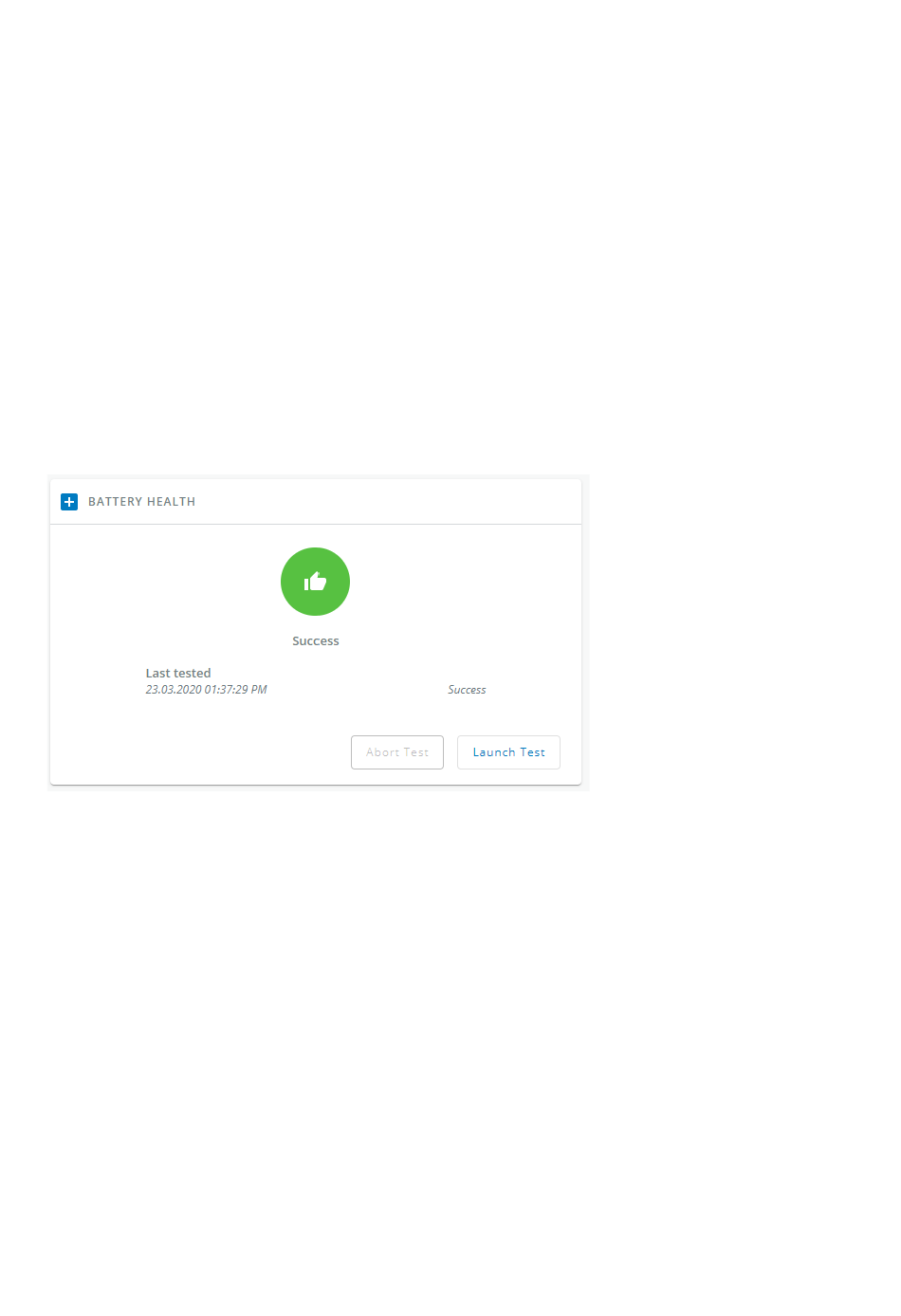

3.3.5 Battery health

Battery health section provides status of the battery and allow to launch a battery test.
The status reflects the last completed battery test result, as well as its critical status (color) and completion time.
• Pass
• Warning
• Fail
• Unknown
3.3.5.1 Commands
Launch test button is disabled if a battery test is already in progress or scheduled.
The Abort test button is enabled only when a test is in progress or scheduled.
3.3.5.2 Pending action
The pending action reflects the battery test status.
