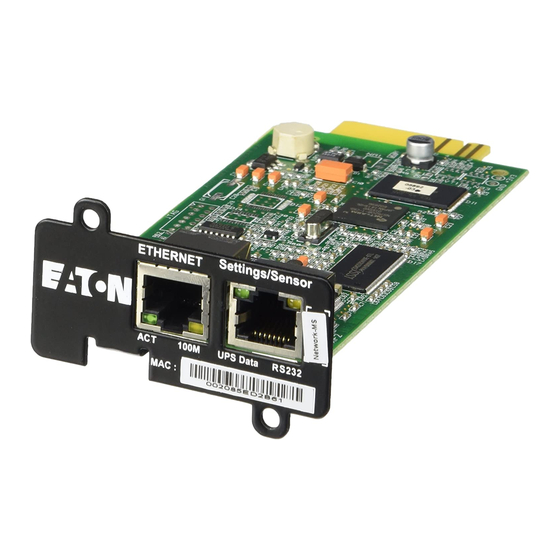

Eaton Network Card-MS User Manual

Works with eaton ups management software
Hide thumbs Also See for Network Card-MS:
Table of Contents

Advertisement

Quick Links

®
Eaton
Network Card-MS
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Network Card-MS and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton Network Card-MS

Summary of Contents for Eaton Network Card-MS

  • Page 1 ® Eaton Network Card-MS User’s Guide...
  • Page 2 Phone: +358-9-452 661 Fax: +358-9-452 665 68 Eaton is a registered trademark of Eaton Corporation or its subsidiaries and affiliates. Phillips and Pozidriv are a registered trademarks of Phillips Screw Company. National Electrical Code and NEC are registered trademarks of National Fire Protection Association, Inc. All other trademarks are properties of their respective companies.
  • Page 3 Special Symbols The following are examples of symbols used on the UPS or accessories to alert you to important information: RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric shock symbol. CAUTION: REFER TO OPERATOR'S MANUAL - Refer to your operator's manual for additional information, such as important operating and maintenance instructions.

  • Page 4: Table Of Contents

    Date and Time ..............Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 5 Shutdown Criteria Managed by the Network Card-MS ........
  • Page 6 Network Card-MS ........

  • Page 7: Introduction

    Network Card-MS works with Eaton UPS Management Software to monitor, manage, and protect uninterruptible power supplies (UPSs) through standard Web pages, a Network Time Protocol (NTP) server, and Secure Sockets Layer (SSL) security protocol. The Network Card-MS can support up to five connected browsers at a time, or three with SSL protocol.
  • Page 8 - MIB II (RFC 1213) - Internet Engineering Task Force (IETF) Standard UPS MIB (RFC 1628) - Eaton PowerMIB - Eaton Pulsar MIB (MGE MIB) NOTE See Chapter 5, “MIB Objects” on page 63. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 9: Getting Started

    Provide the local network administrator with the card’s MAC address: MAC Address Port: _________________________ The MAC address is located on the label on the front of the card (see Figure 1). MAC Address Figure 1. MAC Address Location Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 10: Card Details

    Card is communicating with the UPS Flashing Normal operation; communication with the UPS is operational RS-232 LED (orange) Configuration menu is activated Normal operation; Configuration menu is not activated Flashing Card is communicating with the EMP Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 11: Card Defaults

    Getting Started Card Defaults Table 2 lists the Network Card-MS default parameters. Table 2. Default Parameters Function On Parameter Default Value Possible Values Network IP Address 192.168.1.2 Network IP address Subnet Mask 255.255.0.0 Network IP address Gateway Address 0.0.0.0 Network IP address...

  • Page 12: Installing The Card

    Getting Started Installing the Card The Network Card-MS can be installed in any Eaton UPS equipped with a communication bay without turning off the UPS or disconnecting the load. To install the Network Card-MS: Remove the communication bay cover from the UPS. Retain the screws.

  • Page 13: Installing The Optional Environmental Monitoring Probe

    Monitor current and historical environmental data. The EMP is connected to the Settings/Sensor port directly on the Network Card-MS with a standard Ethernet cable (20 meters maximum). Recognition is automatic. An Environment section is added to the main menu of the Web interface (see Figure 4).
  • Page 14 Getting Started Plug the other end of the serial cable into the serial COM port on the computer. Connect an active Ethernet cable (not supplied) to the Ethernet port on the Network Card-MS (see Figure 5). Wait approximately two minutes until the UPS Data LED flashes regularly, indicating normal operation.

  • Page 15: Configuring The Card

    Enter password to activate Maintenance Menu : Warning: for SMTP server resolution don't forget to set DNS File RAM0/ConfigurationData.xml created with 17096 bytes File FLASH0/ConfigurationData.xml written in Flash with 17096 bytes ------------------------------------------------------------- Figure 7. Card Initialization Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 16: Configuring The Network With A Dhcp Server

    From the main menu, type 2 and press Enter. The Network Settings menu displays (see Figure 9). ------------------------------------------------------------- Network settings ------------------------------------------------------------- 1 : Read Network settings 2 : Modify Network settings 3 : Set Ethernet speed 0 : Exit ------------------------------------------------------------- Figure 9. Network Settings Menu Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 17: Configuring The Network Without A Dhcp Server

    Gateway address IP address [xxx.xx.xxx.1]? xxx.xx.xxx.1 Gateway address IP address is xxx.xx.xxx.1 Wait while your new configuration is saved... Reset the card to enable the new configuration. Figure 11. Modifying the Network Settings Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 18: Testing The Configuration

    “Configuring the Network With a DHCP Server” on page 10). Testing the Configuration To verify that the Network Card-MS is operational: Open a Web browser from a station connected to the same subnet as the card. Enter the card’s IP address in the address bar. The home page displays (see Figure 12).

  • Page 19: Configuring The Card

    Link to Help Menu Bar Figure 13. Navigating the Card’s Web Page The menu bar to the left of the page contains links to the card’s additional pages for status information and configuration options. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 20: Logging In

    Select Every visit to the page. Click OK to close the Settings window, and then click OK again to close the Internet Options window. Online Help The Network Card-MS’s online Help provides information on all main menu items. NOTE The Help is in English only.
  • Page 21 To access Help: Click Help. The Help page opens (see Figure 15). Select a Help topic from the menu bar. The corresponding Help content displays on the right. Figure 15. Online Help Example Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 22: Ups Properties

    Computer Room to name the location of your system (see “System Settings” on page 39). An animated diagram displays for online UPSs showing an overview of the current UPS operating mode. UPS Status UPS Status List Current UPS Operating Mode Diagram Figure 16. UPS Properties Page Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 23: Ups Measurements Detail

    Table 3 lists the UPS status icons. Table 4 shows examples of the online UPS current operating modes. Table 3. UPS Status Icons Icon Description Normal operation Green Alarm present This element links directly to the alarm page Loss of communication with the UPS Gray Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 24 Table 4. Operating Mode Diagrams Operating Mode Diagram UPS with Automatic Bypass UPS with Automatic and Manual Bypass UPS without Automatic Bypass NOTE If communication with the UPS is lost, all diagrams appear gray. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 25 Remaining capacity < 50% Yellow Battery to be checked (battery test result) Battery Output Flow AC to DC converter powered by battery Yellow AC to DC converter not powered by battery Gray Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 26 AC Bypass Input In tolerance Green Out of tolerance AC Automatice Bypass Flow Energy flow present Yellow No energy flow Gray AC Automatic Bypass Status Powered Green Not powered Gray Internal failure Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 27 Energy flow present Yellow No energy flow Gray AC Manual Bypass Status Open Green Closed AC Output Flow Energy flow present Yellow No energy flow Gray AC Output Load protected Green Load not protected Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 28: Ups Status List

    Output: Indicates whether the individual UPS outputs are protected. - Master (UPS): Indicates whether the UPS main output is protected. - Group 1 and Group 2: Indicates whether the controlled load segments (if available) are powered (see Table 7). Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 29: View Current Alarms

    Select UPS Alarms from the UPS Status list to display the list of current alarms (see Figure 19).Table 8 lists the alarm severity levels. Table 9 and Table 10 list the managed UPS and system alarms. Figure 19. UPS Alarms Display Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 30 Manual Bypass switch (Q3BP) open UPS on manual bypass — Output switch (Q5N) open Output switch (Q5N) closed Single wave load fault Load OK Negative DC bus too high Negative DC bus OK Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 31 <Sensor name>: <Sensor name>: <Input #2 label> <when closed label> <Input #2 label> <when closed label> <Sensor name>: <Sensor name>: <Input #2 label> <when opem label> <Input #2 label> <when open label> Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 32: View Ups And Card Information

    View UPS and Card Information Select About Your UPS from the UPS Status list to display information about the UPS and the card (see Figure 20). Figure 20. About Your UPS Display Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 33: Ups Control

    (BIOS) settings allow a reboot. Delayed, safe power down: This is the same switch off sequence as for the Safe power down command, but postponed by the number of seconds programmed in the Off Delay parameter. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 34: Ups Weekly Schedule Programming

    In a shutdown sequence, the Eaton UPS Management Software connected to the card is informed, ensuring that each machine is shut down correctly before the UPS output is switched off. You can program up to seven UPS shutdown sequences in one week, with a minimum shutdown delay of 30 minutes.

  • Page 35: Shutdown Parameters

    NOTE For security purposes, the administrator must click Save and enter the admin user name and password to save modifications or run commands. The default user name admin and password are both Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 36: Ups Shutdown (Master)

    NOTE Some UPSs do not support the Switch On after option. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 37: Measurements

    Save Log enables you to open or save all saved values in comma separated values (CSV) format (compatible with Microsoft Excel type spreadsheets). Clear Log enables you to delete all records. Enter the user name and password to validate this action. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 38: Event Log

    Clear Log enables you to delete all records. Enter the admin user name and password to validate this action. NOTE See Table 9 and Table 10 starting on page 24 for a list of managed alarms. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 39: Notification

    (SMS) standard for text messaging. NOTE A third-party application is required to convert e-mail messages to SMS. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 40 The default value is recipientx@domain.com. Select Enabled to enable the recipient to receive e-mail messages. Enotify: In addition to the Recipient list, you can include Eaton’s eNotify Remote Monitoring and Diagnostics Service. Attached files: The files selected (Measurements, Event log, System log, Environment Log) are attached to the e-mail message.

  • Page 41: E-Mail Message Settings

    - UPS Name specifies the name of the UPS. - UPS Location displays the geographic location of the UPS (see “System Settings” on page 39). - Event Message identifies the event generating the e-mail message. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 42: Sending Text Messages

    E-mail/SMS transfer systems used by Internet Service Providers (ISPs). The format to be used depends on the service provider. NOTE A third-party application is required to convert e-mail messages to SMS. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 43: Network Settings

    DNS. The default value of the two parameters comprising the fully qualified domain name: ups.domain.com. IPv6 Enabled: Authorizes (choose ’Enabled’) IPv6 support. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 44 For security purposes, you must click Save and enter the admin user name and password to save modifications or run commands. The default user name and password are both admin. Reboot the card after any changes to these parameters (see the following section, “System Settings” on page 39). Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 45: System Settings

    If the Keep TCP/IP parameters checkbox is selected, the IP address, subnet mask, gateway, and BOOTP/DHCP retain their values. To ensure security, this operation requires admin user name and password. By default, user name and password are both admin. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 46: Notified Applications

    Domain Name System (DNS) server, or if the application has been entered as a host name. Application Name: Provides the user-assigned name. Output: Provides the name of the UPS output from which the client is powered. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 47 Hostname or IP Address Protocol: SNMP protocol version: Disabled, V1, V3, or V1&V3 Trap Community (only used in V1) MIB filter (by default, the selected MIB filter corresponds to UPS brand: Pulsar or Powerware) Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 48: Central Shutdown Configuration

    Figure 33. Network Management System Page (Add NMS Shown) Central Shutdown Configuration Use the Central Shutdown Configuration page to define the shutdown and notification settings used by the Network Shutdown Modules that connect to the Network Card-MS. NOTE This feature is not supported by NetWatch.

  • Page 49: Access Control

    If you are not already logged on, you will be prompted to enter your user name and password before accessing this page. NOTE 2 Restart the card to activate any Access Control configuration changes. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 50 - SSL Version 3.0 - Transport Layer Security (TLS) Version 1.0 - Method: TLS_RSA_WITH_512_MD5 - Auth: RSA - Key Exchange: RSA - Encryption: RCA_512 - Digest: MD5 NOTE Changes take effect after a card reboot. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 51: Snmp Settings

    Select SNMP from the menu bar. To access this page, the login and password are systematically requested if they have not already been entered. This menu enables configuration of the SNMP security parameters (see Figure 36). Figure 36. SNMP Settings Page Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 52 8 and 24 characters and use only letters, numbers, and <>&@#%_=:;,./?|$*() symbols. The Notification username: Allows administrators to specify the “username” field for SNMPv3 notifications. IThis field has to be defined in the applications that recieved those notifications. Save: Saves any modifications. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 53: Date And Time

    Select the time zone for your geographic area from the list. European Economic Community (EEC) countries only. Select European Daylight Savings Time. The time automatically adjusts to summer and winter time changes. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 54: Environmental Monitoring Probe

    The EMP is an optional accessory that measures temperature and humidity through two external contacts. The EMP is connected with a standard network cable to the Network Card-MS Sensors port. The card automatically detects the EMP presence. The Network Card-MS Web page displays an Environment section on the menu...

  • Page 55: Environment Status

    Input #1 and Input #2: The position of the two contacts acquired by the EMP. The last status change of each contact is time-stamped. The Internet browser updates this page every 10 seconds. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 56: Environment Settings

    Figure 40. Environment Settings Page (Advanced Parameters Shown) Configurable environment settings are: Sensor name: The name given to the EMP. Eaton recommends using a name that identifies the location of the EMP. Temperature: Choice of the temperature unit (°C or °F) from the selection box.
  • Page 57 The maximum length is 28 characters. when closed and when open: The names associated with the two contact positions (for example ”open” and ”closed” for a door, ”on” and ”off” for a generator). Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 58: Using The Telnet/Ssh/Cli Interface

    Session Constraints Up to five sessions with the Network Card-MS may be open at one time. Each open session must have the same protocol configuration. You cannot open sessions with different protocols. Table 11 lists possible session protocol configurations.

  • Page 59: Starting And Ending A Session

    Open a terminal emulator or other session manager such as PuTTY. At the prompt, type telnet [IPaddress], where [IPaddress] is the IP address of the Network Card-MS. If the connection is successful, the server responds with “Connected to [IPaddress], ” and a welcome message.

  • Page 60: Using The Cli Interface

    Blank characters are not allowed in commands, except inside strings. Enclose strings in double quotes (“). For example, name a server “My Server” by sending the string My Server as part of the command. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 61: General Commands

    DHCP | IPAddress | IPMask | IPGateway | HostName | DomainName | IPv6Enable | IPv6AutoConf | IPv6Address1 | PrefixLength | IPv6DefaultGateway | IPv6LocalAddress | IPv6Address2 | PrimaryDNS | SecondaryDNS | FirmwareUpgrade Example #> getNetwork IPAddress Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 62 | ReadCommunityName | WriteCommunitySecurityLevel | WriteCommunityName | User | UserSecurityLevel | UserPassword | Admin | AdminSecurityLevel | AdminPassword | NotificationUserName | FirmwareUpgrade Example #> getSNMP User Comments For UserPassword and AdminPassword, each character is replaced with an asterisk (*). Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 63: Trap Receiver Commands

    TrapSelectedMibs = 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7(See Note 1) Example #> setTrap 0 Name=“My application“ Comment Note 1:bit0 = 1: MIB Pulsar enabled bit1 = 1: Power MIB enabled bit2 = 1: MIB IETF enabled Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 64: System Commands

    Language = AUTO | FRE | ENG | SPA | GER | ITA | CHI | JPN | KOR | CZI | RUS Example #> setSystem Location=“my office“ getHistSyst Syntax getHistSyst [option] Options Interval Example #> getHistSyst Interval setHistSys Syntax setHistSyst [option] Options Interval = xx(10 to 2147483647 in seconds) Example #> setHistSyst Interval=12 Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 65: Shutdown Commands

    ShutdownTimer = xx(99 to 99999 in seconds) RemainingCapacityLimit = xx(0 to 100 in seconds) ShutdownDuration = xx(120 to 9999 in seconds) StartupTimer = xx(0 to 65535 in seconds) Example #> setShutdown 1 ShutdownDuration=120 Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 66: Access Control Commands

    Comments Note 1: Setting is write-enabled depending on “TimeSync“ status. Note 2: Setting resolves to the nearest half hour. For example, sending +02:36 results in +02:30, and sending +02:46 results in +03:00. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 67: Enviroment Commands

    Comments (NOTE 1) : Writing enabled only if the notification is enabled getHum To read a humidity setting Syntax getHum [option1] [option2] ... Options HighThreshold LowThreshold Hysteresis Offset HighNotify LowNotify HighShutdown LowShutdown Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 68: Default Login/Password

    If the login or password is lost, select the “Set login password to default” menu option to enable the default Login/Password. Default Configuration Use the “Default configuration” menu option to enable the default configuration. The Network Card-MS automatically restarts after the default configuration is enabled. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 69: Mib Objects

    The trap is sent to the management station to inform it of the occurrence. UPS MIB The Network Card-MS implements the full IETF standard UPS MIB (RFC 1628), including the IETF alarm table. The IETF traps are implemented. Visit www.eaton.com/powerquality or http://tools.ietf.org for a description of the MIB.
  • Page 70 — {7.2.1.1.x} xupsAlarmDescr — {7.2.1.2.x} xupsAlarmTime — {7.2.1.3.x} xupsOnBattery — {7.3.0} xupsLowBattery — {7.4.0} xupsUtilityPowerRestored — {7.5.0} xupsReturnFromLowBattery — {7.6.0} upsOutputOverload — {7.7.0} xupsInternalFailure — {7.8.0} xupsBatteryDischarged — {7.9.0} xupsInverterFailure — {7.10.0} Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 71 RMS Volts {10.1.0} xupsConfigInputVoltage RMS Volts {10.2.0} xupsConfigOutputWatts Watts {10.3.0} xupsConfigOutputFreq 0.1 Hertz {10.4.0} xupsConfigDateAndTime String {10.5.0} xupsConfigLowOutputVoltageLimit RMS Volts {10.6.0} xupsConfigHighOutputVoltageLimit RMS Volts {10.7.0} xupsConfigInstallDate String {10.8.0} xupsTopologyType Integer {13.1.0} Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 72: Eaton Pulsar Mib

    The Network Card-MS implements the reduced Eaton Pulsar MIB (MGE MIB); only the objects listed in Table 23 and Table 24are managed. The entire MIB description is available at www.eaton.com/powerquality. Table 24 lists objects that are managed if there is an optional EMP installed. The Eaton Pulsar MIB trap access path is 1.3.6.1.4.1.705.1.
  • Page 73 MIB Objects Table 23. Eaton Pulsar MIB (MGE MIB) Objects (Continued) MIB Object SNMP Format Add.path mginputCurrent_1 DeciAmps {6,2,1,6,1,0} mginputCurrent_2 DeciAmps {6,2,1,6,2,0} mginputCurrent_3 DeciAmps {6,2,1,6,3,0} upsmgInputBadStatus — {6,3,0} upsmgInputLineFailCause — {6,4,0} upsmgOutputPhaseNum — {7,1,0} mgoutputPhaseIndex_1 — {7,2,1,1,1,0} mgoutputPhaseIndex_2 — {7,2,1,1,2,0} mgoutputPhaseIndex_3 —...

  • Page 74: Traps

    The trap access path is 1.3.6.1.4.1.705.1.11. Table 25. MIB Traps MIB Trap Trap Trap Severity Level upsmgBatteryFault upsmgBatteryOK upsmgAtLowBattery upsmgFromLowBattery upsmgChargerFault upsmgChargerOK upsmgOnBattery upsmgReturnFromBattery upsmgOnByPass upsmgReturnFromByPass upsmgUtilityFailure upsmgUtilityRestored upsmgOverLoad upsmgLoadOK upsmgOverTemperature upsmgTemperatureOK Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 75 Trap Severity Level upsmgOffToStart upsmgOffInProgress upsmgCommunicationFailure upsmgCommunicationRestored upsmgRedundancyLost upsmgRedundancyOK upsmgProtectionLost upsmgProtectionOK Table 26. MIB Traps (EMPs) MIB Trap Trap Trap Severity Level upsEnvironmentComFailure upsEnvironmentComOK upsEnvironmentTemperatureLow upsEnvironmentTemperatureHigh upsEnvironmentTemperatureOK upsEnvironmentHumidityLow upsEnvironmentHumidityHigh upsEnvironmentHumidityOK upsEnvironmentInput1Closed upsEnvironmentInput1Open upsEnvironmentInput2Open upsEnvironmentInput2Closed Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 76: Operation And Maintenance

    Connect the card to a computer equipped with an emulator such as HyperTerminal. Set the serial link at 9600 baud, 8 bits, no parity, 1 stop bit, and no flow control. Verify that the UPS power is on. Enter the admin password (not modifiable). The Network Card-MS main menu displays (see Figure 43). ------------------------------------------------------------- Eaton Network Card-MS...
  • Page 77 Read Network settings: To view the network settings (see Figure 46). ------------------------------------------------------------- Network configuration ------------------------------------------------------------- MAC address : 00.xx.xx:FD:xC:xx Mode : Static IP IP address : xxx.xx.xxx.129 Subnet mask : 255.255.xxx.0 Gateway : xxx.xx.xxx.1 ------------------------------------------------------------- Figure 46. Read Network Settings Option Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 78 (see Figure 49). The card is now accessible using the Web with the default password admin, but you must restart the card to save the new password. Login Password has successfully been set Figure 49. Default Password Confirmation Message Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 79: Upgrading The Firmware

    Upgrading the Firmware You can update the card’s firmware by downloading the appropriate file. During the upgrade process, the Network Card-MS does not monitor the UPS status. To upgrade the firmware: Download the new firmware version to your computer from the Web and note the location.

  • Page 80: Shutdown

    At the end of the shutdown procedure, when all servers have been shut down, the UPS may shut down to avoid unnecessary discharge of its batteries, depending on its configuration. NOTE See “Shutdown Parameters” on page 29 to configure the shutdown parameters. Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...
  • Page 81 UPS Shut Off Shutdown After Battery Capacity Delay Before Shutdown 100% Remaining Autonomy If Remaining Time Under Shutdown If Remaining Shutdown Duration Capacity Under Card Parameters UPS Parameters Figure 52. Shutdown Sequence Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 82: Load Segments

    NetWatch and NSMs are compatible with load segments. After connecting the server electrically to one of the load segments, NetWatch and NSM must be informed of the load segment number to which it is connected. Refer to NetWatch/NSM documentation. Go to www.eaton.com/powerquality to download the software. Load Shedding or Sequential Shutdown You can optimize backup time by shutting down non-priority equipment or sequencing the shutdown of several devices.

  • Page 83: Sequential Startup

    Extended Power Outage, Shutdown Initiated by the Shutdown Timer (Shutdown After) During battery backup time, the Shutdown Timer of the Network Card-MS is reached. After a user-defined backup time period (see “Shutdown Parameters” on page 29), the shutdown of all servers is initiated, followed by the UPS shutdown (depending on its configuration).

  • Page 84: Power Restoration Before End Of Shutdown Duration

    Capacity Under NetWatch/NSM 1 on Main Output Shutdown Duration Output 1 Output 1 Battery Capacity Under (Output 1) NetWatch/NSM 2 on Output 1 Figure 56. Power Restoration Before End of Shutdown Duration Eaton Network Card-MS User’s Guide P-164000100—Rev 1 www.eaton.com/powerquality...

  • Page 85: Shutdown Management With Two Network Card-Ms Cards

    Table 27). Based on these values (maximum shutdown duration of all subscribed customer systems), the card sends the delayed shutdown order to the UPS. If the UPS has two Network Card-MS cards, the maximum shutdown duration of the two groups of protected systems is used for the delayed shutdown order.

  • Page 86: Specifications

    HTTP/HTTPS SMTP SNMP v1 SNMP v3 Network Protocols* TCP/IP MIB II, IETF UPS MIB, Eaton Pulsar MIB (MGE MIB), Eaton MIB Supported SNMP MIBs (PowerMIB) Operating Temperature 0C to 40C (32F to 104F) Storage Temperature -10C to 70C (14F to 158F)

  • Page 87: Service And Support

    Chapter 9 Service and Support If you have any questions or problems with the Network Card-MS, call your Local Distributor or the Help Desk at one of the following telephone numbers and ask for a Network Card-MS technical representative. United States:...

  • Page 88: Two-Year Limited Warranty (Us And Canada)

    This limited warranty (this “Warranty”) applies only to the original End-User (the LIMITED WARRANTY: “End-User”) of the Network Card-MS (the “Product”) purchased on or after June 1, 2004 and cannot be transferred. This Warranty applies even in the event that the Product is initially sold by Company for resale to an End-User.
  • Page 89 In the USA, call the Customer Reliability Center 7x24 at 800-356-5737. Outside OBTAINING WARRANTY SERVICE: of the USA, contact your local Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919-870-3149. For comments or questions about this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
