Settings
3.7.5.2.1 Actions
a Add

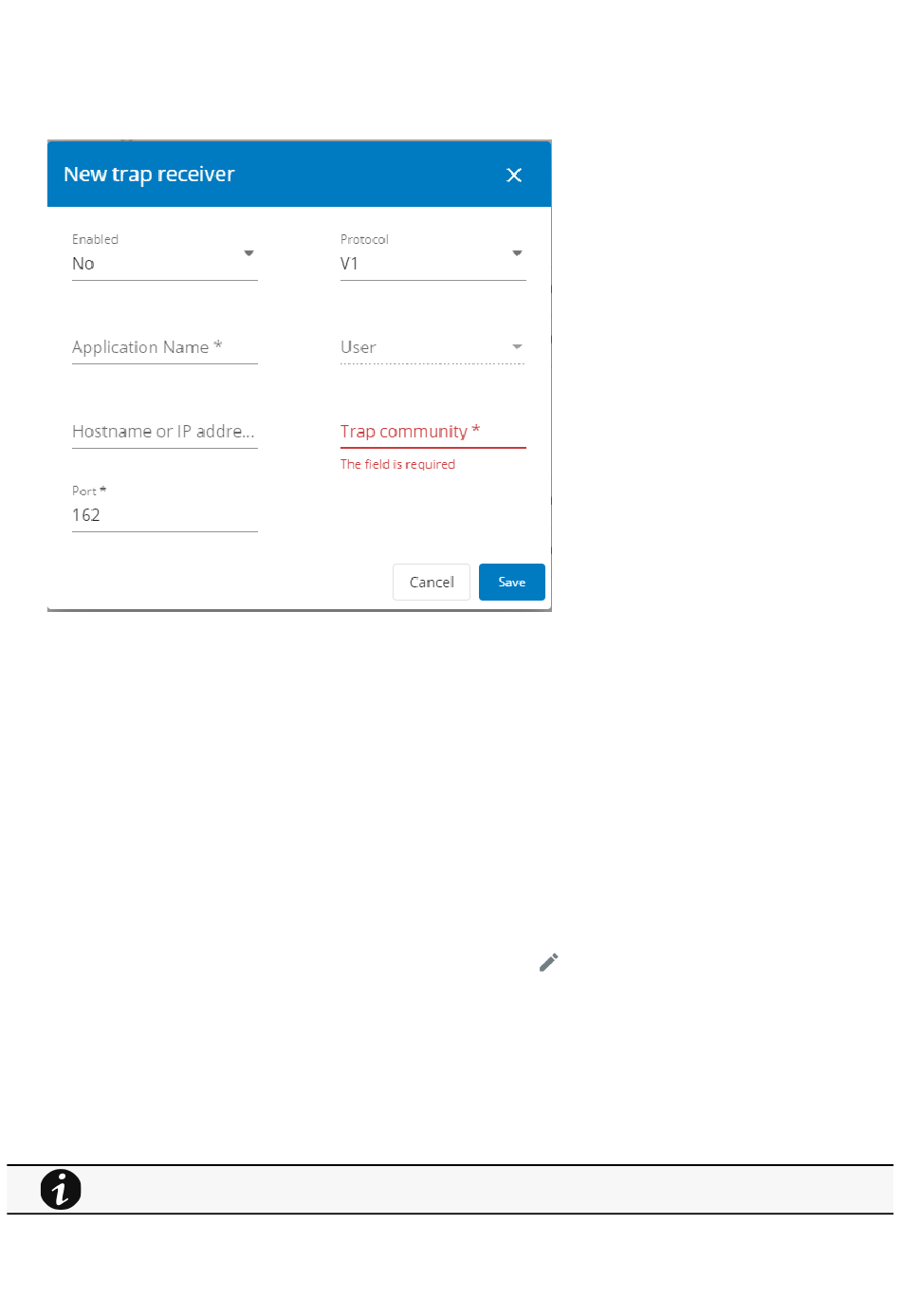

1. Press the New button to create new trap receivers.
2. Set following settings:
• Enabled – Yes/No
• Application name
• Hostname or IP address
• Port
• Protocol – V1/V3
• Trap community (V1) / User (V3)
3. Press the SAVE button.
b Remove
Select a trap receiver and press the Delete button to remove it.
c Edit
Press the pen icon to edit trap receiver information and access to its settings:
d Test trap
Press the Test trap button to send the trap test to all trap receivers.
Separate window provides the test status with following values:
• In progress
• Request successfully sent
• invalid type
For details on SNMP trap codes, see the
Contextual help of the web interface – 116
Information>>>SNMP traps section.
