Settings

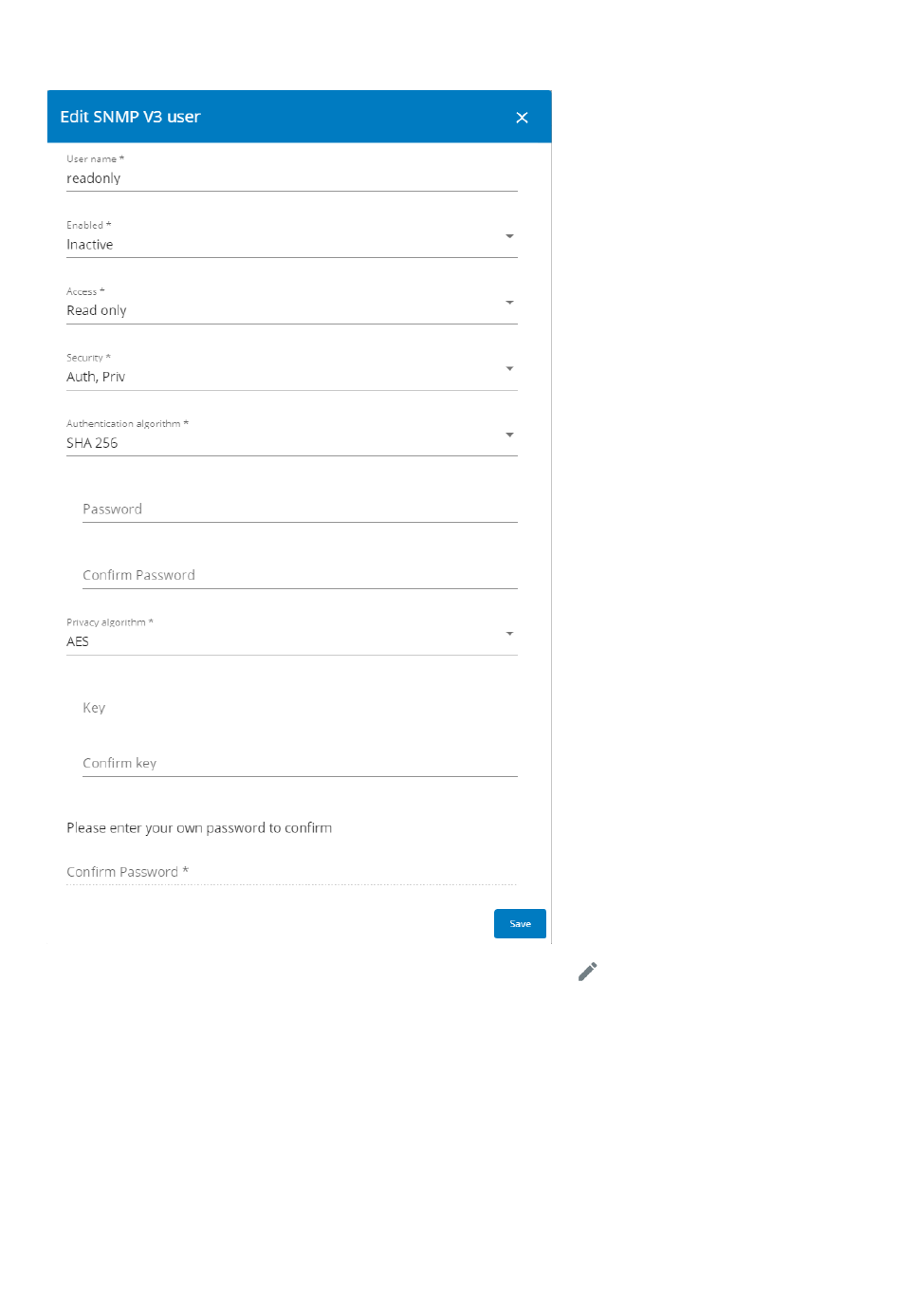

c Configure the SNMP V3 settings:
1. Click the edit icon on either Read Only or Read/Write account to access settings:
2. Edit the user name.
3. Select Active in the Enabled drop-down list to activate the account.
4. Select access level.
• Read only—The user does not use authentication and privacy to access SNMP variables.
• Read/Write—The user must use authentication, but not privacy, to access SNMP variables.
5. Select the communication security mechanism.
• Auth, Priv—Communication with authentication and privacy.
• Auth, No Priv—Communication with authentication and without privacy.
• No Auth, No Priv—Communication without authentication and privacy.
