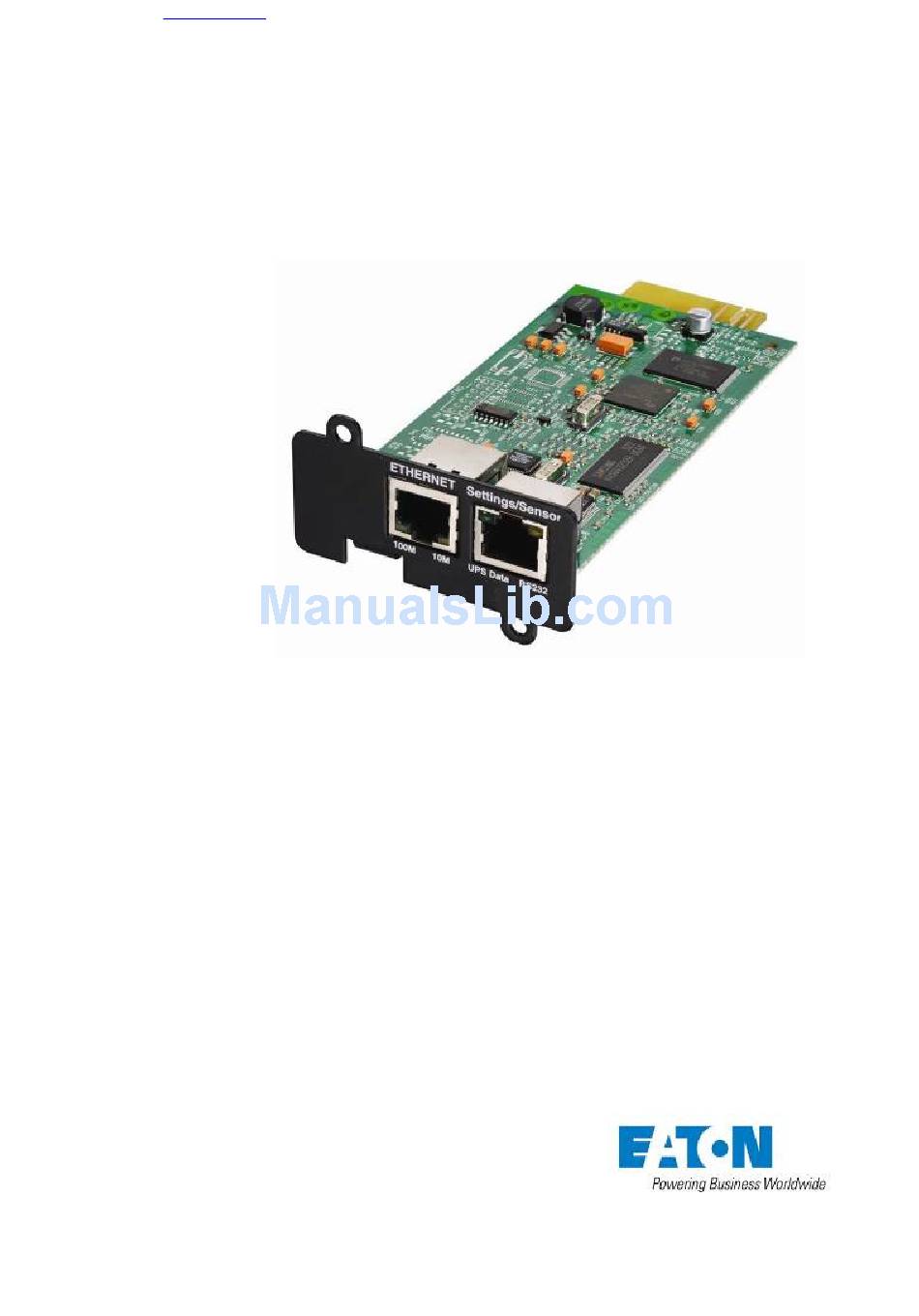

Network Management Card
– User Manual
34003991XT_EN/JC
Network
Management Card
(Network-MS)
User Manual
Page
1/143

Advertisement

Table of Contents
loading

Related Manuals for Eaton Network-MS

Summary of Contents for Eaton Network-MS

  • Page 1 Network Management Card (Network-MS) User Manual Network Management Card Page – User Manual 34003991XT_EN/JC 1/143...

  • Page 2: Table Of Contents

    Network Management Card (Network-MS) User Manual Contents EATON NETWORK SOLUTION ENERAL RESENTATION 1.1.1 Connecting the UPS to the Ethernet network 1.1.2 Protection of the computers/servers 1.1.3 Supervision of the UPSs over the network 1.1.4 Connection (NMC) RESENTATION OF THE...
  • Page 3 Network Management Card (Network-MS) User Manual 4.2.2 On-line help 4.2.3 Logging In 4.2.4 UPS control 4.2.5 UPS weekly schedule programming 4.2.6 Shutdown parameters 4.2.7 Measurements 4.2.8 Event log 4.2.9 System log OTIFICATION 4.3.1 Email Notification 4.3.2 E-mail Message Settings ONFIGURATION 4.4.1...
  • Page 4 Network Management Card (Network-MS) User Manual NTRODUCTION ETTINGS LIST 6.2.1 Network settings 6.2.2 System settings 6.2.3 Trap receivers 6.2.4 Access control 6.2.5 Shutdown settings 6.2.6 Authentication settings 6.2.7 RADIUS settings 6.2.8 LDAP settings 6.2.9 SNMP settings 6.2.10 Date and time 6.2.11...
  • Page 5 8.1.1 Table of alarms 8.1.2 Table of UPS events 8.1.3 Table of system alarms SNMP OBJECTS 8.2.1 IETF MIB 8.2.2 EATON Pulsar MIB (ex MGE) 8.2.3 TRAPS table: (1.3.6.1.4.1.705.1.11) 8.2.4 EATON Powerware MIB UTHENTICATION ONFIGURATION XAMPLE 8.3.1 RADIUS 8.3.2 LDAP...

  • Page 6: Eaton Network Solution

    Carries out automatic shutdown of computer systems, • Monitors and controls all the UPSs connected to the network. • EATON Network Solution provides 3 main functions: Supervision of the UPSs over the Network: Web browser, Intelligent Power Manager, or SNMP Network • Management System (NMS).

  • Page 7: Connecting The Ups To The Ethernet Network

    Network Management Card (Network-MS) User Manual 1.1.1 Connecting the UPS to the Ethernet network This function can be performed through network Cards inserted in the UPS (Network Management Card). Also a software "agent" running on a nearby PC that is called the IPP Shutdown controller feature can be used.

  • Page 8: Supervision Of The Upss Over The Network

    Company’s standard Network Management System (HP-Openview, CA Unicenter, HP Insight Manager, • IBM Tivoli Netview) To simplify integration of EATON UPSs, use one of the Network Management System Kits for EATON devices. These kits are available on the Software Suite CD-ROM or on the http://powerquality.eaton.com website.

  • Page 9: User Manual

    Set up the Network Management Card (see user manual). Install and configure the protection application on all machines that are to be protected by the UPS: Intelligent Power Protector for EATON Pulsar series UPS: The software components for each platform •...

  • Page 10: Presentation Of The Network Management Card (Nmc)

    Network Management Card (Network-MS) User Manual 1.2 Presentation of the Network Management Card (NMC) 1.2.1 Compatibility with UPSs The Minislot Network Management Card is compatible with the UPS listed into the compatibility list: Pulsar MX All models MX, MX frame...

  • Page 11: Direct Sending Of E-Mail

    Network Management Card (Network-MS) User Manual NMC also supplies alarms to the Intelligent Power Protector in order to trigger shutdowns or manage other automatic actions on protected servers. 1.2.2 Direct sending of E-mail When a UPS event occurs, the Network Management Card can directly notify up to 4 addresses by e-mail. (see...

  • Page 12: Technical Data

    Network Management Card (Network-MS) User Manual 1.3 Technical data 1.3.1 Hardware characteristics Dimensions Dimensions (L x l x H) 132 x 66 x 42 mm • Weight (gr) 70 g • Storage Storage temperature -10 ° C to 70 ° C •...

  • Page 13: Administration

    Network Management Card (Network-MS) User Manual 1.3.4 Administration NEW features: • External User Authentication from RADIUS or LDAP Up to 35 workstations (in TCP connected mode) or up to 100(in UDP broadcasted mode) protected by • Intelligent Power Protector.

  • Page 14: Environment Sensor

    The card is Compatible with following MIBs: • MIB II (RFC 1213) • Internet Engineering Task Force (IETF) Standard UPS MIB (RFC 1628) • EATON Pulsar MIB (ex MGE) V1.7 • EATON Powerware MIB (PowerMib) • • See the Chapter appendix •...

  • Page 15: Default Parameters

    Network Management Card (Network-MS) User Manual 1.3.8 Default parameters Function Parameter Default value Possible value Network IP address 192.168.1.2 Network IP address Subnet mask 255.255.0.0 Network IP address Gateway Address 0.0.0.0 Network IP address BOOTP/DHCP Enabled Active / Deactivated...
  • Page 16 Network Management Card (Network-MS) User Manual SNMP Community name read public 32 characters maximum SNMP port 1 to 65535 Trap port 1 to 65535 SNMP Version V1&V3 Disabled,V1,V3,V1&V3 Read-Only User readuser 1 character minimum, 32 characters maximum Read-Only Security Level...

  • Page 17: Installation

    Network Management Card (Network-MS) User Manual 2 Installation 2.1 Unpacking and check on contents The installation kit contents: A Network Management Card (Network-MS) • A serial communication cable for configuration (720-C2270-00) • Installation manual ( 34003905 • 2.2 Indications...

  • Page 18: Installation In The Ups

    (option). 2.3 Installation in the UPS The Network Management Card (Network-MS) is "hot-swappable". It can be installed in all UPSs of the EATON Pulsar series or EATON Powerware series equipped with a Minislot without having to shut it down. On the UPS, remove the cover from the Minislot •...

  • Page 19: Sensor Installation (Option)

    Network Management Card (Network-MS) User Manual 2.4 Sensor installation (option) The Environment sensor is available as an option for the Network Management Card and is available from EATON (EMP). The sensor allows remote monitoring of the UPS's environment through regular measurements: temperature, humidity, status of two external contacts.

  • Page 20: Configuration

    Network Management Card (Network-MS) User Manual 3 Configuration 3.1 Configure IP parameters Once the card has started: Connect one end of the cable (34003918) to the Service port. Connect the other end of the cable to the COM port (IOIOI) of a PC.

  • Page 21: Your Network Is Equipped With A Dhcpv4 Server

    Network Management Card (Network-MS) User Manual 3.1.1 Your network is equipped with a DHCPv4 server The card is configured by default with this service activated. The card automatically collects IP parameters. To know the IP parameters, type 2, the next menu is displayed:...

  • Page 22: Your Network Is Not Equipped With A Dhcpv4 Server

    Network Management Card (Network-MS) User Manual 3.1.2 Your network is not equipped with a DHCPv4 server In the main menu enter 2, then 2 again. The menu is displayed: Follow the instructions and enter the static IP parameters. At the end of the menu, wait for the "Done" message to be displayed indicating that the IP parameters have been saved.

  • Page 23: Supervision And Administration By Browser

    Network Management Card (Network-MS) User Manual 4 Supervision and administration by browser On a computer equipped with a Web browser (Internet Explorer, FireFox, Google chrome or Opera • recommended), enter the address initialised previously in the Installation chapter. The "UPS properties" home page is displayed.

  • Page 24: Ups

    Network Management Card (Network-MS) User Manual 4.2 UPS 4.2.1 UPS properties page Essential information about the UPS status is available on the UPS Properties page (see Figure), which • refreshes automatically every ten seconds. The UPS Properties page shows an image and generic name of the UPS range. You can customize •...
  • Page 25 Network Management Card (Network-MS) User Manual 4.2.1.1 UPS status icons. The various icons showing the status of the UPS are: Normal operation Alarm present. This icon links directly to the alarm page. Loss of communication with the UPS Animated synoptic: An animated synoptic gives a global overview of the UPS current operating mode.
  • Page 26 Network Management Card (Network-MS) User Manual AC Normal Flow: • Yellow AC to DC converter powered by AC Normal Gray AC to DC converter not powered by AC Normal AC to DC Converter: • Green Powered Gray Not powered...
  • Page 27 Network Management Card (Network-MS) User Manual DC to AC Converter : • Green Powered Gray Not powered Internal failure DC to AC Converter Output: • Yellow Energy flow present Gray No energy flow AC Bypass Input: • Green In tolerances Out of tolerances •...
  • Page 28 Network Management Card (Network-MS) User Manual AC Output Flow: • Yellow Energy flow present Gray No energy flow (or Load = 0%) AC Output: • Green Load protected Load not protected Network Management Card Page – User Manual 34003991XT_EN/JC...
  • Page 29 Network Management Card (Network-MS) User Manual UPS measurements • Place the cursor over an element in the diagram to display the UPS measurement detail (see Figure). These measurements are available for Input, Battery, Output, and Bypass mode. The available measurements depend...

  • Page 30: Ups Status

    Network Management Card (Network-MS) User Manual 4.2.1.2 UPS status Active sources: (available on parallel or modular UPS) • x UPS + y UPS redundant : x indicates the minimal number of UPS necessary to power the load, y indicates the number of UPS in redundancy.
  • Page 31 Network Management Card (Network-MS) User Manual 4.2.1.3 Viewing the modules (Only with Eaton MX Frame UPS) Click on UPS Modules scroll list to view the information about the UPS modules. • Active sources: • x UPS + y UPS redundant : x indicates the minimal number of UPS necessary to power the load, y indicates the number of UPS in redundancy.
  • Page 32 Network Management Card (Network-MS) User Manual can take the next forms: Status • when the module is working properly with no alarm. when the module has at least one alarm (level Warning) active. when the module has at least one alarm (level Critical) active.
  • Page 33 • sum of these 3 consumptions is also given. Note: The consumptions are only available with UPS Eaton 5PX, 5P, 9PX and 9SX. The consumption of each output is only available with UPS Eaton 5PX. The displaying is the following :...
  • Page 34 Network Management Card (Network-MS) User Manual 4.2.1.5 Viewing the alarms Click on "Alarm Table" scroll list to view the list of current alarms. The table of managed alarms is included in the appendix. The level of the alarms appears like below:...
  • Page 35 Network Management Card (Network-MS) User Manual Alarm table for modular UPS: • Network Management Card Page – User Manual 34003991XT_EN/JC 35/143...
  • Page 36 Network Management Card (Network-MS) User Manual 4.2.1.6 Viewing the “About your UPS” page Click on About your UPS scroll list to view the information about the UPS and the card. Network Management Card Page – User Manual 34003991XT_EN/JC 36/143...

  • Page 37: On-Line Help

    Network Management Card (Network-MS) User Manual 4.2.2 On-line help On-line contextual help in English is available at the top of each page by clicking on the Help link, which is always located on the top right corner. The navigation menu of the on-line help is identical to that of the card's pages.

  • Page 38: Logging In

    Network Management Card (Network-MS) User Manual 4.2.3 Logging In By default, the user name and password are both admin for the local account (see Figure). If an external authentication is used, the username and password will be those defined in LDAP or RADIUS authentication depending on the type chosen.

  • Page 39: Ups Control

    Network Management Card (Network-MS) User Manual 4.2.4 UPS control UPS configuration may prevent the shutdown and restart commands from being properly run. Read the UPS user manual for more information. This page enables triggering of startup and shutdown sequences for the UPS main output and controlled outlets.
  • Page 40 Network Management Card (Network-MS) User Manual Immediate On: A sequence to switch on output power is launched immediately. The output is re- • powered and the systems supplied start up correctly. Delayed, safe power down: This is the same switch off sequence as for the "Safe power down"...

  • Page 41: Ups Weekly Schedule Programming

    Network Management Card (Network-MS) User Manual 4.2.5 UPS weekly schedule programming Click on the Weekly schedule section of the menu. UPS configuration may prevent the shutdown and restart commands from being properly run. Read the UPS user manual for more information.

  • Page 42: Shutdown Parameters

    Network Management Card (Network-MS) User Manual 4.2.6 Shutdown parameters This page enables viewing and configuration of UPS operating parameters in battery mode and for power restoration. Click on the Shutdown parameters section in the menu to see the list of parameters.
  • Page 43 Network Management Card (Network-MS) User Manual For the main outlet ("Master" by default) The first shutdown criteria initiates the restart of the shutdown sequence. If remaining time is under (0 to 99999 seconds, 180 by default) is the minimum remaining backup time •...

  • Page 44: Measurements

    Network Management Card (Network-MS) User Manual 4.2.7 Measurements Click on "Measurements" in the menu The next window shows the measurements for a single phase UPS. • The following measurements are saved and time-stamped (About. 430): AC Normal : Voltage: Value of the utility voltage supplying the UPS •...

  • Page 45: Event Log

    Network Management Card (Network-MS) User Manual 4.2.8 Event log Click on Event Log in the menu • Save log enables all saved values to be opened or saved in CSV format. (compatible with Excel type • spread sheets) Clear log enables deletion of all records. The administrator must enter his/her login / password to •...

  • Page 46: System Log

    Network Management Card (Network-MS) User Manual 4.2.9 System log Click on System log. in the menu • Save log enables all saved values to be opened or saved in CSV format. (compatible with Excel type • spread sheets) Clear log enables deletion of all records. The administrator must enter his/her login / password to •...

  • Page 47: Notification

    Recipient: (Field is limited to 99 characters) this is the e-mail address of the person or department to receive the e-mail. The default value is : recipientx@domain.com eNotify: This parameter enables communications to the Eaton eNotify Monitoring and Diagnostics Service. NOTE: Available only for customers with a valid eNotify Service Contract.
  • Page 48 Network Management Card (Network-MS) User Manual in CSV format Periodic report: In addition to the e-mails sent when events occur, a periodic e-mail containing the 3 log files (or 4 when the optional Sensor is connected) can be sent to the recipient every x days at the time specified by the user.

  • Page 49: E-Mail Message Settings

    Network Management Card (Network-MS) User Manual 4.3.2 E-mail Message Settings This page enables customisation of the content of the messages received by recipients of e-mails sent by the card. Customisation is common to the four recipients that can be notified (see E-mail notification).
  • Page 50 Network Management Card (Network-MS) User Manual Network Management Card Page – User Manual 34003991XT_EN/JC 50/143...

  • Page 51: Configuration

    Network Management Card (Network-MS) User Manual 4.4 Configuration 4.4.1 Network settings Click on Network in the menu. This menu enables the administrator to configure the network parameters of the card and authorisation of the remote upgrade of the embedded system.
  • Page 52 Network Management Card (Network-MS) User Manual Sequence with BootP/DHCP server: After each startup, the card makes 3 attempts to recover the network parameters. If no response is received from the server, the card boots with the last saved parameters from the previous start. These parameters are those shown on the page.
  • Page 53 Network Management Card (Network-MS) User Manual not editable. Always available when the IPV6 is enabled. IPv6 Address 2: • If Auto Config is enabled: this field displays the second IPv6 address built from the IPv6 router (not • editable).

  • Page 54: Radius

    Network Management Card (Network-MS) User Manual 4.4.2 RADIUS 4.4.2.1 Setting Page Configuration Click on RADIUS in the menu. This menu allows the administrator to configure RADIUS settings on the card. They are editable only if the parameter of the External Authentication on the Access control Access controlpage is set to RADIUS.
  • Page 55 Two radius attributes are used to manage admin authorization: An IETF attribute: Service-Type (6) • An Eaton Vendor Specific Attribute (534): Eaton-UserLevel (28) • If one of these attribute is present with the value as defined in the following table the access of the card is...

  • Page 56: Ldap

    Network Management Card (Network-MS) User Manual 4.4.3 LDAP 4.4.3.1 Setting Page Configuration Click on LDAP in the menu. This menu allows the administrator to configure LDAP settings on the card. The settings on this page are editable only if the parameter of the External Authentication on the Access control page is set to LDAP.
  • Page 57 Network Management Card (Network-MS) User Manual User Base DN: identifies the database entry from which the user search is started. • User Object: identifies the LDAP class of the user object. • User Attribute: identifies the attribute name where the login identifier is stored.
  • Page 58 Network Management Card (Network-MS) User Manual 4.4.3.2 Authorization management When an authorization mode is set, the “UPSAdministrators” string is searched in the LDAP Directory. Consequently, the LDAP Directory must be updated in the following way to allow users to open Web session in the NCM card: If the mode is “By User Attribute”: the administrator must set the LDAP attribute defined by the "Group...

  • Page 59: System

    Network Management Card (Network-MS) User Manual 4.4.4 System Click on System in the menu. This menu enables the customisation of the information on the UPS properties pages. UPS Contact: This text field is limited to 49 characters. Enter the name of the person responsible for •...

  • Page 60: Notified Applications

    Network Management Card (Network-MS) User Manual 4.4.5 Notified Applications Click on Notified Applications in the menu. This menu enables: The addition of the supervision stations receiving traps and configuration of the trap type. • To list all the Notified Applications and the main parameters.
  • Page 61 Network Management Card (Network-MS) User Manual Application Name: Given by the application at subscription time. • Output: number of the UPS output from which the client is powered. • Configuration: shows where the parameters of the Intelligent Power Protector come from: Local •...
  • Page 62 Network Management Card (Network-MS) User Manual By default, the MIB filter selected corresponds to UPS: Pulsar or Powerware. Network Management Card Page – User Manual 34003991XT_EN/JC 62/143...

  • Page 63: Central Shutdown Configuration

    Network Management Card (Network-MS) User Manual 4.4.6 Central shutdown configuration Note: Intelligent Power® Manager provides more advanced configuration management features Click on Notified Applications in the menu, then Configuration. This page is used to define either the "shutdown" or the "notification" settings used by the Intelligent Power Protector that connects to Network Management Card.

  • Page 64: Access Control

    Network Management Card (Network-MS) User Manual 4.4.7 Access control Click on Access Control in the menu. This menu enables configuration of the different parameters enabling secure access to the card via a browser. Enter New Manager Login: The login user name. This text field (limited to thirty characters) enables •...
  • Page 65 Network Management Card (Network-MS) User Manual Connections with Intelligent Power Protector stay in standard mode (secure TCP) SSL Security Implementation: version 3.0 version 1.0 Method TLS_RSA_WITH_512_MD5 Certificate 1024 bits Auth Key Exchange Encryption RC4_512 Digest Changes take effect after a card reboot Telnet access: This parameter enables the access to the setting parameters interface via a Telnet/SSHI •...

  • Page 66: Snmp Setting

    Network Management Card (Network-MS) User Manual 4.4.8 SNMP Setting Click on SNMP in the menu. To access this page, the login and password are systematically requested if they have not already been entered. This menu enables configuration of the SNMP security parameters.
  • Page 67 Network Management Card (Network-MS) User Manual Auth No Priv: the user must use authentication and NOT privacy to access to SNMP variables. • Auth Priv: the user must use authentication and privacy to access to SNMP variables. • The Read-Only Authentication Password: allows administrator to specify a new authentication •...

  • Page 68: Date And Time

    Network Management Card (Network-MS) User Manual 4.4.9 Date and time Click on Date and Time in the menu. This menu enables initialisation of the date and time of the card in three different ways. The date format is always of year/month/day type Set manually: Enables initialisation of the date and time of the card, with the values entered in the Date •...
  • Page 69 Network Management Card (Network-MS) User Manual 1. Select the Week number, Day, Month, and Time for which daylight saving time should start. For example, if daylight saving time starts the second Sunday of March at 2:00 am, select Second Sunday and March, and then enter 02:00.

  • Page 70: Firmware Upload

    Network Management Card (Network-MS) User Manual 4.4.10 Firmware upload Click on Firmware Upload in the menu. This menu enables a new firmware version to be uploaded To upload a new version of the card's firmware, select the file to be loaded using the Browse… button and click Upload.

  • Page 71: Environment Sensor (Option)

    Network Management Card (Network-MS) User Manual 4.5 Environment Sensor (option) The environment sensor (66846) is an option that enables temperature and humidity to be measured, and indication of the position of two external contacts. It is connected with a standard network cable to the Card Settings port of the Network Management Card.

  • Page 72: Environment Status

    Network Management Card (Network-MS) User Manual 4.5.2 Environment Status For both measurements, a graduated gauge proposes the following functions: The cursor indicates the current value. Two red zones to the left and right represent the high and low thresholds that can be set on the Environment Settings page.

  • Page 73: Environment Settings

    Network Management Card (Network-MS) User Manual 4.5.3 Environment Settings The environment sensor measures temperature, humidity and gives the status of the 2 contacts (used for door, alarms or generator unit). The temperature and humidity thresholds can be adjusted and can trigger notification and correct shutdown of the protected system.
  • Page 74 Network Management Card (Network-MS) User Manual The high alarm disappears when the value drops below the High threshold - Hysteresis value The low alarm disappears when the value returns above the Low threshold + Hysteresis value Input #1 and Input #2: Enter an identifier corresponding to the acquired contact (e.g.: rack door, air conditioning, generator unit, etc.).

  • Page 75: Log

    Network Management Card (Network-MS) User Manual 4.5.4 Log The two environment sensor measurements: Temperature and Humidity are recorded at an interval defined by the Environment log interval in the System settings page. By default, this period is 300 seconds.

  • Page 76: Server Protection

    Network Management Card (Network-MS) User Manual Server protection 5.1 Set-up of the shutdown parameters The protection application: Intelligent Power Protector, on protected server boot, subscribes itself automatically to notified applications list and sends its essential data: IP Address or hostname of the server on which it is installed: So that the card can inform it of power •...
  • Page 77 Network Management Card (Network-MS) User Manual Utility failure Start of the shutdown sequence UPS Shut off Shutdown after : Battery capacity Delay before shutdown 100% Remaining autonomy If remaining time under Shutdown if Shutdown duration remainig capacity under Card parameters UPS parameters 5.1.1.1 Backup time before initiating the shutdown procedure...
  • Page 78 Network Management Card (Network-MS) User Manual The card does not accept values less than that programmed in the UPS. Check the UPS documentation. 5.1.1.3 Shutdown when backup time is less than When the Network Management Card detects that the percentage of backup time remaining is less than the value set, the shutdown sequence is started.

  • Page 79: Controlled Outlets

    Network Management Card (Network-MS) User Manual 5.1.2 Controlled outlets Certain UPS models are equipped with controlled outlets (generally 2) which are always dependant on the UPS's main outlet. Shutdown of the main outlet systematically causes shutdown of the programmable outlets.
  • Page 80 Network Management Card (Network-MS) User Manual Two shutdown criteria are possible: Shutdown of outlets after a set battery back-up time (After) • Shutdown of outlets at a given battery discharge level (if battery capacity under) • It is possible to specify values for both criteria. The first criterion reached will initiate server shutdown.

  • Page 81: The Different Server And Ups Shutdown Sequences

    Network Management Card (Network-MS) User Manual 5.2 The different server and UPS shutdown sequences 5.2.1 Extended power outage, shutdown initiated by the Shutdown Timer (Shutdown after) During battery backup time, the Shutdown Timer of the Network Management Card is reached: After a user-...

  • Page 82: Case Of Power Restoration Before The End Of The "Shutdown Duration" Counter

    Network Management Card (Network-MS) User Manual Start shutdown main Start shutdown Utility failure Utility restore output output 1 Utility Shutdown duration Main output Battery capacity under: NSM 1 on main output Shutdown duration output 1 Output 1 Battery capacity...

  • Page 83: Shutdown Management With 2 Nmc Boards

    Network Management Card (Network-MS) User Manual 5.3 Shutdown management with 2 NMC boards Certain UPS can have 2 NMC boards in order to: Increase the number of protected servers, • Protect 2 groups of server connected to different networks physically separated.

  • Page 84: Telnet/Ssh/Cli Interfaces

    Network Management Card (Network-MS) User Manual 6 TELNET/SSH/CLI interfaces 6.1 Introduction This chapter describes how to use the Telnet/SSH/CLI interfaces of the IBM Network Management Card. 6.2 Settings list The parameters accessible via Telnet, SSH or CLI are the same as those offered by WEB interface.

  • Page 85: System Settings

    Network Management Card (Network-MS) User Manual 6.2.2 System settings These settings enable the customisation of the information on the UPS properties pages. The parameter list is the following: UPS contact • UPS location • History log interval • Environment log interval •...

  • Page 86: Authentication Settings

    Network Management Card (Network-MS) User Manual Shutdown timer selected • Shutdown duration • Battery capacity exceeds • Outlet 2 & 3: • Name • Switch off after • Remaining capacity limit • Shutdown duration • Switch on after •...

  • Page 87: Snmp Settings

    Network Management Card (Network-MS) User Manual Port • Time Out • 6.2.9 SNMP settings These settings configure the 2 SNMP versions available, v1 and v3. The parameter list is the following: Version • SNMP port • SNMP v1 community Read-Only •...

  • Page 88: Menu Interface

    Network Management Card (Network-MS) User Manual Low notify • High shutdown • Low shutdown • Humidity: • High threshold • Low threshold • Hysteresis • Offset • High notify • Low notify • High shutdown • Low shutdown •...

  • Page 89: Tree Description

    Network Management Card (Network-MS) User Manual Settings in read-only mode: yellow. • Warning message: green. • Error message: light red. • 6.3.1 Tree description Main menu Reset menu Network menu MAC address ../.. SMTP menu Host name ../.. SNMP menu Version ../..

  • Page 90: Main Menu

    Network Management Card (Network-MS) User Manual Session Time Max Session Time Radius Menu Primary Server: Enable Radius Menu Primary Server: Name Radius Menu Primary Server: Secret Radius Menu Primary Server: Port Radius Menu Primary Server: Radius Menu Primary Server:...

  • Page 91: Reset Item

    Network Management Card (Network-MS) User Manual ------------------------------------------------------------------------ NETWORK MANAGEMENT CARD Main menu ------------------------------------------------------------------------ 1 : Reset 2 : Network settings 3 : Trap receivers 4 : System settings 5 : Shutdown settings 6 : Access control 7 : Date and Time...
  • Page 92 Network Management Card (Network-MS) User Manual ------------------------------------------------------------------------ NETWORK MANAGEMENT CARD Network settings ------------------------------------------------------------------------ : MAC address [00:20:85:FD:1C:07] 1 : BootP/DHCP (0=Disabled, 1=Enabled) [1] 2 : IP Address [xxx.xxx.xxx.xxx] 3 : Subnet Mask [xxx.xxx.xxx.xxx] (1) 4 : Gateway Address [xxx.xxx.xxx.xxx] 5 : Host Name [ups1] 6 : UPS Domain Name [ups.domain.com]...

  • Page 93: Trap Receivers Menu

    Network Management Card (Network-MS) User Manual ------------------------------------------------------------------------ NETWORK MANAGEMENT CARD Network settings - SNMP ------------------------------------------------------------------------ 1 : Version (Disabled, V1, V3, V1V3) [V1V3] 2 : SNMP port (Default value: 161) [161] ** About V1 ** 3 : Community read-only [publicuser]...

  • Page 94: System Menu

    Network Management Card (Network-MS) User Manual ------------------------------------------------------------------------ NETWORK MANAGEMENT CARD Trap receiver X ------------------------------------------------------------------------ 1 : Hostname or IP address [xxx. xxx. xxx. xxx] 2 : Application mane [MyTrap] 3 : Trap Port (Default value: 162) [162 ] 3 : Trap community [ ]...

  • Page 95: Access Control Menu

    Network Management Card (Network-MS) User Manual ------------------------------------------------------------------------ NETWORK MANAGEMENT CARD Shutdown settings - Master ------------------------------------------------------------------------ 1 : Name [Master] 2 : Shutdown if remaining time under (sec) [180] 3 : Shutdown if capacity under (%) [20] 4 : Shutdown timer enabled (0=No, 1=Yes) [0]...

  • Page 96: Date And Time Menu

    Network Management Card (Network-MS) User Manual 6.3.9 Date and time menu This menu defines the date and time management. ------------------------------------------------------------------------ NETWORK MANAGEMENT CARD Date & Time settings ------------------------------------------------------------------------ 1 : Date (yyyy/mm/dd) [2010/11/05] 2 : Hour (HH:MM:SS] [11:30:00] 3 : Type of synchronization (MANUAL, AUTO, NTP) [MANUAL]...
  • Page 97 Network Management Card (Network-MS) User Manual ------------------------------------------------------------------------ NETWORK MANAGEMENT CARD Environment settings - Temperature ------------------------------------------------------------------------ 1 : Unity (C=Celsius, F=Farenheit) [C] 2 : High Threshold [40 ] 3 : Low Threshold [5] 4 : Hysteresis [2] 5 : Offset [0.0]...

  • Page 98: Authentication Settings

    0 : Exit ------------------------------------------------------------------------ 6.3.11 Authentication settings These menus define the settings of the authentication. ----------------------------------------------------------------------------- EATON NETWORK MANAGEMENT CARD Authentication settings ----------------------------------------------------------------------------- 1 : Authentication Method (LOCAL, RADIUS, LDAP) [LDAP] 2 : Authentication Order (Local_Only, Local_External, External_Local, External_Only) [Local_External]...
  • Page 99 Network Management Card (Network-MS) User Manual ----------------------------------------------------------------------------- EATON NETWORK MANAGEMENT CARD Radius settings ----------------------------------------------------------------------------- *** About Primary Server *** 1 : Enable (0=No, 1=Yes) [0] 2 : Name [] 3 : Secret 4 : Port [1812] 5 : NAS (IPV4, IPV6_1, IPV6_2, IPV6_LOCAL) [IPV4]...

  • Page 100: Return To Default Login/Password

    Network Management Card (Network-MS) User Manual ----------------------------------------------------------------------------- EATON NETWORK MANAGEMENT CARD LDAP settings ----------------------------------------------------------------------------- *** About Primary Server *** 1 : Enable (0=No, 1=Yes) [1] 2 : Name [10.130.32.6] 3 : Port [389] *** About Secondary Server *** 4 : Enable (0=No, 1=Yes) [0]...

  • Page 101: Generic Command

    Network Management Card (Network-MS) User Manual not allowed in command arguments except for the strings. The strings are in double quotes (“”). The code colour is the following: Setting in read-write or write-only mode: light green • Setting in read-only mode: yellow •...

  • Page 102: Network Settings

    Network Management Card (Network-MS) User Manual 6.4.1.6 “defaultPass” Purpose Returns to default Login/Password Syntax defaultPass Examples #> defaultPass 6.4.1.7 “defaultConf” Purpose Returns to default Configuration Syntax defaultConf Examples #> defaultConf Comments The card is automatically reset. 6.4.2 Network settings 6.4.2.1 “getNetwork”...
  • Page 103 Network Management Card (Network-MS) User Manual IPMask = “xxx.xxx.xxx.xxx” IPGateway = “xxx.xxx.xxx.xxx” HostName = “xx..xx” DomainName = “xx..xx” IPv6Enable = 0|1 (0=No, 1=Yes) IPv6AutoConf = 0|1 (0=No, 1=Yes) (3)(4) IPv6Address1 = “xx.xx/xxx” PrefixLength = xx IPv6DefaultGateway [= ] PrimaryDNS = “xx..xx”...
  • Page 104 Network Management Card (Network-MS) User Manual Examples #> setSMTP HostName = “Smtp Server” Comments : Writing enabled according to “Authentication” status : Don’t forget to set echo off 6.4.2.5 “getSNMP” Purpose To read a SNMP setting Syntax getSNMP [option1] [option2]...

  • Page 105: Trap Receivers

    Network Management Card (Network-MS) User Manual NotificationUserName = “xx.xx” FirmwareUpgrade = 0|1 (0=No, 1=Yes) Examples #> setSNMP User = “readuser” Comments : Writing enabled according to “snmpVersion” status : Writing enabled according to “WriteCommunitySecurityLevel” status : Writing enabled according to “UserSecurityLevel” status : Writing enabled according to “AdminSecurityLevel”...

  • Page 106: System Settings

    Network Management Card (Network-MS) User Manual bit2 = 1 : MIB IETF enabled 6.4.4 System settings 6.4.4.1 “getSystem” Purpose To read a system setting Syntax getSystem [option1] [option2]... options : Contact Location upsCustomName Language Examples #> getSystem Location Comments 6.4.4.2...

  • Page 107: Shutdown Settings

    Network Management Card (Network-MS) User Manual Examples #> setHistSyst Interval=12 Comments 6.4.4.5 “getEnvSyst” Purpose To read a environment system setting Syntax getEnvSyst [option1] [option2] options : Interval Delimiter Examples #> getEnvSyst Delimiter Comments 6.4.4.6 “setEnvSyst” Purpose To modify a environment system setting...

  • Page 108: Access Control Settings

    Network Management Card (Network-MS) User Manual StartupTimer Examples #> getShutdown 1 ShutdownDuration Comments 6.4.5.2 “setShutdown” Purpose To modify a shutdown setting Syntax setShutdown N [option1] [option2] ... N = 1|2|3 options for N=1: iName = “xx..xx” RunTimeToEmptyLimit = xx (0..9999 in sec) RemainingCapacityLimit = xx (0..100 in sec)

  • Page 109: Authentication Settings

    Network Management Card (Network-MS) User Manual options : Login = “xx..xx” (1)(2) Password = “**..**” (1)(2) ConfirmPass = “**..**” Security = 1|2|3 (1=conf., 2=full auth., 3=full auth. & SSL) Examples #> setAccess Security=3 Comments : Don’t forget to set echo off : The 2 passwords entered must be the same for to be taken into account 6.4.6.3 “getTelnet”...
  • Page 110 Network Management Card (Network-MS) User Manual Examples #> getAuth SessionTime Comments 6.4.7.2 “setAuth” Purpose To modify an Authentication setting Syntax syntax: setAuth [options...] options: SessionTime=xx <-- in sec. 1..9999 --> MaxSessionTime=xx <-- in sec. 1..9999 --> AuthOrder=Local_Only|Local_External|External_Local|External_Only AuthMethod=LOCAL|RADIUS|LDAP Examples #>...
  • Page 111 Network Management Card (Network-MS) User Manual Comments : Writing enabled according to “AuthMethod” status : Writing enabled according to “Enable” status 6.4.7.5 ”getRadSecondSrv” Purpose To read an Radius secondary server setting Syntax syntax: getRadSecondSrv [options...] options: Server Enable <-- 0=No, 1=Yes -->...
  • Page 112 Network Management Card (Network-MS) User Manual Comments 6.4.7.8 “setLDAPPrimSrv” Purpose To modify an LDAP primary server setting Syntax syntax: setLDAPPrimSrv [options...] options: Enable <-- 0=No, 1=Yes --> (1) (2) ServerName="Server Name" (1) (2) Port=xx <-- 1..65535 --> Examples #> setLDAPPrimSrv Port =389 Comments : Writing enabled according to “AuthMethod”...

  • Page 113: Date And Time Settings

    Network Management Card (Network-MS) User Manual SearchUser SearchUserPassword UserBaseSearchDn UserObject UserAttr AuthzMode UPSGroupNameAttr UserNameAttr GroupBaseSearchDn Examples #> getLDAPSearch AuthMechanism Comments 6.4.7.12 ” setLDAPSearch” Purpose To modify the Search LDAP setting Syntax syntax: setSearchLDAP [options...] options: AuthMechanism=SIMPLE|DIGEST-MD5 SearchMode=ANONYMOUS|USERBIND (1) (2) SearchUser="Search User (Distinguished Name)"...

  • Page 114: Environment Settings

    Network Management Card (Network-MS) User Manual Time TimeSync TimeNtp TimeZone TimeDaylight Examples #> getDate timeSync Comments 6.4.8.2 “setDate” Purpose To modify a date and time setting Syntax setDate [option1] [option2]... options : Date = yyyy/mm/dd Time = hh:mm:ss TimeSync = MANUAL|AUTO|NTP TimeNtp = “xx..xx”...
  • Page 115 Network Management Card (Network-MS) User Manual 6.4.9.3 “getTemp” Purpose To read a temperature setting Syntax getTemp [option1] [option2] ... options : Unit HighThreshold LowThreshold Hysteresis Offset HighNotify LowNotify HighShutdown LowShutdown Examples #> getTemp Unit Comments 6.4.9.4 “setTemp” Purpose To modify a temperature setting Syntax setTemp [option1] [option2] ...
  • Page 116 Network Management Card (Network-MS) User Manual HighNotify LowNotify HighShutdown LowShutdown Examples #> getHum Offset Comments 6.4.9.6 “setHum” Purpose To modify a humidity setting Syntax setHum [option1] [option2] ... options : HighThreshold = xx LowThreshold =xx Hysteresis = xx (0..5) Offset = xx (-5..5)

  • Page 117: Constraints/Limitations

    Network Management Card (Network-MS) User Manual iName = “xx..xx” State[0].Description = “xx..xx” State[0].Notify = 0|1 (0=No, 1=Yes) State[0].Shutdown = 0|1 (0=No, 1=Yes) State[1].Description = “xx..xx” State[1].Notify = 0|1 (0=No, 1=Yes) State[1].Shutdown = 0|1 (0=No, 1=Yes) Examples #> setInput1 State[0].Label = “Door open” State[0].Notify = 1...

  • Page 118: Configuration Via Rs232

    Network Management Card (Network-MS) User Manual 7 Configuration via RS232 Use the cord supplied with the card (only with reference 34003918 or CAB-00010 or 720-C2270-00). • Connect the card to a computer equipped with a hyperterminal type emulator. The serial link must be set •...

  • Page 119: Choice 1: Restart / Reset

    Network Management Card (Network-MS) User Manual 7.1 Choice 1: Restart / Reset Use this function to restart the card from the boot This is equivalent to a restart of the electrical power supply. ----------------------------------------------------------------------------- Reset ----------------------------------------------------------------------------- 1 : Restart the card from the boot...

  • Page 120: Choice 2: Modify Ipv4 Network Settings

    Network Management Card (Network-MS) User Manual 7.2.2 Choice 2: Modify IPv4 Network settings Enables the modification of network parameters For each of the following questions, you can press <Return> to select the value shown in braces, or you can enter a new value.

  • Page 121: Choice 3: Lost Password / Set Login Password To Default

    Network Management Card (Network-MS) User Manual 7.3 Choice 3: Lost password / Set Login Password to Default In the even the login or password is lost, choice 3 enables the return to the default password: ----------------------------------------------------------------------------- EATON NETWORK MANAGEMENT CARD...

  • Page 122: Choice 4: Return To Default Configuration

    Network Management Card (Network-MS) User Manual 7.4 Choice 4: Return to Default Configuration Enables restoration of the default configuration of all the card’s parameters ----------------------------------------------------------------------------- EATON NETWORK MANAGEMENT CARD ----------------------------------------------------------------------------- 1 : Reset 2 : Network configuration 3 : Set Login Password to Default...

  • Page 123: Appendix

    Network Management Card (Network-MS) User Manual 8 Appendix 8.1 Tables of alarms and events 8.1.1 Table of alarms List of time dated alarms Alarm on Alarm off Battery fuse blown Battery fuse OK No Battery Battery present Battery temperature fault...
  • Page 124 Network Management Card (Network-MS) User Manual Positive DC bus too high Positive DC bus OK Negative DC bus too low Negative DC bus OK Positive DC bus too low Positive DC bus OK Inverter limitation Inverter end of limitation...
  • Page 125 Network Management Card (Network-MS) User Manual If the UPS is modular UPS, for each module: Battery fuse blown Battery fuse OK No Battery Battery present Battery temperature fault Battery temperature OK Battery charger fault Battery charger OK Low battery...

  • Page 126: Table Of Ups Events

    Network Management Card (Network-MS) User Manual Inverter limitation Inverter end of limitation Inverter overload Inverter load OK Inverter over temperature Inverter temperature OK Inverter thermal overload Inverter load OK Negative DC bus too high Negative DC bus OK Positive DC bus too high...
  • Page 127 Network Management Card (Network-MS) User Manual Automatic Bypass switch (Q4S) open Automatic Bypass switch (Q4S) closed Bypass AC frequency out of tolerance Bypass AC frequency OK Automatic Bypass fault Automatic Bypass OK Automatic Bypass overload Automatic Bypass load OK...
  • Page 128 Network Management Card (Network-MS) User Manual Imminent UPS shutoff UPS OK < Sensor Name> : Temperature is above high <Sensor Name> : Temperature is in normal threshold <xx> (° C) or (° F) range < Sensor Name> : Humidity is above high threshold <Sensor Name>...

  • Page 129: Table Of System Alarms

    Network Management Card (Network-MS) User Manual 8.1.3 Table of system alarms Network Management Card startup Send test mail SUCCESS Send test mail ERROR Send mail to <recipient> ERROR <Sensor name> Communication failure <Sensor name> Communication restored Firmware upgraded Connected NSM list Full, last connection refused sendTrap()->...

  • Page 130: Snmp Objects

    Eaton Pulsar MIB (MGE MIB) Eaton Pulsar MIB (MGE MIB) for environmental sensors The NMC implements the reduced Eaton Pulsar MIB (MGE MIB), only the objects listed in the following tables are managed. The entire MIB description is available at http://download.mgeops.com...
  • Page 131 Network Management Card (Network-MS) User Manual mginputFrequency_1 DeciHz {6.2.1.3.1.0} mginputFrequency_2 DeciHz {6.2.1.3.2.0} mginputFrequency_3 DeciHz {6.2.1.3.3.0} mginputMinimumVoltage {6.2.1.4.0} mginputMaximumVoltage {6.2.1.5.0} mginputCurrent_1 DeciAmps {6.2.1.6.1.0} mginputCurrent_2 DeciAmps {6.2.1.6.2.0} mginputCurrent_3 DeciAmps {6.2.1.6.3.0} upsmgInputBadStatus {6.3.0} upsmgInputLineFailCause {6.4.0} upsmgOutputPhaseNum {7.1.0} mgoutputPhaseIndex_1 {7.2.1.1.1.0} mgoutputPhaseIndex_2 {7.2.1.1.2.0} mgoutputPhaseIndex_3 {7.2.1.1.3.0}...
  • Page 132 Network Management Card (Network-MS) User Manual Network Management Card Page – User Manual 34003991XT_EN/JC 132/143...
  • Page 133 Network Management Card (Network-MS) User Manual This table lists objects that are managed if there is an optional Sensor / Environmental Monitoring Probe (EMP) installed. The Eaton Pulsar MIB access path is 1.3.6.1.4.1.705.1. upsmgEnvironAmbientTemp 0.1 degré {8.1.0} upsmgEnvironAmbientHumidity 0.1 % {8.2.0}...

  • Page 134: Traps Table: (1.3.6.1.4.1.705.1.11)

    Network Management Card (Network-MS) User Manual 8.2.3 TRAPS table: (1.3.6.1.4.1.705.1.11) SNMP traps are sent when alarms appears and disappears. Level 1: informational, 2: major, 3: critical MIB TRAP Trap # Level upsmgBatteryFault Trap 1 Level 3 upsmgBatteryOK Trap 2...

  • Page 135: Eaton Powerware Mib

    8.2.4 EATON Powerware MIB The Card implements the full Eaton Powerware MIB (PowerMIB), including alarm tables. The Eaton traps are sent. The Eaton Powerware MIB access path is 1.3.6.1.4.1.534. Table is an abbreviated list of objects from the PowerMIB. The UPS output/load segment controls objects and the entire MIB description is available at http://powerquality.eaton.com/Support/SoftwareDrivers.
  • Page 136 Network Management Card (Network-MS) User Manual xupsSecondaryInputWatch Integer {3.7.0} xupsOutputLoad Percent {4.1.0} xupsOutputFrequency 0.1 Hertz {4.2.0} xupsOutputNumPhases Integer {4.3.0} xupsOutputTable {4.4.0} xupsOutputPhase Integer {4.4.1.1.x} xupsOutputVoltage RMS Volts {4.4.1.2.x} xupsOutputCurrent RMS Amps {4.4.1.3.x} xupsOutputWatts Watts {4.4.1.4.x} xupsOutputSource Integer {4.5.0} xupsBypassFrequency 0.1 Hertz...
  • Page 137 Network Management Card (Network-MS) User Manual xupsOnBattery {7.3.0} xupsLowBattery {7.4.0} xupsUtilityPowerRestored {7.5.0} xupsReturnFromLowBattery {7.6.0} upsOutputOverload {7.7.0} xupsInternalFailure {7.8.0} xupsBatteryDischarged {7.9.0} xupsInverterFailure {7.10.0} xupsOnBypass {7.11.0} xupsBypassNotAvailable {7.12.0} xupsOutputOff {7.13.0} xupsInputFailure {7.14.0} xupsBuildingAlarm {7.15.0} xupsShutdownImminent {7.16.0} xupsOnInverter {7.17.0} xupsBreakerOpen {7.20.0} xupsAlarmBatteryBad {7.23.0}...

  • Page 138: Authentication Configuration Example

    Network Management Card (Network-MS) User Manual xupsTestBatteryStatus Integer {8.2.0} xupsLastGeneralTest Integer {8.3.0} xupsLastGeneralTestResult Integer {8.4.0} xupsConfigOutputVoltage RMS Volts {10.1.0} xupsConfigInputVoltage RMS Volts {10.2.0} xupsConfigOutputWatts Watts {10.3.0} xupsConfigOutputFreq 0.1 Hertz {10.4.0} xupsConfigDateAndTime String {10.5.0} xupsConfigLowOutputVoltageLimit RMS Volts {10.6.0} xupsConfigHighOutputVoltageLimit RMS Volts {10.7.0}...

  • Page 139: Ldap

    Network Management Card (Network-MS) User Manual admin Cleartext-Password := "myPassword" Service-Type = Administrative-User The following RADIUS configuration must be apply( value of the masked field secret: eaton123): 8.3.2 LDAP A IP card is running with the 166.99.224.96 IP address.
  • Page 140 Network Management Card (Network-MS) User Manual Password: eaton • The following LDAP configuration must be apply(value of the masked field “Search User Password”: eaton): Network Management Card Page – User Manual 34003991XT_EN/JC 140/143...

  • Page 141: Glossary

    Network Management Card (Network-MS) User Manual 9 Glossary Bootp: Protocol based on UDP used to allocate an IP address corresponding to an Ethernet card during the startup phase. Defined by the RCF 951 CLI Command line interface This interface allows direct access to the individual configuration parameters.
  • Page 142 Network Management Card (Network-MS) User Manual MIB Management Informatique Base Group of software commands to control and administrate a device through the network. Each type of device (server, hub, PC, UPS, etc.) has its own MIB NMC Network Management Card...
  • Page 143 Network Management Card (Network-MS) User Manual Telnet is not a secure protocol, but it is possible to secure the connection using SSH SSL (Secure Sockets Layers) is a protocol developed by Netscape Communications Corporation for securing data transmission in commercial transactions on the Internet. Using public-key cryptography, SSL provides server...

Table of Contents
