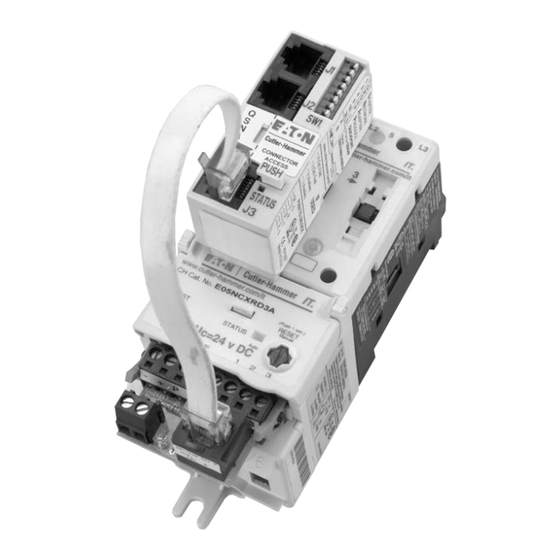

- Page 2 Cover Photo: QSNAP on IT. E101 Starter February 2002 Pub. No. MN05001001E...
-
Page 3: Table Of Contents
Mount the IT. QSNAP to the Starter........ - Page 4 Figure 2: QSNAP Dimensions, mm [in] ........
-
Page 5: Product Overview
Product Overview Description Cutler-Hammer Intelligent Technologies ( IT. ) QSNAP (QCPort Starter Network Adapter Product) by Eaton Corporation is the result of a substantive engineering and marketing effort, involving extensive customer input. This product has greatly increased functionality of the Eaton’s Cutler-Hammer Intelligent Technologies ( IT. -
Page 6: Features And Benefits
Intelligent Technologies ( IT. ) QSNAP Features and Benefits The IT. QSNAP includes the following significant features: Communication to QCPort consuming a single QCPort ID Control of non-reversing and reversing Eaton’s Cutler-Hammer Intelligent Technologies ( IT. ) Electromechanical Starters Monitoring of non-reversing and reversing Eaton’s Cutler-Hammer Intelligent Technologies ( IT. -
Page 7: Safety
Hazardous voltage can cause electric shock and burns. Always disconnect power before proceeding with any work on this product. Only apply 24V DC to the QSNAP power terminals. Use of any other voltage may result in personal injury, property damage and damage to the IT. -
Page 8: Environmental Ratings
Page 1 . The catalog number is QSNAP. This part number includes the QSNAP and the starter interface board that connects the starter and the QSNAP. Note: When ordering QSNAP for Full Voltage Reversing, consult factory for the QSNAP Auxiliary contact and jumper catalog numbers. -
Page 9: Physical Features Physical Description
February 2002 Physical Features Physical Description Figure 1 illustrates the front and back of the IT. QSNAP and its various features. Starter Connector Dimensions Figure 2 illustrates the dimensions of the IT. QSNAP. Pub. No. MN05001001E Group ID Switch Feet... -
Page 10: Power Source
Intelligent Technologies ( IT. ) QSNAP Power Source The IT. QSNAP is designed for use with 24V DC power. The QSNAP uses power from two sources when operating properly; these sources are the QCPort subnet and the Eaton’s Cutler-Hammer Intelligent Technologies ( IT. ) Electromechanical Starter. This allows the QSNAP to detect and communicate to the user that the IT. - Page 11 February 2002 Only apply 24V DC to the QSNAP. Use of any other voltage may result in personal injury, property damage and damage to the QSNAP. Pub. No. MN05001001E Intelligent Technologies (IT.) QSNAP CAUTION...
-
Page 12: Operation
Truth table “Out of Box” Operation When the QSNAP is properly installed and has a properly configured Group ID, as per the “Installation” section, the following default data lists will be presented to the system for use by a gateway. -
Page 13: Typical Application
February 2002 Typical Application The following figure illustrates a typical QSNAP application, where a single QSNAP is connected to one motor controller and where the motor controllers are distributed throughout QCPort. The subnet is then being controlled by a PC or PLC, which scans the D77D-DNA DeviceNet Adapter, retrieving the QSNAP’s control and monitoring information. -
Page 14: Enhanced Features
To help diagnose an application, a fault queue is provided to view the last five faults. Refer to the following two tables for definitions of the QSNAP Enhanced Features and Threshold Features. Table 8: Standard Features... -
Page 15: Input/Output Data
February 2002 Input/Output Data The QSNAP offers a standard data list (shown below) for default operation. The list is configurable with data contained within Table 21 in Appendix A: QSNAP Parameters, using the CH Studio application. Input Data Use Tables 10 and 11 when setting up the QSNAP input data. -
Page 16: Output Data
Table 11: Default Input Data Bit 7 Bit 6 Reserved Warning Output Data Use Tables 12 and 13 when setting up the QSNAP output data. Table 12: Default Output Data Bit 7 Bit 6 Reserved Reserved Local Table 13: Output Assembly Data Definitions... -
Page 17: Status Led
February 2002 Status LED The status LED is located on the lower right of the QSNAP as pictured in Figure 1: QSNAP Features. The LED’s status changes depending on the state of the QSNAP. The following table lists the IT. QSNAP LED statuses and describes the meaning of each state. -
Page 18: Configuration
Intelligent Technologies (IT.) QSNAP Configuration The only configuration that is necessary for normal operation of the QSNAP is setting the Group ID and SW1 positions A and B, as described in the “Installation” section. However, the QSNAP offers a variety of enhanced features. When these features are required, use the CH Studio application or a tool that can read an EDS file to perform the configuration. -
Page 19: Installation
System Install and Planning Guide (Publication No. MN05001002E). The Group ID and SW1 A and B DIP switches are located at the upper right of the QSNAP, as illustrated in Figure 5: Group ID Setting. CH Studio can view the settings for the Group ID, but cannot be used to modify them. -
Page 20: Sw1 Settings
Mount the IT. QSNAP to the Starter The IT. QSNAP is designed to be installed in the auxiliary contact locations of the IT. family of starters as illustrated in Figure 6. On all starters, one or more auxiliaries can be used along with the QSNAP. -
Page 21: Figure 7: Qsnap Alignment And Mounting
February 2002 Use the following steps and the illustration in Figure 7 to mount the QSNAP. 1. Align both the QSNAP feet with the auxiliary contact mounting slots on the starter, as illustrated in the figure. Recommendation: Use the middle mounting auxiliary contact on the contact block when 2. -
Page 22: Wire The It. Qsnap To The Starter
Wire the IT. QSNAP to the Starter The QSNAP is connected to the IT. starter using a factory-provided jumper with an RJ-45 plug on one end and a pigtail on the other. The pigtail is color coded to facilitate accurate connection to the overload terminal block. -
Page 23: Connect The Qsnap To Qcport
The connection to QCPort consists of using the QCPort interconnect jumper from the second port of the upstream device and connecting it to J1 on the QSNAP. The downstream QCPort device then connects to J2 on the QSNAP as in Figure 11: QCPort Connection. Use the following wiring diagram and illustration to connect the QSNAP to QCPort. -
Page 24: Troubleshooting And Maintenance Renewal Parts
Intelligent Technologies (IT.) QSNAP Troubleshooting and Maintenance Renewal Parts The renewal parts for the QSNAP are shown in the following table. Table 19: QSNAP Renewal Parts Description J3 Jumper Starter Interface Auxiliary Contact Ground Fault Detector Auxiliary Plug Troubleshooting Table 20: Troubleshooting Observation IT. -
Page 25: Appendix A: Qsnap Parameters
February 2002 Appendix A: QSNAP Parameters Refer to the following table when configuring the QSNAP. Table 21: Configuration Parameters Number Parameter Config Data Configuration CRC check Node ID QCPort mode Baud Rate Slave Address Production Dest Device ID Tag Prod Int... -
Page 26: Table 22: Data Parameters
Intelligent Technologies (IT.) QSNAP Table 22: Data Parameters Number Parameter Motor Control Motor Control Status Motor Control Faults Button State LED State ASCII Text RMS AC Current Control DC Voltage Thermal Pile Percentage Temperature Deg C Fault Quene February 2002... -
Page 27: Intelligent Technologies (It.) Publications And Support
IT. D77A- IO Module Products Installation and Users Manual MN05001002E IT. QCPort System Install and Planning Guide MN05001001E IT. QCPort Starter Network Adapter Product (QSNAP) Installation and Users Manual Pub 4960 IT. Overload Relay Setup and Troubleshooting Guide Pub 49601 IT. - Page 28 Intelligent Technologies (IT.) QSNAP February 2002 Pub. No. MN05001001E...
- Page 30 Eaton’s Cutler-Hammer Aftermarket Services • Technical/telephone support • Resident service engineers in major trading centers • Factory repair services • Warranty administration • Equipment modification and upgrading services • Training seminars A response network that gives new meaning to customer service •...
