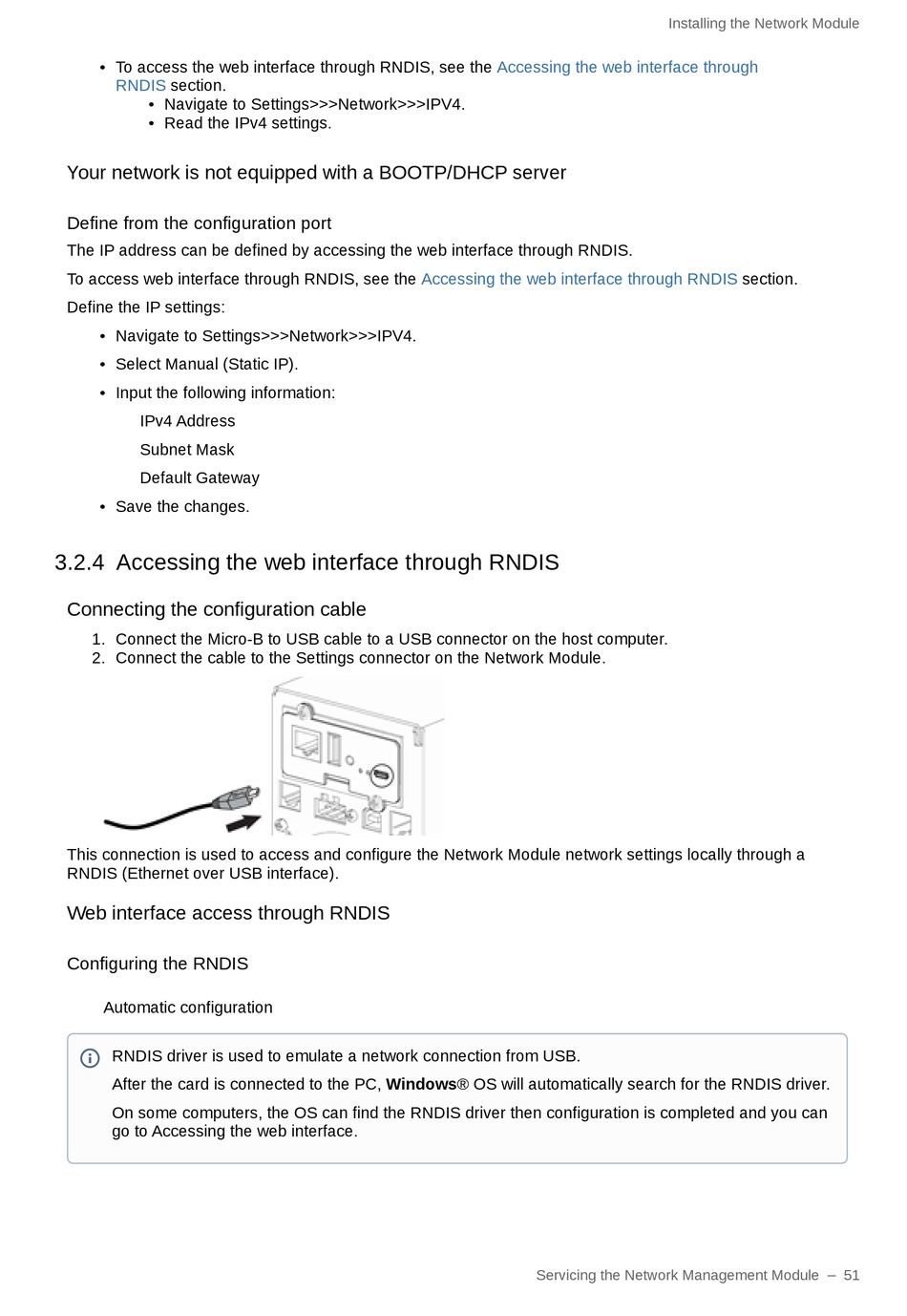

• To access the web interface through RNDIS, see the Accessing the web interface through
RNDIS section.
• Navigate to Settings>>>Network>>>IPV4.
• Read the IPv4 settings.

Your network is not equipped with a BOOTP/DHCP server

Define from the configuration port
The IP address can be defined by accessing the web interface through RNDIS.
To access web interface through RNDIS, see the Accessing the web interface through
Define the IP settings:
• Navigate to Settings>>>Network>>>IPV4.
• Select Manual (Static IP).
• Input the following information:
IPv4 Address
Subnet Mask
Default Gateway
• Save the changes.

3.2.4 Accessing the web interface through RNDIS

Connecting the configuration cable

1. Connect the Micro-B to USB cable to a USB connector on the host computer.
2. Connect the cable to the Settings connector on the Network Module.
This connection is used to access and configure the Network Module network settings locally through a
RNDIS (Ethernet over USB interface).

Web interface access through RNDIS

Configuring the RNDIS
Automatic configuration

RNDIS driver is used to emulate a network connection from USB.
After the card is connected to the PC, Windows® OS will automatically search for the RNDIS driver.
On some computers, the OS can find the RNDIS driver then configuration is completed and you can
go to Accessing the web interface.
Installing the Network Module
RNDIS section.
Servicing the Network Management Module – 51
