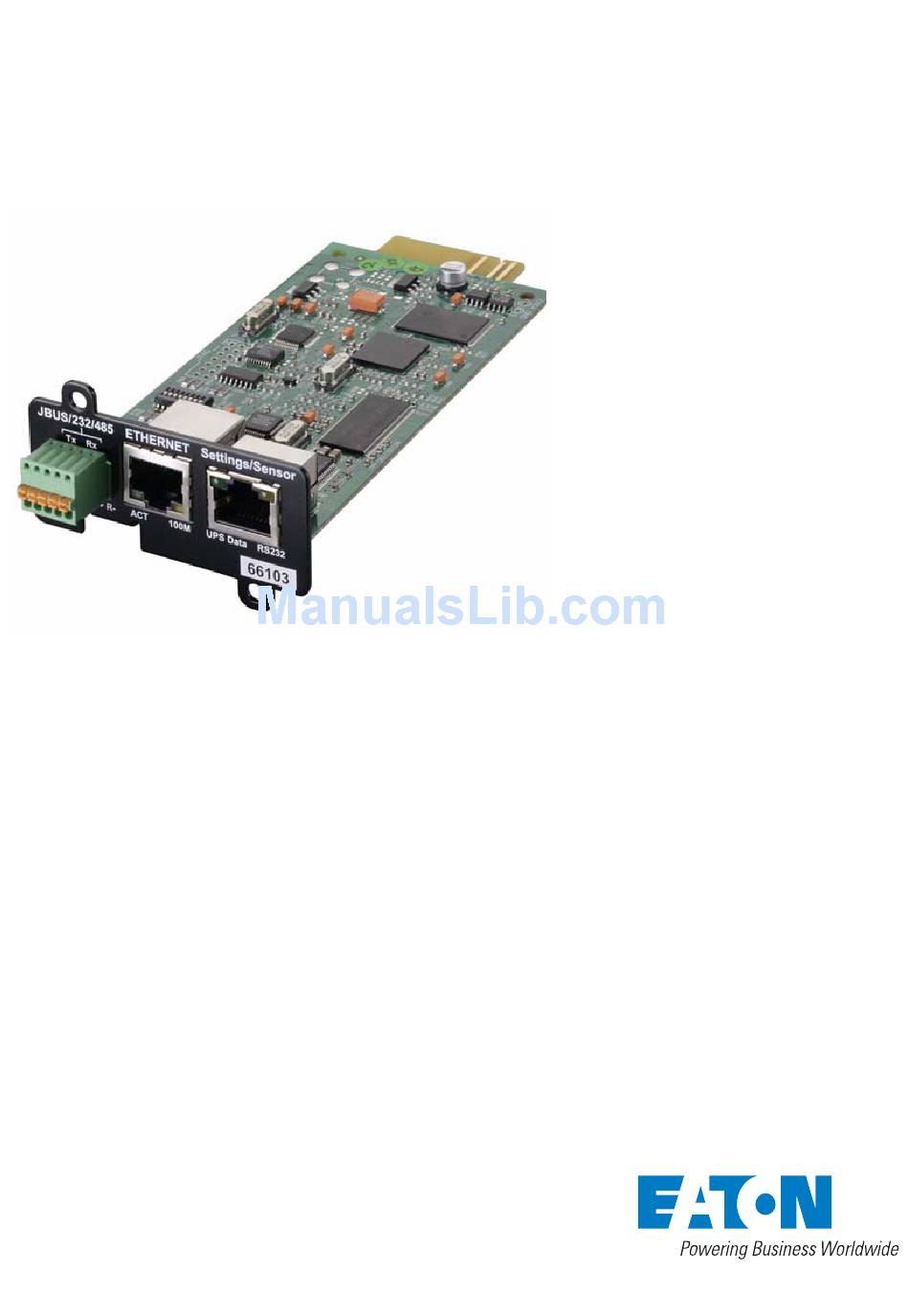

Page 1: Network Management
www.eaton.com Network Management Card & Modbus/ Jbus (66103) Installation manual... - Page 2 2 - 34003906EN/AE...
-
Page 3: Unpacking And Checks

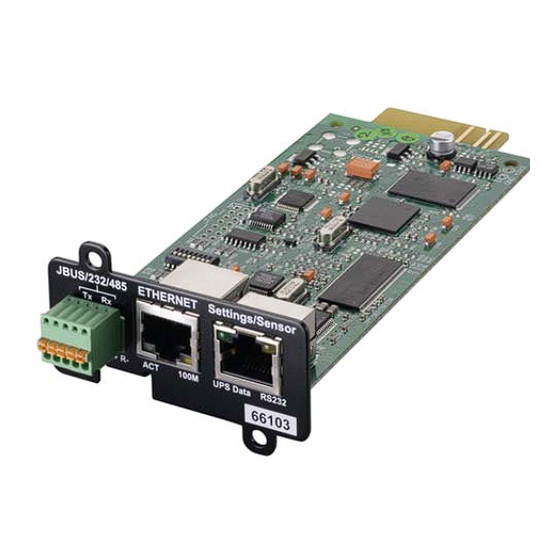

The Network Management Card & Modbus/Jbus (66103) is recommended for central UPSs protecting entire networks or for UPS units backing up critical loads. With the card installed, the UPS has its own IP address and uses the local computer capabilities to: Supply web pages (http or https (SSL)) with information on status conditions and measurements/ settings/alarms, Integrate an SNMP-based NMS such as HP OpenView, IBM Tivoli Netview and Computer Associates... - Page 4 MAC address ETHERNET port Colour Green 100M Orange Service port (Settings/Sensor) Colour UPS Data Green RS232 Orange 4 - 34003906EN/AE OVERVIEW INDICATIONS Status Card not connected to network Card connected to network, but no activity Port is sending/receiving Flashing Port operating at 10 Mbits/s Port operating at 100 Mbits/s Status Card starting...
- Page 5 The Network Management Card & Modbus/Jbus (66103) can be hot-plugged on all UPSs from EATON equipped with a Minislot. It is not necessary to shutdown the UPS, disconnect the load or restart the UPS. Remove the plastic cover of the Minislot. Note the MAC address of the card before inserting it.
- Page 6 Your network is equipped with a BOOTP/DHCP server (default) The card is configured by default with this service enabled. No manual configuration is required.The IP parameters are automatically collected by the card. From the main configuration menu: (see above) Press the 2 key (Network configuration). Press the 1 key(Read Network settings).
-
Page 7: User Manual
To check whether the Network Management Card & Modbus/Jbus (66103) is operational after installation and configuration, proceed as follows. Run a browser Enter in the address bar: http://IP address/ (e.g. http://172.16.1.82/) The home page is displayed Set the time by clicking the Time command. Continue configuration via the sections in the Settings menu. - Page 8 SENSOR CONNECTION (option) The Environment sensor is a Network Management Card & Modbus/Jbus option. It is available from EATON (cat. no 66846). The sensor remotely monitors the UPS environment by regularly measuring the temperature and humidity, and checking the states of two external contacts. It can also send alarms (e-mail, SNMP trap) tripped by pre-set thresholds.
- Page 9 JBUS/MODBUS RS232 link configuration and connection RS485 link configuration and connection For proper operation, the polarity of EIA RS485 2-wire and 4-wire lines must be set at only one point and the lines terminated at the end. Polarity Normally, the master of the network sets the polarity of the line. The receiver inputs have a true failsafe feature wich eliminates the need for external bias resistors and ensures a logic high output level when the inputs are open or shorted.
- Page 10 2 wires connection Card settings of an intermediate cubicle Link without polarity and without termination. Others settings Link with termination. 10 - 34003906EN/AE...
-
Page 11: Others Settings
4 wires connection Card settings of an intermediate cubicle Link without polarity and without termination. Others settings Link with termination. 34003906EN/AE - 11... - Page 12 Configuration of the JBUS/MODBUS communication parameters Through settings port Connect the RS232 link to a terminal (Microsoft Hyper terminal) Use the cord supplied with the card Connect the card to a computer Use a terminal emulator such as HyperTerminal Bits per second Data bits 9600 "Echo typed characters locally"...
- Page 13 Press the 2 key (Modifiy Jbus settings) Press «Return» key to modify the Jbus settings Setting Jbus configutration Set Slave number : 0x1* Set the Baud Rate [1:38400,2: 19200, 3:9600, 4: 4800, 5: 2400, 6: 1200] :3 Set data format[1: 8 bits, 2: 7 bits] :1 Set stop bit[1: 1 bits, 2: 2 bits] :1 Set parity [1: None, 2: Even, 3: Odd] :1 Wait during the new setting is saved ...
-
Page 14: Technical Characteristics
TECHNICAL CHARACTERISTICS Physical characteristics Dimensions (W x D x H) Weight RoHS Storage Storage temperature range Ambient conditions Operating temperature range Relative humidity Card performance Supply voltage Supply current (all LEDs ON and Environment Sensor connected) Functions Web supervision Languages Alarms Server protection Network... -
Page 15: Electromagnetic Compatibility
ELECTROMAGNETIC COMPATIBILITY When correctly installed and used in accordance with manufacturer instructions, the card complies with the following standards: ITE (Information Technology Equipment) safety: IEC/EN 60950-1 2002 EMC: EN 61000-6-2 (2002), EN 61000-6-3 (2002), IEC/EN 62040-2 (2002) In compliance with European directives: Low voltage: 73/23/EEC and 93/68/EEC. - Page 16 www.eaton.com 34003906EN/AE...
