Eaton Power Xpert Instructions Manual

Connecting to a netcomm wireless ntc-140w series router
Hide thumbs Also See for Power Xpert:

Advertisement

Quick Links

Download this manual
C C o o n n n n e e c c t t i i n n g g a a N N e e t t C C o o m m m m W W i i r r e e l l e e s s s s N N T T C C - - 1 1 4 4 0 0 W W S S e e r r i i e e s s R R o o u u t t e e r r t t o o a a n n E E a a t t o o n n ® N N e e t t w w o o r r k k C C a a r r d d
I I n n t t r r o o d d u u c c t t i i o o n n
This document provides instructions for connecting a NetComm Wireless NTC-140W Series wireless router to
one of the following Eaton connectivity cards:
•
Power Xpert Gateway UPS (PXGX-UPS)
•
Power Xpert Gateway Minislot UPS (PXGMS)
•
Gigabit Network (Network-M2)
P P r r e e r r e e q q u u i i s s i i t t e e s s
•
Eaton UPS with a PXGX-UPS, PXGMS, or Network-M2 card
•
PuTTy or HyperTerminal software
•
USB-to-USB (Type B) cable for PXGX-UPS
•
USB-to-USB (MiniTypeB) for PXGMS
•
USB-to-USB (MicroUSB B) for Network-M2
•
Serial COM port or USB-to-serial 9-pin male adapter
•
An existing PredictPulse account (refer to the
N N T T C C - - 1 1 4 4 0 0 W W S S e e r r i i e e s s R R o o u u t t e e r r I I n n s s t t a a l l l l a a t t i i o o n n G G u u i i d d e e l l i i n n e e s s
Refer to the Quick Start Guide provided with the NetComm Wireless NTC-140W series router for instructions
on mounting the router and connecting power.
C C o o n n n n e e c c t t i i n n g g t t h h e e R R o o u u t t e e r r t t o o a a P P X X G G X X - - U U P P S S o o r r P P X X G G M M S S C C a a r r d d
Connect the NTC-140W Series router and Eaton network card. Use the included Ethernet cable or equivalent.
•
For a PXGX-UPS card, connect the Ethernet cable from the LAN port on the NTC-140W Series router to
the Upstream port on the card (see
•
For a PXGMS card, connect the Ethernet cable from the LAN part on the NTC-140W Series router to the
Ethernet 10/100 port on the card (see
Route the Ethernet cable into the UPS via the appropriate conduit holes. Once connected, the LEDs on the
active Ethernet port, as well as the green Power LED and Status LEDs should light.

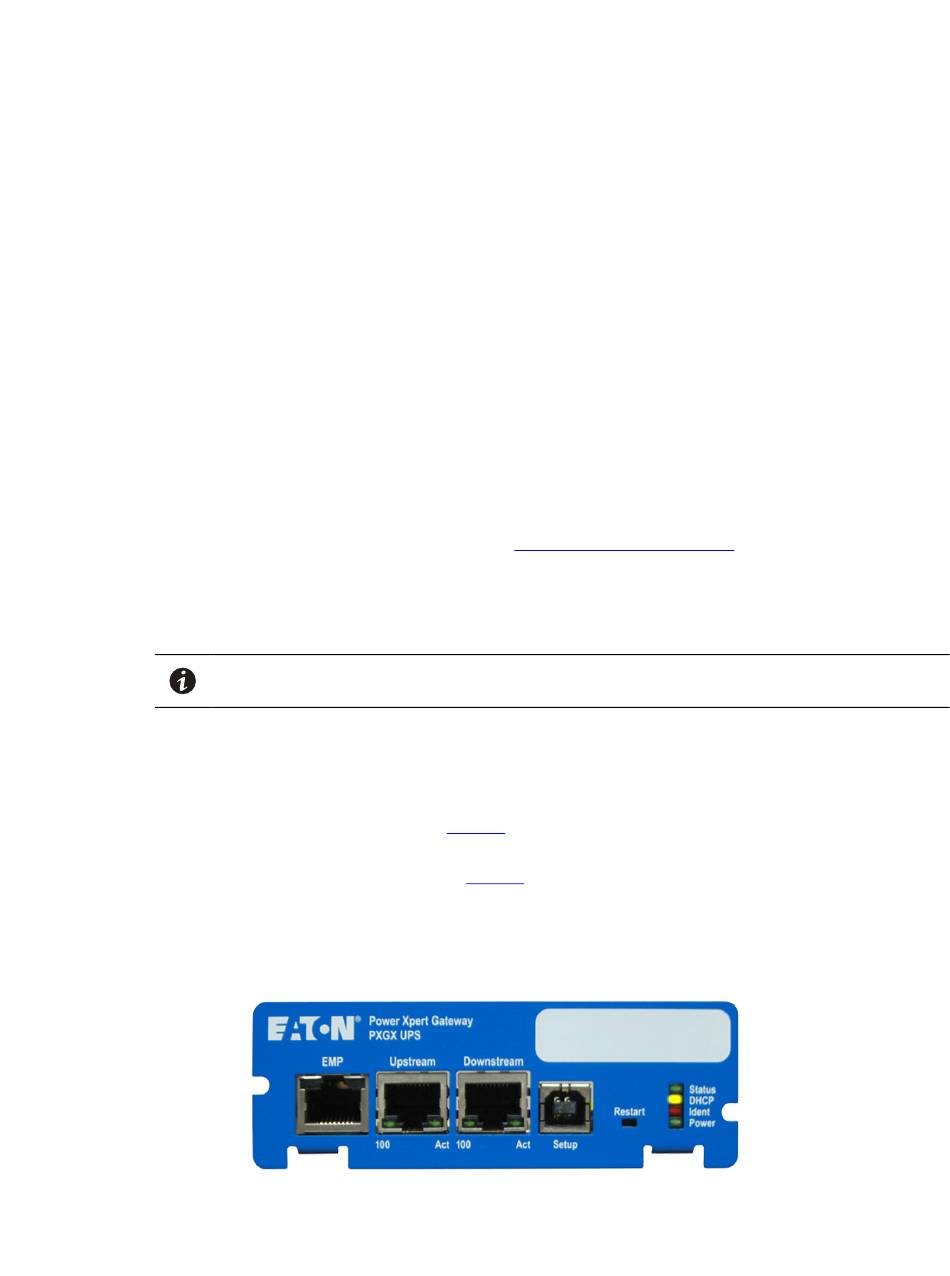

Figure 1. Power Xpert Gateway UPS (PXGX-UPS) Card
NOTE
The router must be powered by a 120V outlet powered by the UPS. This ensures that
the router is protected during a power outage.
Connecting a NetComm Wireless NTC-140W Router to an Eaton® Network Card
PredictPulse Quick Start
Figure
1):
Figure
2)
Guide)
P-164000722—Rev 04
1

Advertisement

loading

Related Manuals for Eaton Power Xpert

Summary of Contents for Eaton Power Xpert

  • Page 1 C C o o n n n n e e c c t t i i n n g g t t h h e e R R o o u u t t e e r r t t o o a a P P X X G G X X - - U U P P S S o o r r P P X X G G M M S S C C a a r r d d Connect the NTC-140W Series router and Eaton network card. Use the included Ethernet cable or equivalent.
  • Page 2 DIN rail and apply power. Connect a straight-through Ethernet CAT5 cable between the WAN port on the wireless router and port 1 on the Power Xpert Ethernet Switch. Connect another straight-through Ethernet cable from the Upstream port on the PXGX-UPS or Ethernet port on the PXGMS or Network-M2 to any open port other than 1 on the Power Xpert Ethernet Switch.
  • Page 3 Connecting a NetComm Wireless NTC-140W Series Router to an Eaton® Network Card Figure 4. Power Xpert Ethernet Switches C C o o n n f f i i g g u u r r i i n n g g a a P P X X G G X X - - U U P P S S o o r r P P X X G G M M S S C C a a r r d d To troubleshoot or set up the PXGX-UPS or PXGMS card, refer to Sections 3 –...
  • Page 4 Connecting a NetComm Wireless NTC-140W Series Router to an Eaton® Network Card Figure 5. Configuration Menu Ensure that the SMTP server/IP hostname is mail.eaton.com and the recipient checkboxes are setup as shown Figure 6, with monitor@v2.pwmonitor.com as the only e-mail recipient.
  • Page 5 Connecting a NetComm Wireless NTC-140W Series Router to an Eaton® Network Card Figure 7. E-Mail Event Trigger Configuration Page From the Configuration menu (see Figure 5), select Date/Time to display the Date/Time tab (see Figure Select the Synchronize with NTP server(s) radio button and enter 192.168.1.1 for the NTP server IP address.
  • Page 6 Connecting a NetComm Wireless NTC-140W Series Router to an Eaton® Network Card Figure 9. NetComm Wireless Log-In Page Navigate to the Services tab and select Network Time (NTP). Ensure the correct time zone is selected and the remaining settings are as shown in Figure 10, with 151.110.127.39 listed for NTP service.
  • Page 7 Connecting a NetComm Wireless NTC-140W Series Router to an Eaton® Network Card C C o o n n f f i i g g u u r r i i n n g g a a N N e e t t w w o o r r k k - - M M 2 2 C C a a r r d d To troubleshoot or set up the Network-M2 card, refer to the Network-M2 User’s...
  • Page 8 Connecting a NetComm Wireless NTC-140W Series Router to an Eaton® Network Card Click the Email tab (see Figure 13) and enter mail.eaton.com in the Server IP/Hostname field. Click Save in the bottom right. Figure 13. Network-M2 Card Email Tab Click the Date & Time tab (see Figure 14).
  • Page 9 Connecting a NetComm Wireless NTC-140W Series Router to an Eaton® Network Card R R u u n n t t h h e e P P r r e e d d i i c c t t P P u u l l s s e e W W i i z z a a r r d d To run the PredictPulse Wizard (ActivatePredictPulse.exe), connect a laptop or personal computer as follows.
  • Page 10 Connecting a NetComm Wireless NTC-140W Series Router to an Eaton® Network Card NOTE For a PXGX-UPS or PXGMS card, the IP address assigned by the modem can be found on the Configuration menu. Select Network, verify that DHCP Enabled is checked...
  • Page 11 22). If the user is running Microsoft Outlook and it is open, an activation email is sent automatically to Eaton’s PredictPulse servers. Note, you may need to send the email from your Drafts folder once you've connected to a LAN if you were connected to the modem Wi-Fi while running the wizard. If the user does not have Outlook installed, the email components are saved in the user’s My Documents folder and instructions...
  • Page 12 Connecting a NetComm Wireless NTC-140W Series Router to an Eaton® Network Card T T r r o o u u b b l l e e s s h h o o o o t t i i n n g g S S i i g g n n a a l l S S t t r r e e n n g g t t h h The biggest risk for the router is low signal quality.
  • Page 13 Connecting a NetComm Wireless NTC-140W Series Router to an Eaton® Network Card I I n n c c o o r r r r e e c c t t P P r r o o f f i i l l e e The wireless router can only use the profile stored on the SIM.
  • Page 14 R R e e m m o o t t e e R R e e b b o o o o t t F F u u n n c c t t i i o o n n Although not required, Eaton recommends enabling the remote reboot function of your router to assist Eaton specialists in remotely troubleshooting.
  • Page 15 A A d d d d i i t t i i o o n n a a l l I I n n f f o o r r m m a a t t i i o o n n a a n n d d S S u u p p p p o o r r t t For additional information about PredictPulse, visit Eaton.com/PredictPulse. For specific questions, call Eaton (in the US) at 800.843.9433, option 2, option 5 or send an e-mail to softwareconnectivityts@eaton.com.
  • Page 16 P-16400072204 P-164000722 04...
