Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Endress+Hauser

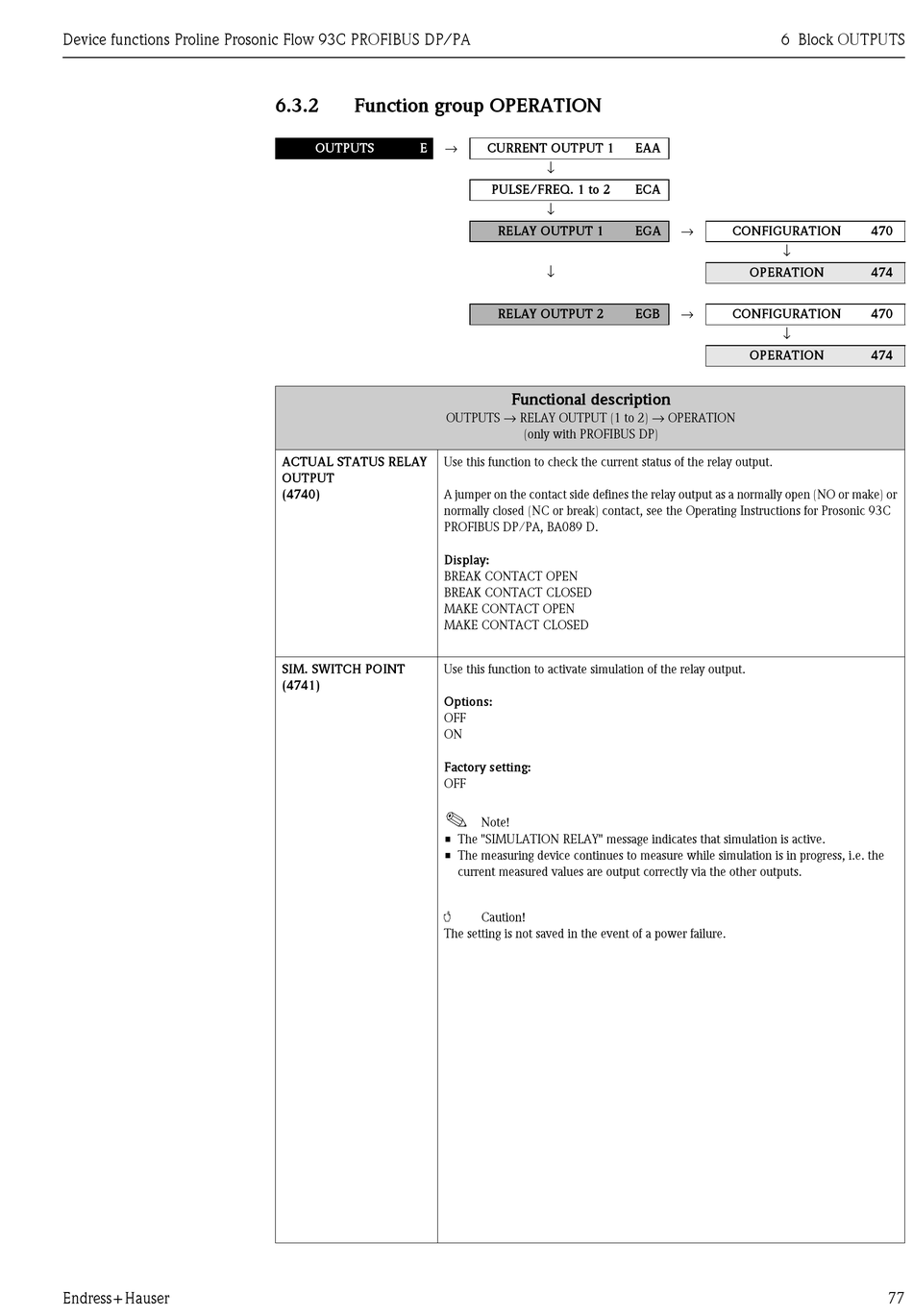

6.3.2

Function group OPERATION

→
OUTPUTS E
OUTPUTS → RELAY OUTPUT (1 to 2) → OPERATION
ACTUAL STATUS RELAY Use this function to check the current status of the relay output.
OUTPUT
(4740) A jumper on the contact side defines the relay output as a normally open (NO or make) or
normally closed (NC or break) contact, see the Operating Instructions for Prosonic 93C
PROFIBUS DP/PA, BA089 D.
Display:
BREAK CONTACT OPEN
BREAK CONTACT CLOSED
MAKE CONTACT OPEN
MAKE CONTACT CLOSED
SIM. SWITCH POINT Use this function to activate simulation of the relay output.
(4741)
Options:
OFF
ON
Factory setting:
OFF
!
• The "SIMULATION RELAY" message indicates that simulation is active.
• The measuring device continues to measure while simulation is in progress, i.e. the
"
The setting is not saved in the event of a power failure.
CURRENT OUTPUT 1
↓
PULSE/FREQ. 1 to 2
↓
RELAY OUTPUT 1
↓
RELAY OUTPUT 2
Functional description
(only with PROFIBUS DP)
Note!
current measured values are output correctly via the other outputs.
Caution!
6 Block OUTPUTS
EAA
ECA
→
EGA

CONFIGURATION

↓

OPERATION

→
EGB CONFIGURATION
↓
OPERATION
470
474
470
474
77
