Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Endress+Hauser
6.3

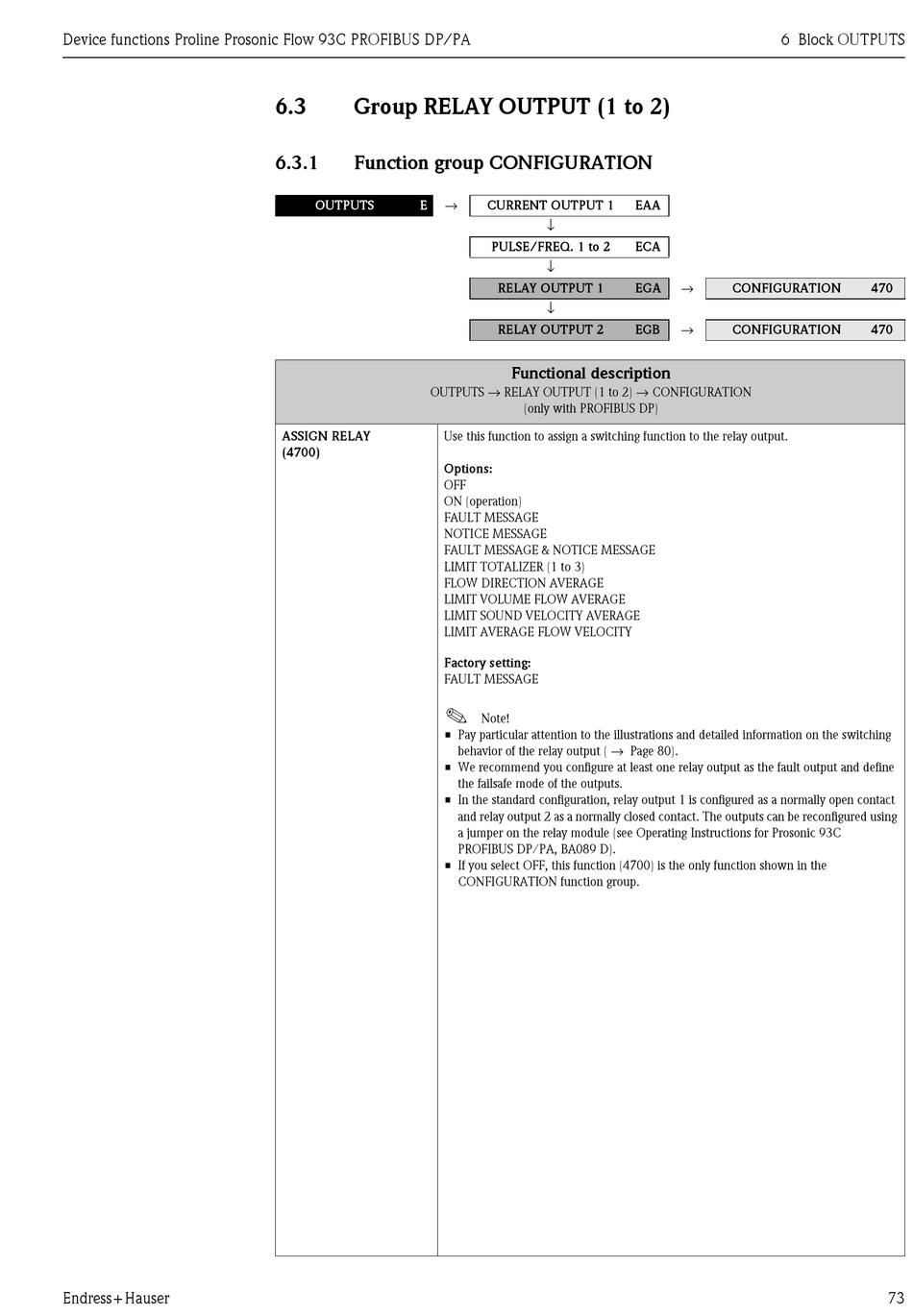

Group RELAY OUTPUT (1 to 2)

6.3.1

Function group CONFIGURATION

→
OUTPUTS E
OUTPUTS → RELAY OUTPUT (1 to 2) → CONFIGURATION
ASSIGN RELAY Use this function to assign a switching function to the relay output.
(4700)
Options:
OFF
ON (operation)
FAULT MESSAGE
NOTICE MESSAGE
FAULT MESSAGE & NOTICE MESSAGE
LIMIT TOTALIZER (1 to 3)
FLOW DIRECTION AVERAGE
LIMIT VOLUME FLOW AVERAGE
LIMIT SOUND VELOCITY AVERAGE
LIMIT AVERAGE FLOW VELOCITY
Factory setting:
FAULT MESSAGE
!
• Pay particular attention to the illustrations and detailed information on the switching
• We recommend you configure at least one relay output as the fault output and define
• In the standard configuration, relay output 1 is configured as a normally open contact
• If you select OFF, this function (4700) is the only function shown in the
CURRENT OUTPUT 1
↓
PULSE/FREQ. 1 to 2
↓
RELAY OUTPUT 1
↓
RELAY OUTPUT 2
Functional description
(only with PROFIBUS DP)
Note!
behavior of the relay output ( → Page 80).
the failsafe mode of the outputs.
and relay output 2 as a normally closed contact. The outputs can be reconfigured using
a jumper on the relay module (see Operating Instructions for Prosonic 93C
PROFIBUS DP/PA, BA089 D).
CONFIGURATION function group.
6 Block OUTPUTS
EAA
ECA
→
EGA CONFIGURATION
→
EGB CONFIGURATION
470
470
73
