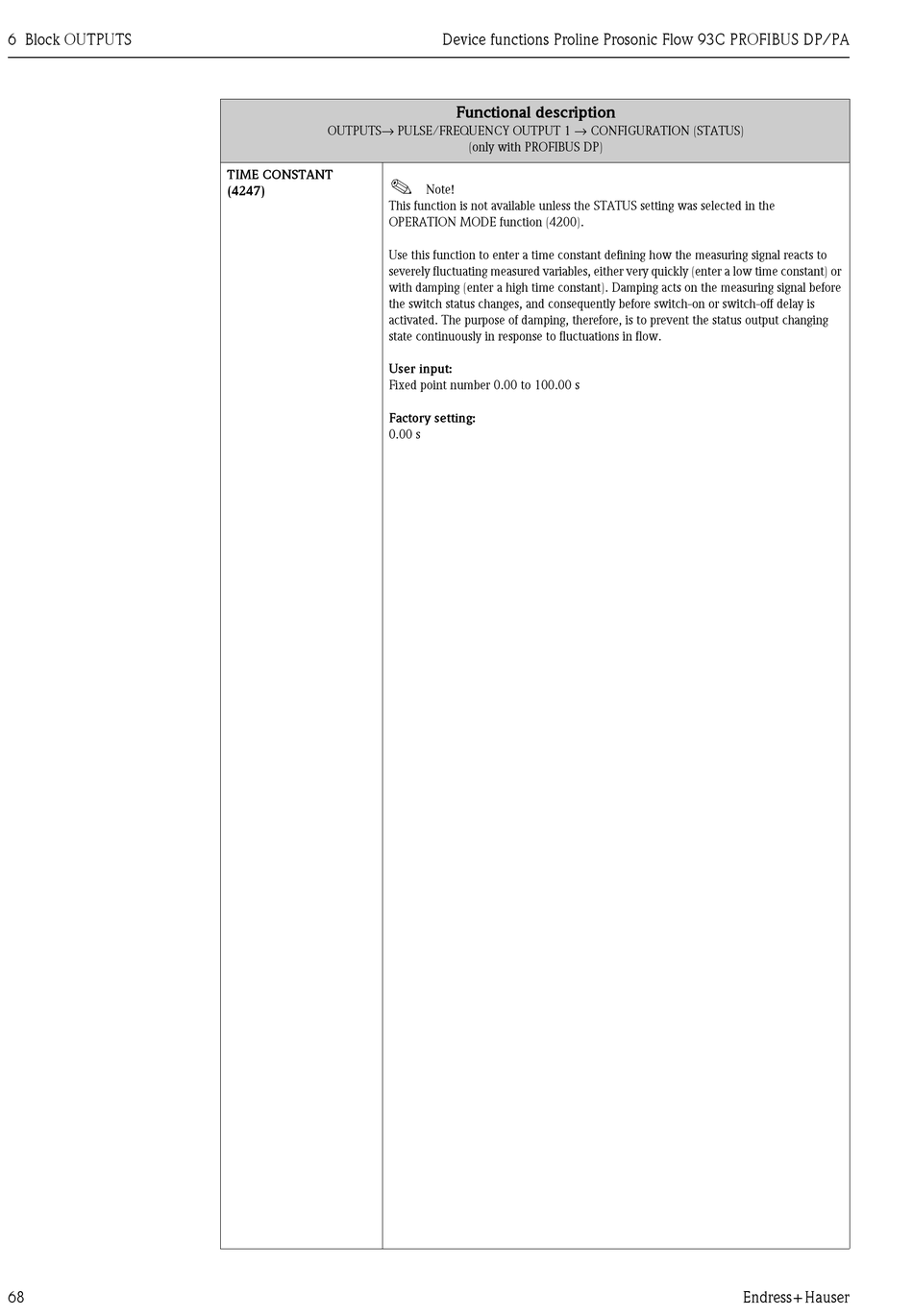

Endress+Hauser Proline Prosonic Flow 93C Description Of Device Functions page 68

6 Block OUTPUTS
68
OUTPUTS→ PULSE/FREQUENCY OUTPUT 1 → CONFIGURATION (STATUS)
TIME CONSTANT
!
(4247)
This function is not available unless the STATUS setting was selected in the
OPERATION MODE function (4200).
Use this function to enter a time constant defining how the measuring signal reacts to
severely fluctuating measured variables, either very quickly (enter a low time constant) or
with damping (enter a high time constant). Damping acts on the measuring signal before
the switch status changes, and consequently before switch-on or switch-off delay is
activated. The purpose of damping, therefore, is to prevent the status output changing
state continuously in response to fluctuations in flow.
User input:
Fixed point number 0.00 to 100.00 s
Factory setting:
0.00 s
Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Functional description
(only with PROFIBUS DP)
Note!
