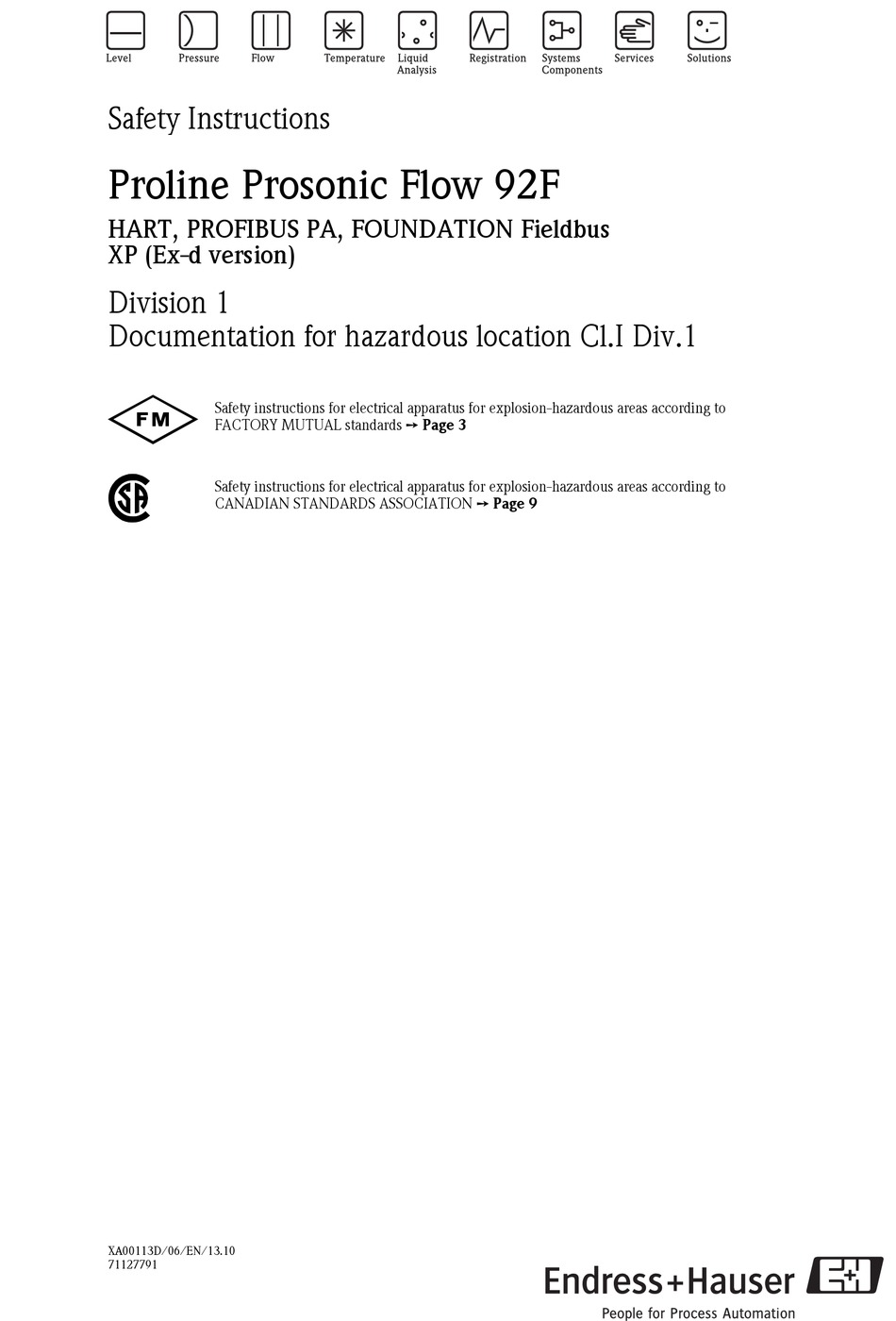

- Page 1 Safety Instructions Proline Prosonic Flow 92F HART, PROFIBUS PA, FOUNDATION Fieldbus XP (Ex-d version) Division 1 Documentation for hazardous location Cl.I Div.1 Safety instructions for electrical apparatus for explosion-hazardous areas according to Page 3 ➙ FACTORY MUTUAL standards Safety instructions for electrical apparatus for explosion-hazardous areas according to Page 9...
- Page 2 Proline Prosonic Flow 92F Examples for markings according to FM and CSA: Example: XP / I / 1 / ABCD Type of Protection Explosionproof Intrinsically Safe Apparatus Associated Apparatus with Intrinsically Safe Connections Associated N onincendive Field Wiring Apparatus Pressurized...
-
Page 3: Table Of Contents
Documentation for hazardous location Cl.I Div.1 This document is an integral part of the following Operating Instructions: • BA121D, Proline Prosonic Flow 92F HART • BA122D, Proline Prosonic Flow 92F PROFIBUS PA • BA128D, Proline Prosonic Flow 92F FOUNDATION Fieldbus Table of Contents FM General warnings . -
Page 4: General Warnings
Proline Prosonic Flow 92F General warnings • Any national regulations pertaining to the installation of devices in hazardous areas must be observed. • Mounting, electrical installation, commissioning and maintenance of the devices may only be performed by technical staff trained in the area of explosion protection. -
Page 5: Device Identification
Proline Prosonic Flow 92F Device identification The nameplates, which are provided on the transmitter and sensor in a manner in which they are clearly visible, contain all the relevant information on the measuring system.. 4153 Reinach, Switzerland Prosonic Flow F... -
Page 6: Compact Version Temperature Table
Proline Prosonic Flow 92F Outputs/inputs (Item No. 18 in type code) Approval A, W Cl. I, Groups ABCD Cl. II, Groups EFG Cl. III Cl. I, Zone 1, AEx/Ex d [ia] IIC T6 - T1 H, K Cl. I, Groups ABCD Cl. -
Page 7: Potential Matching
The maximum permitted capacitance per unit length of the cable connection is 1μF/km. The maximum permitted inductance of the cable is 1 mH/km. The cable supplied by Endress+Hauser (max. 98 ft (30 m)) complies with these values. Electrical connections Terminal/electronics compartment cover (terminal assignment, see tables below) -
Page 8: Connecting The Supply Voltage Or Signal Cable
Associated "Technical Information": Proline Prosonic Flow 92F TI073D/06/… Control drawings Endress+Hauser Reinach hereby declares that the product is in conformitywith the requirements of the FACTORY MUTUAL standards. Note! The "Documentation/Important Information" folder provided with the measuring device contains a CD-ROM with all the Control Drawings. - Page 9 Documentation for hazardous location Cl.I Div.1 This document is an integral part of the following Operating Instructions: • BA121D, Proline Prosonic Flow 92F HART • BA122D, Proline Prosonic Flow 92F PROFIBUS PA • BA128D, Proline Prosonic Flow 92F FOUNDATION Fieldbus Table of Contents CSA General warnings .
-
Page 10: General Warnings
Proline Prosonic Flow 92F General warnings • Any national regulations pertaining to the installation of devices in hazardous areas must be observed. • Mounting, electrical installation, commissioning and maintenance of the devices may only be performed by technical staff trained in the area of explosion protection. -
Page 11: Device Identification
Proline Prosonic Flow 92F Device identification The nameplates, which are provided on the transmitter and sensor in a manner in which they are clearly visible, contain all the relevant information on the measuring system. 4153 Reinach, Switzerland Prosonic Flow F... -
Page 12: Compact Version Temperature Table
Proline Prosonic Flow 92F Outputs/inputs (Item No. 18 in type code) Approval A, W Cl. I, Groups ABCD Cl. II, Groups EFG Cl. III Cl. I, Zone 1, AEx/Ex d [ia] IIC T6 - T1 H, K Cl. I, Groups ABCD Cl. -
Page 13: Potential Matching
The maximum permitted capacitance per unit length of the cable connection is 1μF/km. The maximum permitted inductance of the cable is 1 mH/km. The cable supplied by Endress+Hauser (max. 30 m) complies with these values. Electrical connections Terminal/electronics compartment cover (terminal assignment, see tables below) -
Page 14: Connecting The Supply Voltage Or Signal Cable
Associated "Technical Information": Proline Prosonic Flow 92F TI073D/06/… Control drawings Endress+Hauser Reinach hereby declares that the product is in conformity with the requirements of the CANADIAN STANDARDS ASSOCIATION. Note! The "Documentation/Important Information" folder provided with the measuring device contains a CD-ROM with all the Control Drawings. - Page 15 Proline Prosonic Flow 92F Endress+Hauser...
- Page 16 www.endress.com/worldwide XA00113D/06/EN/13.10 71127791 FM+SGML 6.0...
