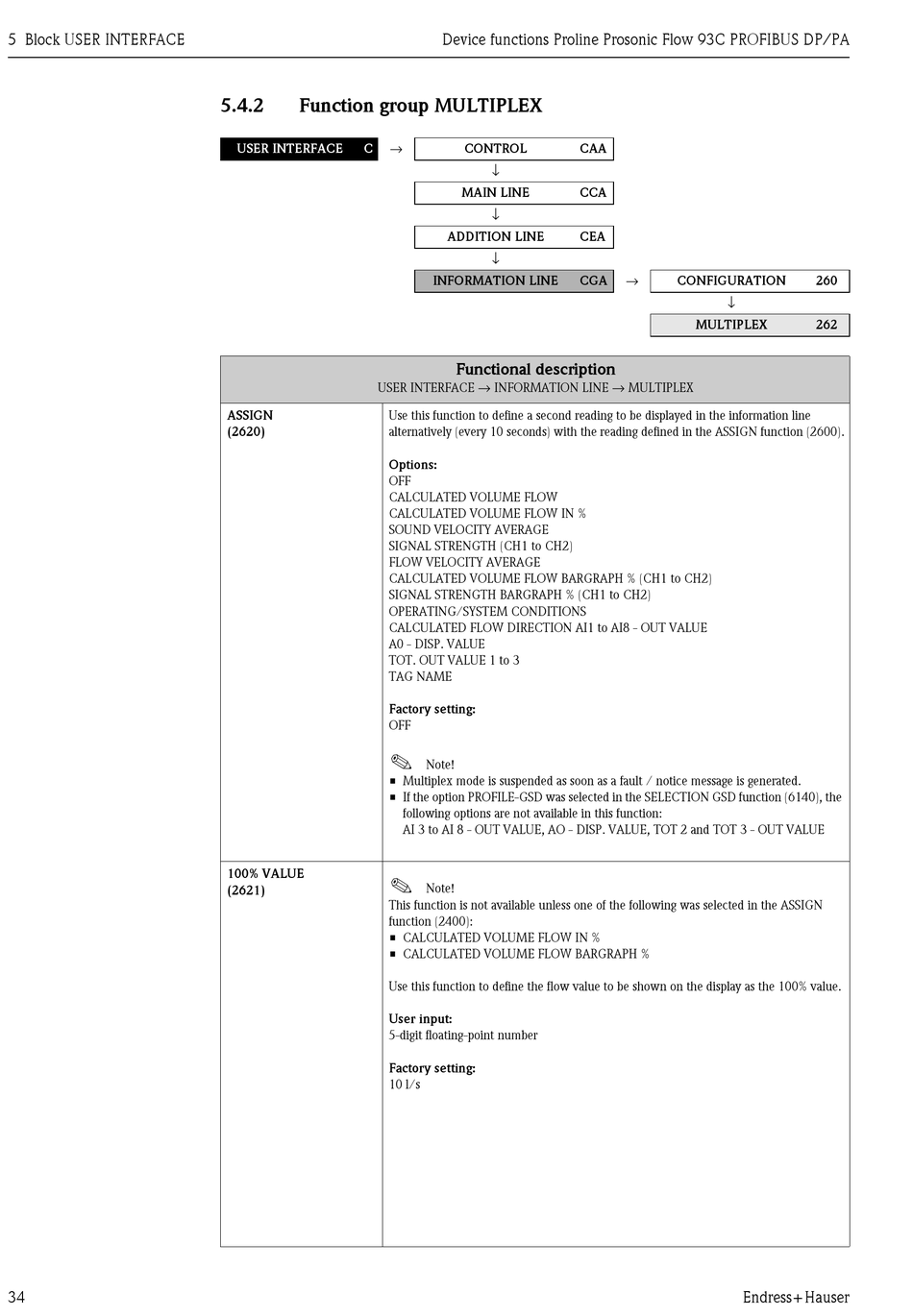

Function Group Multiplex; Multiplex - Endress+Hauser Proline Prosonic Flow 93C Description Of Device Functions

5 Block USER INTERFACE
34
5.4.2

Function group MULTIPLEX

→
USER INTERFACE C
USER INTERFACE → INFORMATION LINE → MULTIPLEX
ASSIGN Use this function to define a second reading to be displayed in the information line
(2620) alternatively (every 10 seconds) with the reading defined in the ASSIGN function (2600).
Options:
OFF
CALCULATED VOLUME FLOW
CALCULATED VOLUME FLOW IN %
SOUND VELOCITY AVERAGE
SIGNAL STRENGTH (CH1 to CH2)
FLOW VELOCITY AVERAGE
CALCULATED VOLUME FLOW BARGRAPH % (CH1 to CH2)
SIGNAL STRENGTH BARGRAPH % (CH1 to CH2)
OPERATING/SYSTEM CONDITIONS
CALCULATED FLOW DIRECTION AI1 to AI8 - OUT VALUE
A0 - DISP. VALUE
TOT. OUT VALUE 1 to 3
TAG NAME
Factory setting:
OFF
!
• Multiplex mode is suspended as soon as a fault / notice message is generated.
• If the option PROFILE-GSD was selected in the SELECTION GSD function (6140), the
100% VALUE
!
(2621)
This function is not available unless one of the following was selected in the ASSIGN
function (2400):
• CALCULATED VOLUME FLOW IN %
• CALCULATED VOLUME FLOW BARGRAPH %
Use this function to define the flow value to be shown on the display as the 100% value.
User input:
5-digit floating-point number
Factory setting:
10 l/s
Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
CONTROL
↓
MAIN LINE
↓
ADDITION LINE
↓
INFORMATION LINE
Functional description
Note!
following options are not available in this function:
AI 3 to AI 8 - OUT VALUE, AO - DISP. VALUE, TOT 2 and TOT 3 - OUT VALUE
Note!
CAA
CCA
CEA
→
CGA CONFIGURATION
↓

MULTIPLEX

Endress+Hauser
260
262
