2 Function matrix

6
2 Function matrix
2.1

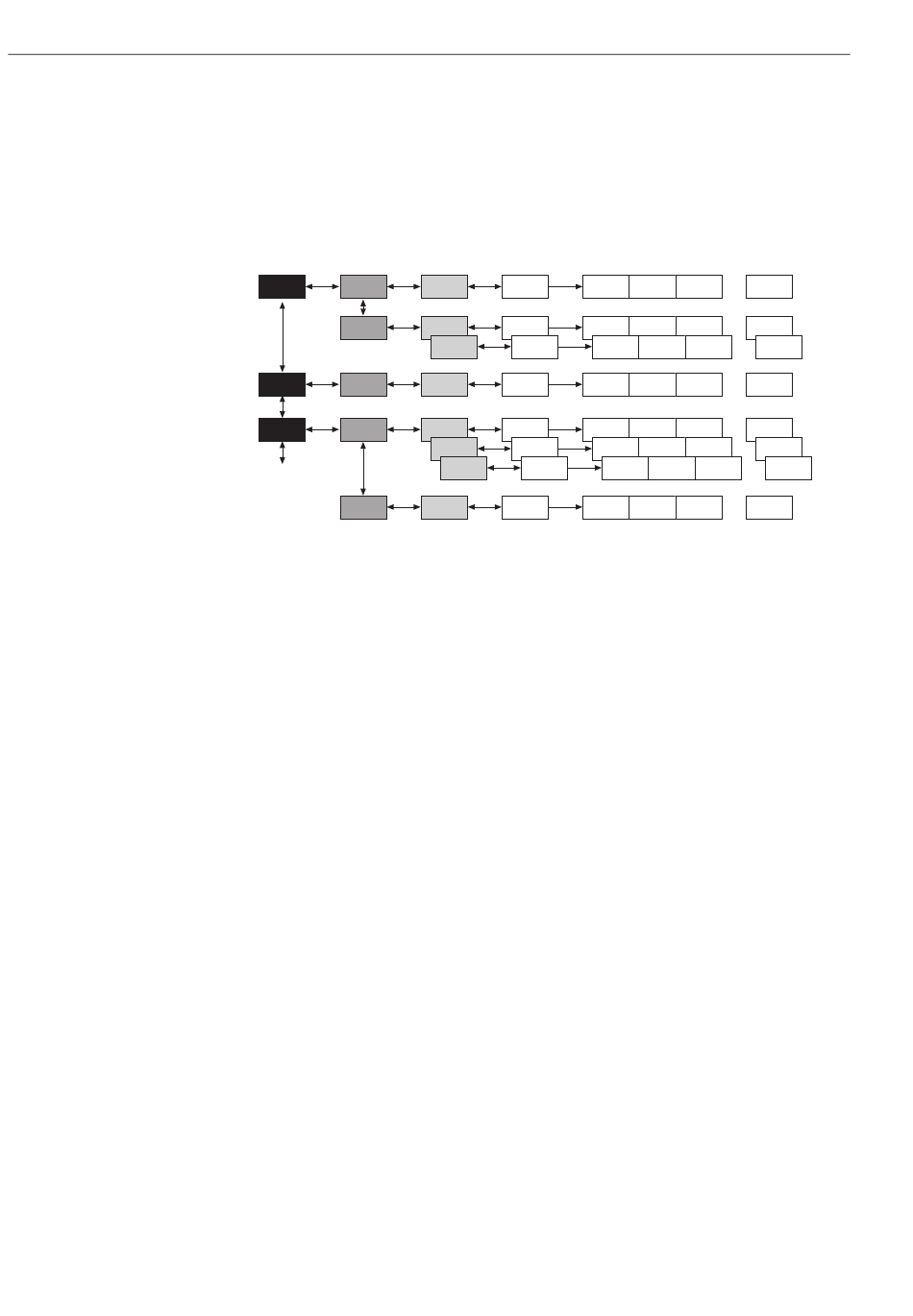

General layout of the function matrix

The function matrix consists of four levels:
Blocks -> Groups -> Function groups -> Functions
A AAA
ACA
B BAA
C CAA
D, E, ...
CBA
2.1.1

Blocks (A, B, C, etc.)

The blocks are the "highest-level grouping" of the operation options for the device.
Examples of blocks available are MEASURED VARIABLES, QUICK SETUP, USER INTERFACE,
TOTALIZERS, etc.
2.1.2

Groups (AAA, AEA, CAA, etc.)

A block consists of one or more groups. Each group represents a more detailed selection of the
operation options in the higher-order block. The groups in the "USER INTERFACE" block, for
example, include: CONTROL, MAIN LINE, ADDITION LINE, etc.
2.1.3

Function groups (000, 020, 060, etc.)

A group consists of one or more function groups. Each function group represents a more detailed
selection of the operation options in the higher-order group. The function groups in the
"CONTROL" group, for example, include: BASIC CONFIGURATION, UN-/LOCKING,
OPERATION, etc.
2.1.4

Functions (0000, 0001, 0002, etc.)

Each function group consists of one or more functions. The functions are used to operate and
parameterize the device. Numerical values can be entered or parameters selected and saved.
The functions in the "BASIC CONFIGURATION" function group include LANGUAGE, DISPLAY
DAMPING, CONTRAST LCD, etc. The procedure for changing the language of the user interface,
for example, is as follows:
1. Select the block "USER INTERFACE".
2. Select the group "CONTROL".
3. Select the function group "BASIC CONFIGURATION".
4. Select the function "LANGUAGE" (here you can set the language required).
Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
000 0000 0001
040 0400 0401
042 0420 0421
200 2000 2001
202 2020 2021
204 2040 2041
206 2060
220 2200 2201
0002 0003 0009
...
0402 0403 0409
...
0422 0423 0429
...
2002 2003 2009
...
2022 2023 2029
...
2042 2043 2049
...
2061 2062 2063 2069
...
2202 2203 2209
...
