6 Block OUTPUTS
56
OUTPUTS → PULSE/FREQUENCY OUTPUT 1 → CONFIGURATION (FREQUENCY)

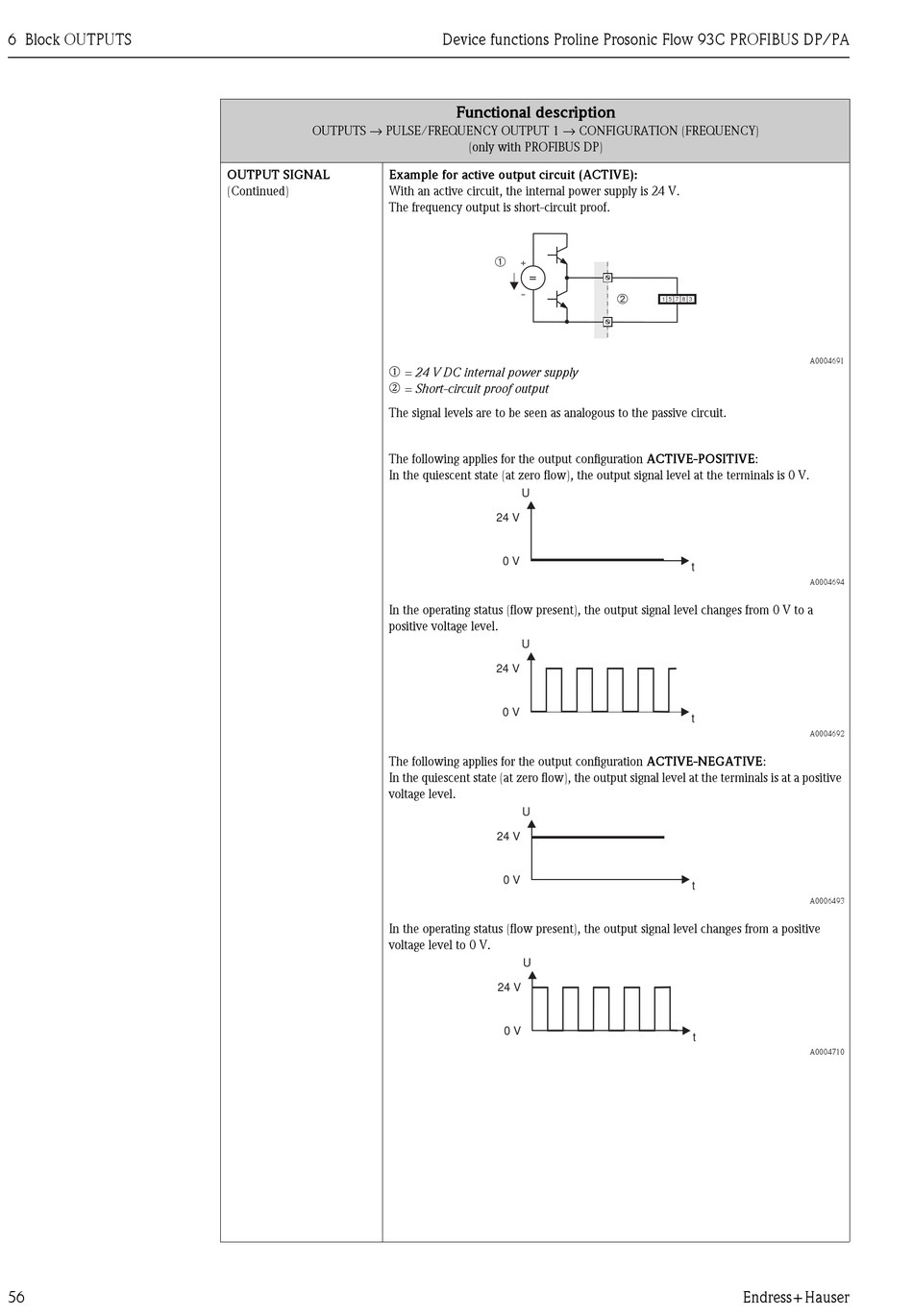

OUTPUT SIGNAL Example for active output circuit (ACTIVE):
(Continued) With an active circuit, the internal power supply is 24 V.
The frequency output is short-circuit proof.
m
n
The signal levels are to be seen as analogous to the passive circuit.
The following applies for the output configuration ACTIVE-POSITIVE:
In the quiescent state (at zero flow), the output signal level at the terminals is 0 V.
In the operating status (flow present), the output signal level changes from 0 V to a
positive voltage level.
The following applies for the output configuration ACTIVE-NEGATIVE:
In the quiescent state (at zero flow), the output signal level at the terminals is at a positive
voltage level.
In the operating status (flow present), the output signal level changes from a positive
voltage level to 0 V.
Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Functional description
(only with PROFIBUS DP)
➀
+
=
-
= 24 V DC internal power supply
= Short-circuit proof output
U
24 V
0 V
U
24 V
0 V
U
24 V
0 V
U
24 V
0 V
➁
1 5 7 8 3
t
t
t
t
