6 Block OUTPUTS
46

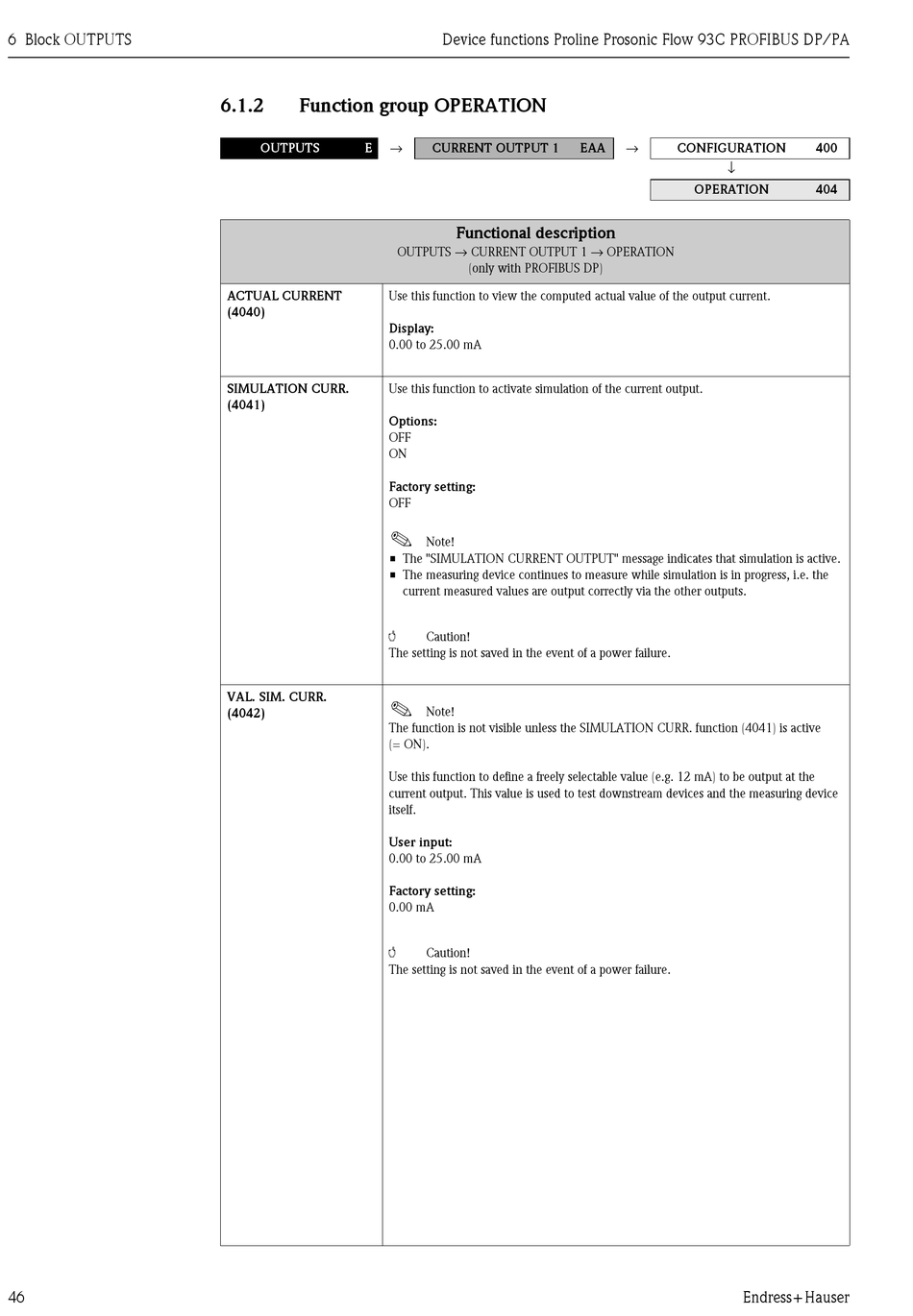

6.1.2

Function group OPERATION

→
OUTPUTS E
ACTUAL CURRENT Use this function to view the computed actual value of the output current.
(4040)
Display:
0.00 to 25.00 mA
SIMULATION CURR. Use this function to activate simulation of the current output.
(4041)
Options:
OFF
ON
Factory setting:
OFF
!
• The "SIMULATION CURRENT OUTPUT" message indicates that simulation is active.
• The measuring device continues to measure while simulation is in progress, i.e. the
"
The setting is not saved in the event of a power failure.
VAL. SIM. CURR.
!
(4042)
The function is not visible unless the SIMULATION CURR. function (4041) is active
(= ON).
Use this function to define a freely selectable value (e.g. 12 mA) to be output at the
current output. This value is used to test downstream devices and the measuring device
itself.
User input:
0.00 to 25.00 mA
Factory setting:
0.00 mA
"
The setting is not saved in the event of a power failure.
Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
CURRENT OUTPUT 1
Functional description
OUTPUTS → CURRENT OUTPUT 1 → OPERATION
(only with PROFIBUS DP)
Note!
current measured values are output correctly via the other outputs.
Caution!
Note!
Caution!
→
EAA CONFIGURATION
↓
OPERATION
Endress+Hauser
400
404
