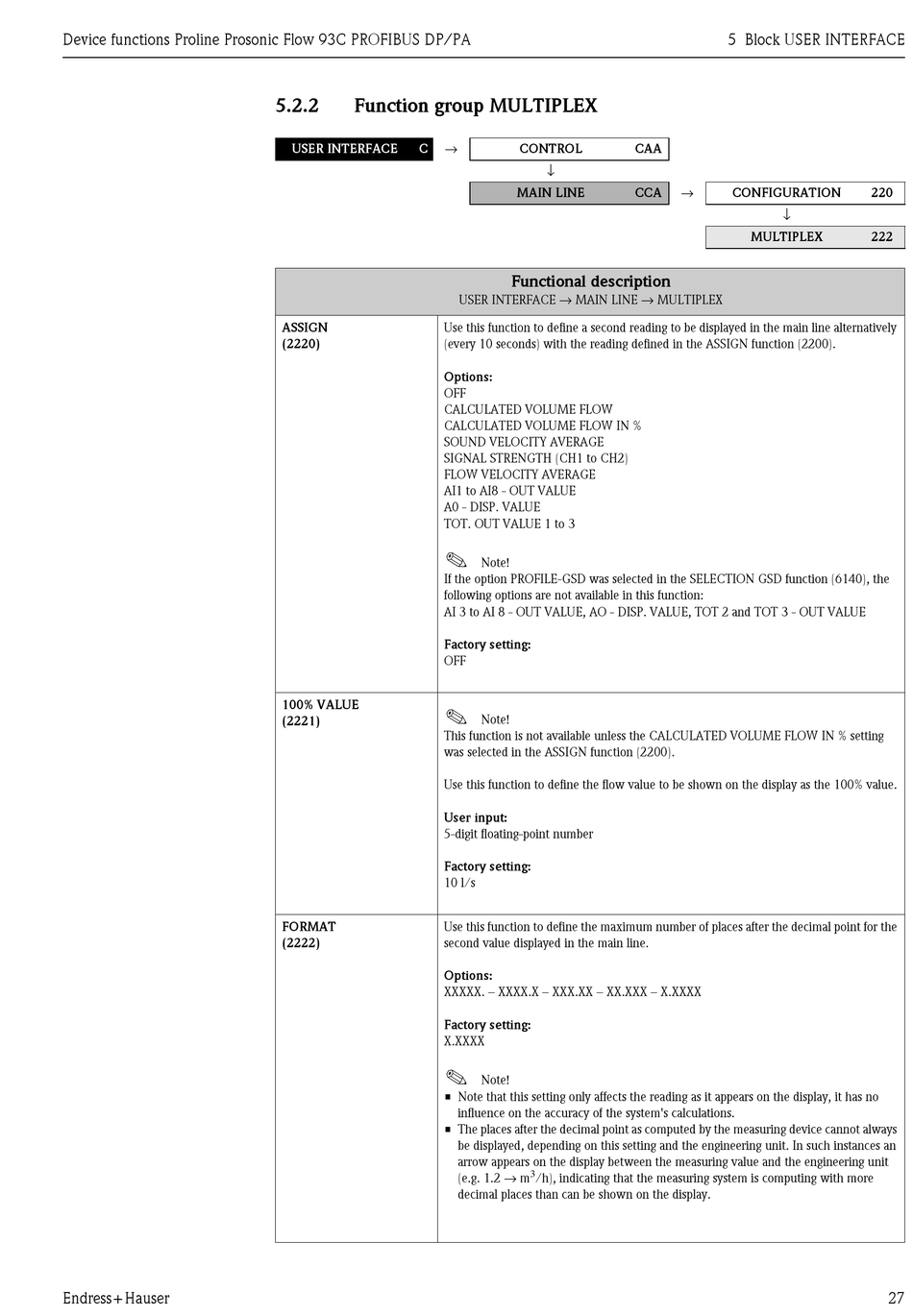

Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Endress+Hauser
5.2.2

Function group MULTIPLEX

→
USER INTERFACE C
ASSIGN Use this function to define a second reading to be displayed in the main line alternatively
(2220) (every 10 seconds) with the reading defined in the ASSIGN function (2200).
Options:
OFF
CALCULATED VOLUME FLOW
CALCULATED VOLUME FLOW IN %
SOUND VELOCITY AVERAGE
SIGNAL STRENGTH (CH1 to CH2)
FLOW VELOCITY AVERAGE
AI1 to AI8 - OUT VALUE
A0 - DISP. VALUE
TOT. OUT VALUE 1 to 3
!
If the option PROFILE-GSD was selected in the SELECTION GSD function (6140), the
following options are not available in this function:
AI 3 to AI 8 - OUT VALUE, AO - DISP. VALUE, TOT 2 and TOT 3 - OUT VALUE
Factory setting:
OFF
100% VALUE
!
(2221)
This function is not available unless the CALCULATED VOLUME FLOW IN % setting
was selected in the ASSIGN function (2200).
Use this function to define the flow value to be shown on the display as the 100% value.
User input:
5-digit floating-point number
Factory setting:
10 l/s
FORMAT Use this function to define the maximum number of places after the decimal point for the
(2222) second value displayed in the main line.
Options:
XXXXX. – XXXX.X – XXX.XX – XX.XXX – X.XXXX
Factory setting:
X.XXXX
!
• Note that this setting only affects the reading as it appears on the display, it has no
• The places after the decimal point as computed by the measuring device cannot always
CONTROL
↓
MAIN LINE
Functional description
USER INTERFACE → MAIN LINE → MULTIPLEX
Note!
Note!
Note!
influence on the accuracy of the system's calculations.
be displayed, depending on this setting and the engineering unit. In such instances an
arrow appears on the display between the measuring value and the engineering unit
(e.g. 1.2 → m 3
/h), indicating that the measuring system is computing with more
decimal places than can be shown on the display.
5 Block USER INTERFACE
CAA
→
CCA CONFIGURATION
↓
MULTIPLEX
220
222
27
