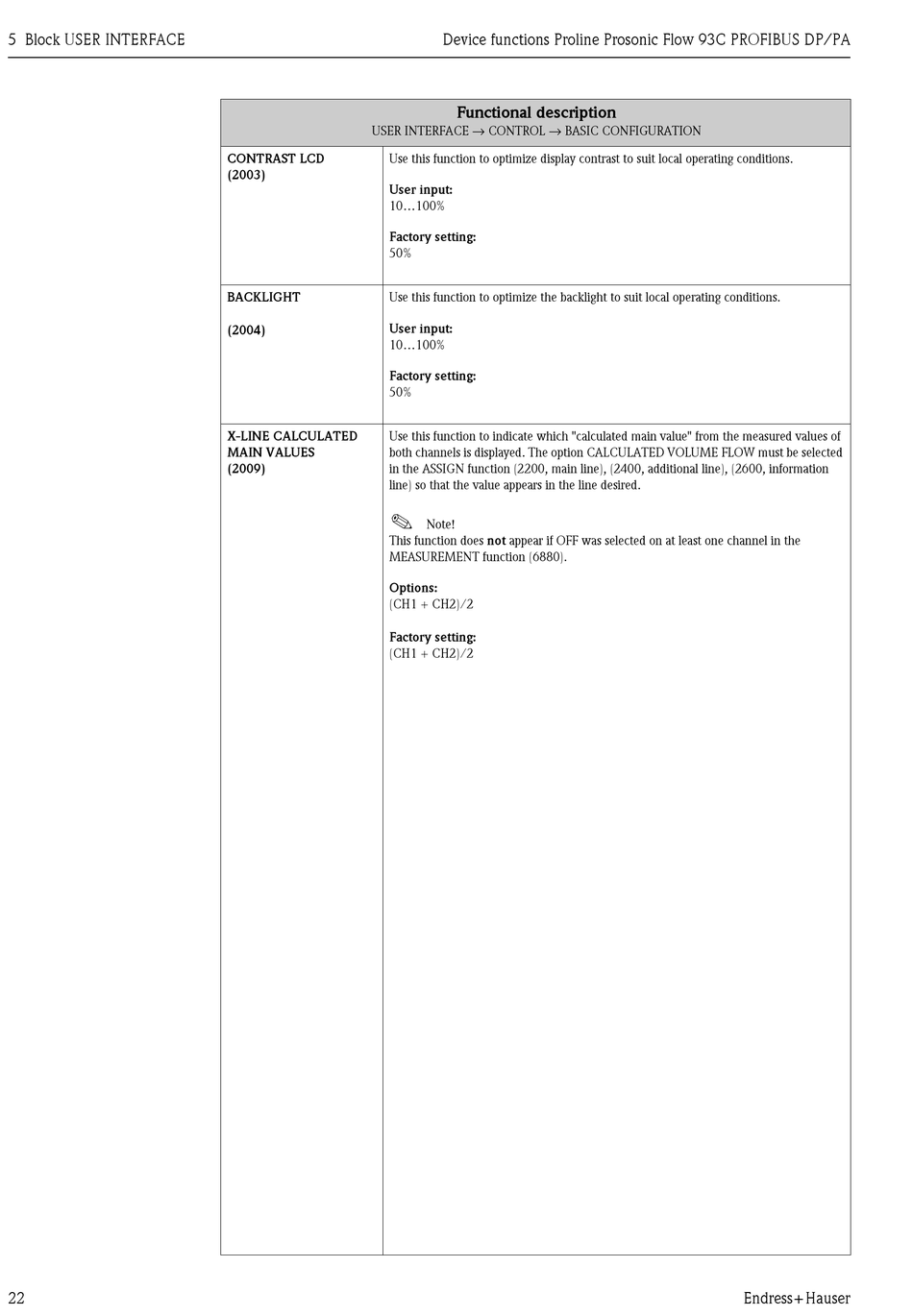

Endress+Hauser Proline Prosonic Flow 93C Description Of Device Functions page 22

5 Block USER INTERFACE
22
USER INTERFACE → CONTROL → BASIC CONFIGURATION
CONTRAST LCD Use this function to optimize display contrast to suit local operating conditions.
(2003)
User input:
10...100%
Factory setting:
50%
BACKLIGHT Use this function to optimize the backlight to suit local operating conditions.
User input:
(2004)
10...100%
Factory setting:
50%
X-LINE CALCULATED Use this function to indicate which "calculated main value" from the measured values of
MAIN VALUES both channels is displayed. The option CALCULATED VOLUME FLOW must be selected
(2009) in the ASSIGN function (2200, main line), (2400, additional line), (2600, information
line) so that the value appears in the line desired.
!
This function does not appear if OFF was selected on at least one channel in the
MEASUREMENT function (6880).
Options:
(CH1 + CH2)/2
Factory setting:
(CH1 + CH2)/2
Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Functional description
Note!
Endress+Hauser
