3 Block MEASURED VARIABLES
12
3.1.3

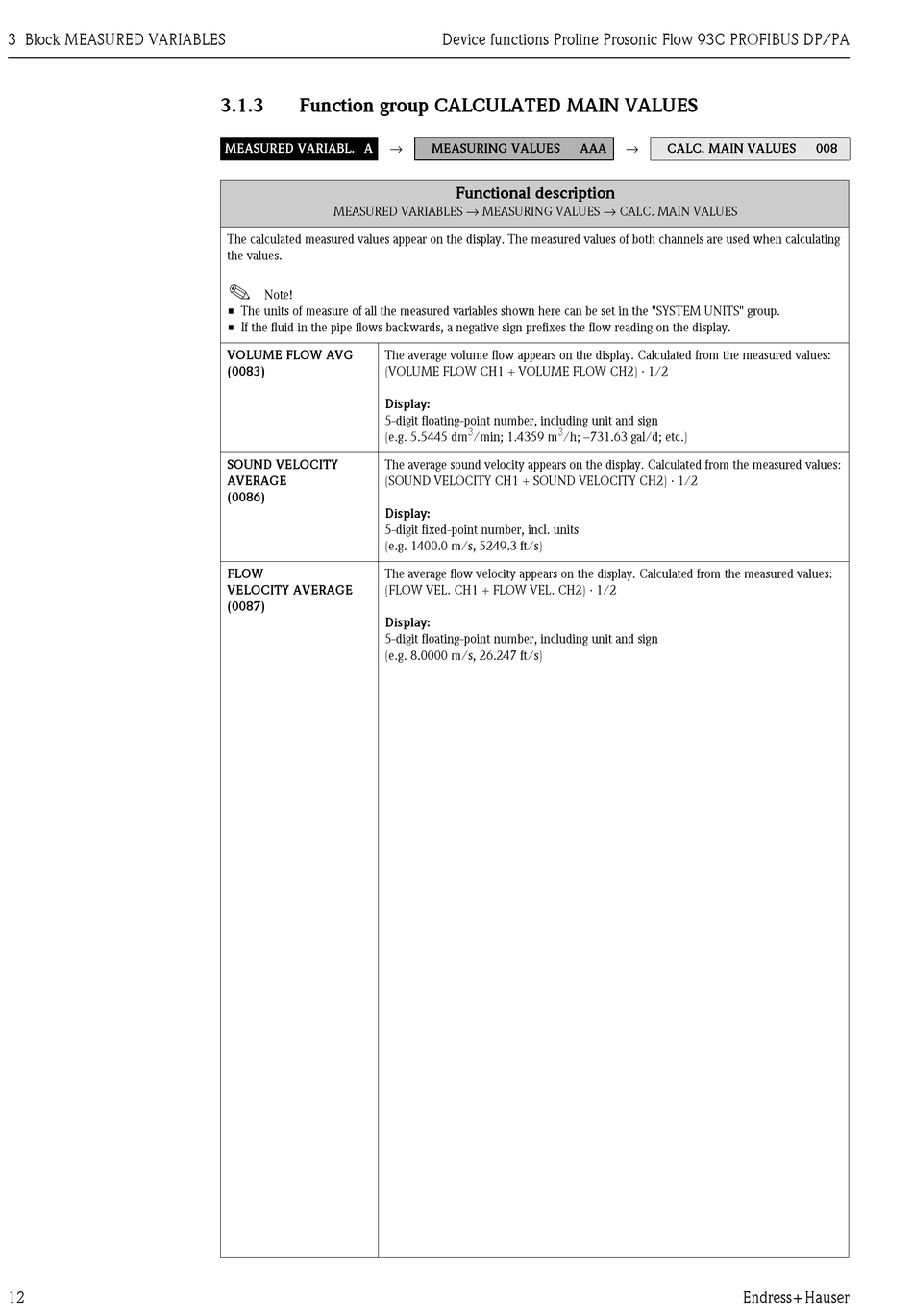

Function group CALCULATED MAIN VALUES

→
MEASURED VARIABL. A
MEASURED VARIABLES → MEASURING VALUES → CALC. MAIN VALUES
The calculated measured values appear on the display. The measured values of both channels are used when calculating
the values.
!
Note!
• The units of measure of all the measured variables shown here can be set in the "SYSTEM UNITS" group.
• If the fluid in the pipe flows backwards, a negative sign prefixes the flow reading on the display.
VOLUME FLOW AVG The average volume flow appears on the display. Calculated from the measured values:
(0083) (VOLUME FLOW CH1 + VOLUME FLOW CH2) · 1/2
Display:
5-digit floating-point number, including unit and sign
(e.g. 5.5445 dm
SOUND VELOCITY The average sound velocity appears on the display. Calculated from the measured values:
AVERAGE (SOUND VELOCITY CH1 + SOUND VELOCITY CH2) · 1/2
(0086)
Display:
5-digit fixed-point number, incl. units
(e.g. 1400.0 m/s, 5249.3 ft/s)
FLOW The average flow velocity appears on the display. Calculated from the measured values:
VELOCITY AVERAGE (FLOW VEL. CH1 + FLOW VEL. CH2) · 1/2
(0087)
Display:
5-digit floating-point number, including unit and sign
(e.g. 8.0000 m/s, 26.247 ft/s)
Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
MEASURING VALUES AAA
Functional description
3 3
/min; 1.4359 m /h; –731.63 gal/d; etc.)
→
CALC. MAIN VALUES
