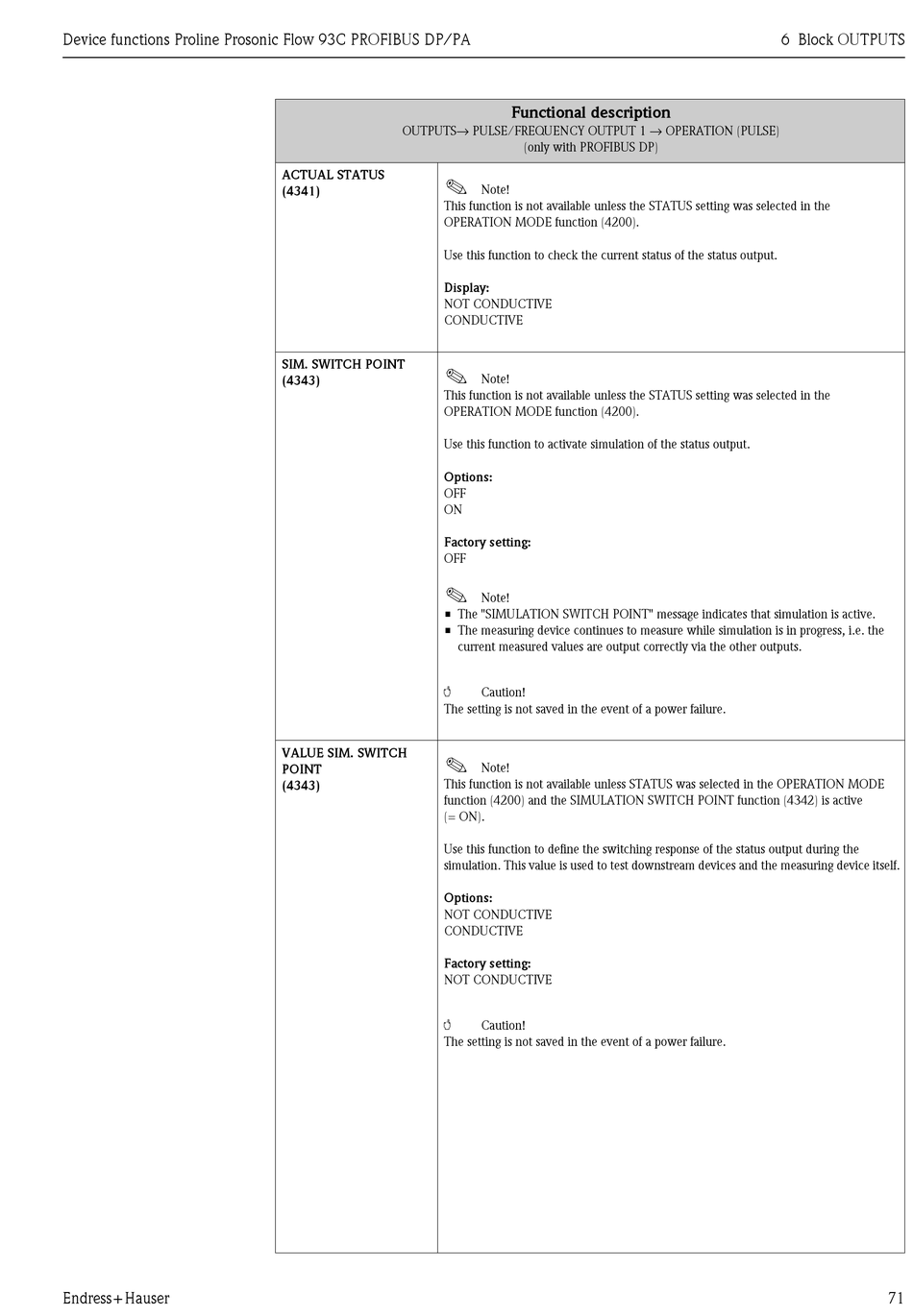

Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Endress+Hauser
OUTPUTS→ PULSE/FREQUENCY OUTPUT 1 → OPERATION (PULSE)
ACTUAL STATUS
!
(4341)
This function is not available unless the STATUS setting was selected in the
OPERATION MODE function (4200).
Use this function to check the current status of the status output.
Display:
NOT CONDUCTIVE
CONDUCTIVE
SIM. SWITCH POINT
!
(4343)
This function is not available unless the STATUS setting was selected in the
OPERATION MODE function (4200).
Use this function to activate simulation of the status output.
Options:
OFF
ON
Factory setting:
OFF
!
• The "SIMULATION SWITCH POINT" message indicates that simulation is active.
• The measuring device continues to measure while simulation is in progress, i.e. the
"
The setting is not saved in the event of a power failure.
VALUE SIM. SWITCH
!
POINT
This function is not available unless STATUS was selected in the OPERATION MODE
(4343)
function (4200) and the SIMULATION SWITCH POINT function (4342) is active
(= ON).
Use this function to define the switching response of the status output during the
simulation. This value is used to test downstream devices and the measuring device itself.
Options:
NOT CONDUCTIVE
CONDUCTIVE
Factory setting:
NOT CONDUCTIVE
"
The setting is not saved in the event of a power failure.
Functional description
(only with PROFIBUS DP)
Note!
Note!
Note!
current measured values are output correctly via the other outputs.
Caution!
Note!
Caution!
6 Block OUTPUTS
