5 Block USER INTERFACE
28
5.3

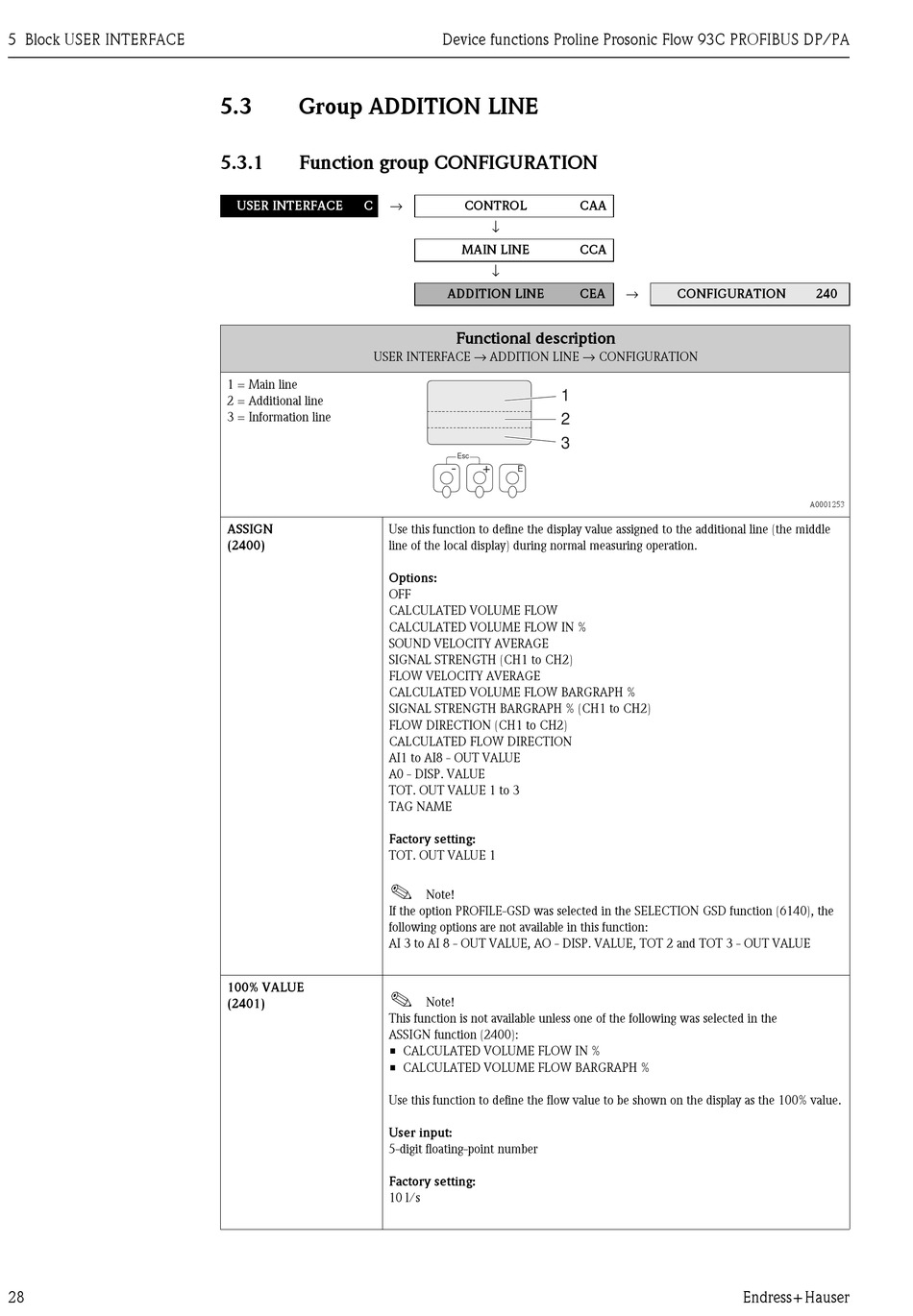

Group ADDITION LINE

5.3.1

Function group CONFIGURATION

→
USER INTERFACE C
USER INTERFACE → ADDITION LINE → CONFIGURATION
1 = Main line
2 = Additional line
3 = Information line
ASSIGN Use this function to define the display value assigned to the additional line (the middle
(2400) line of the local display) during normal measuring operation.
Options:
OFF
CALCULATED VOLUME FLOW
CALCULATED VOLUME FLOW IN %
SOUND VELOCITY AVERAGE
SIGNAL STRENGTH (CH1 to CH2)
FLOW VELOCITY AVERAGE
CALCULATED VOLUME FLOW BARGRAPH %
SIGNAL STRENGTH BARGRAPH % (CH1 to CH2)
FLOW DIRECTION (CH1 to CH2)
CALCULATED FLOW DIRECTION
AI1 to AI8 - OUT VALUE
A0 - DISP. VALUE
TOT. OUT VALUE 1 to 3
TAG NAME
Factory setting:
TOT. OUT VALUE 1
!
If the option PROFILE-GSD was selected in the SELECTION GSD function (6140), the
following options are not available in this function:
AI 3 to AI 8 - OUT VALUE, AO - DISP. VALUE, TOT 2 and TOT 3 - OUT VALUE
100% VALUE
!
(2401)
This function is not available unless one of the following was selected in the
ASSIGN function (2400):
• CALCULATED VOLUME FLOW IN %
• CALCULATED VOLUME FLOW BARGRAPH %
Use this function to define the flow value to be shown on the display as the 100% value.
User input:
5-digit floating-point number
Factory setting:
10 l/s
Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
CONTROL CAA
↓
MAIN LINE CCA
↓
ADDITION LINE CEA
Functional description
1
2
3
Esc
+
-
E
Note!
Note!
→
CONFIGURATION
Endress+Hauser
240
A0001253
