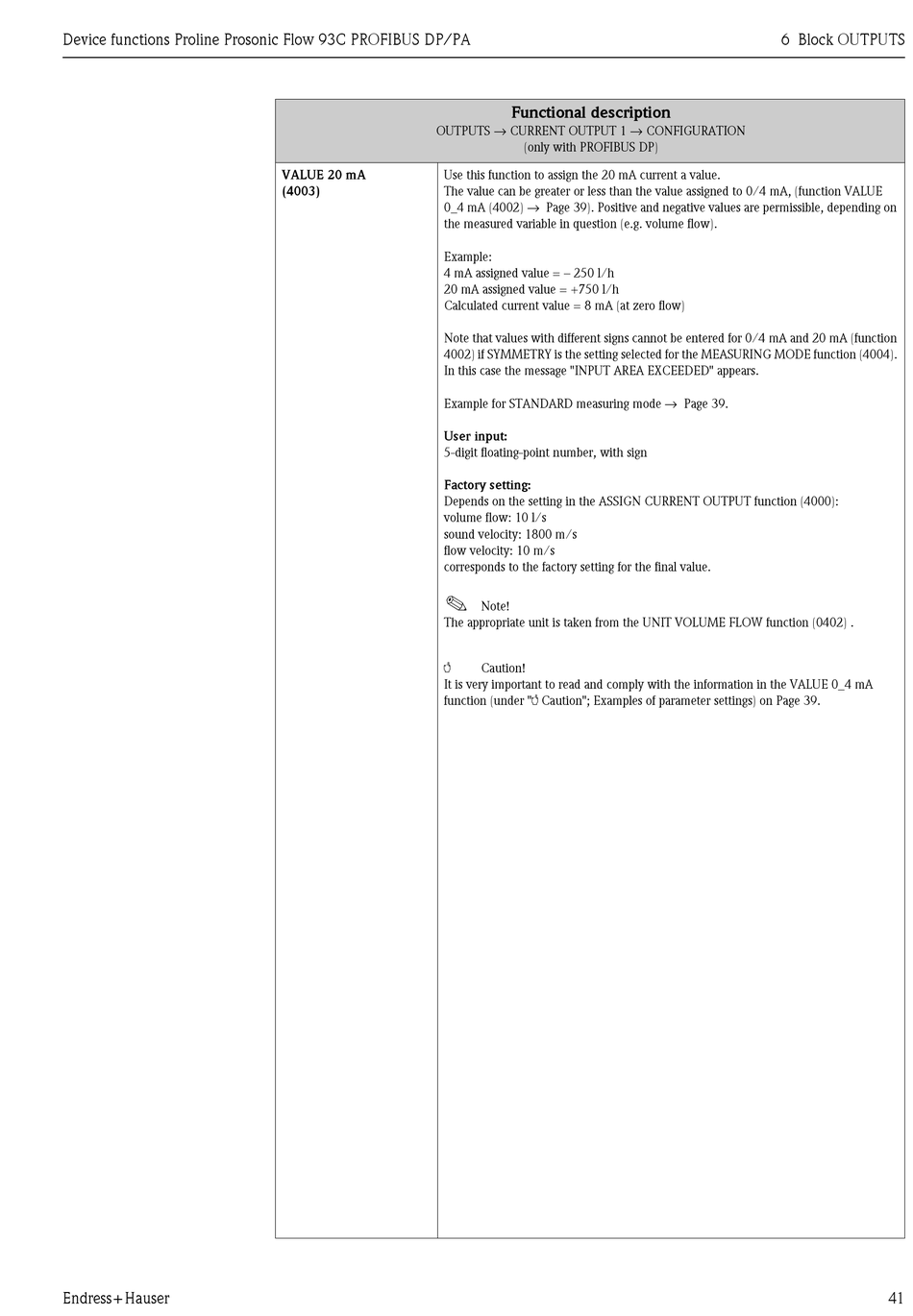

Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Endress+Hauser
OUTPUTS → CURRENT OUTPUT 1 → CONFIGURATION
VALUE 20 mA Use this function to assign the 20 mA current a value.
(4003) The value can be greater or less than the value assigned to 0/4 mA, (function VALUE
0_4 mA (4002) → Page 39). Positive and negative values are permissible, depending on
the measured variable in question (e.g. volume flow).
Example:
4 mA assigned value = – 250 l/h
20 mA assigned value = +750 l/h
Calculated current value = 8 mA (at zero flow)
Note that values with different signs cannot be entered for 0/4 mA and 20 mA (function
4002) if SYMMETRY is the setting selected for the MEASURING MODE function (4004).
In this case the message "INPUT AREA EXCEEDED" appears.
Example for STANDARD measuring mode → Page 39.
User input:
5-digit floating-point number, with sign
Factory setting:
Depends on the setting in the ASSIGN CURRENT OUTPUT function (4000):
volume flow: 10 l/s
sound velocity: 1800 m/s
flow velocity: 10 m/s
corresponds to the factory setting for the final value.
!
The appropriate unit is taken from the UNIT VOLUME FLOW function (0402) .
"
It is very important to read and comply with the information in the VALUE 0_4 mA
function (under "
Functional description
(only with PROFIBUS DP)
Note!
Caution!
"
Caution"; Examples of parameter settings) on Page 39.
6 Block OUTPUTS
41
