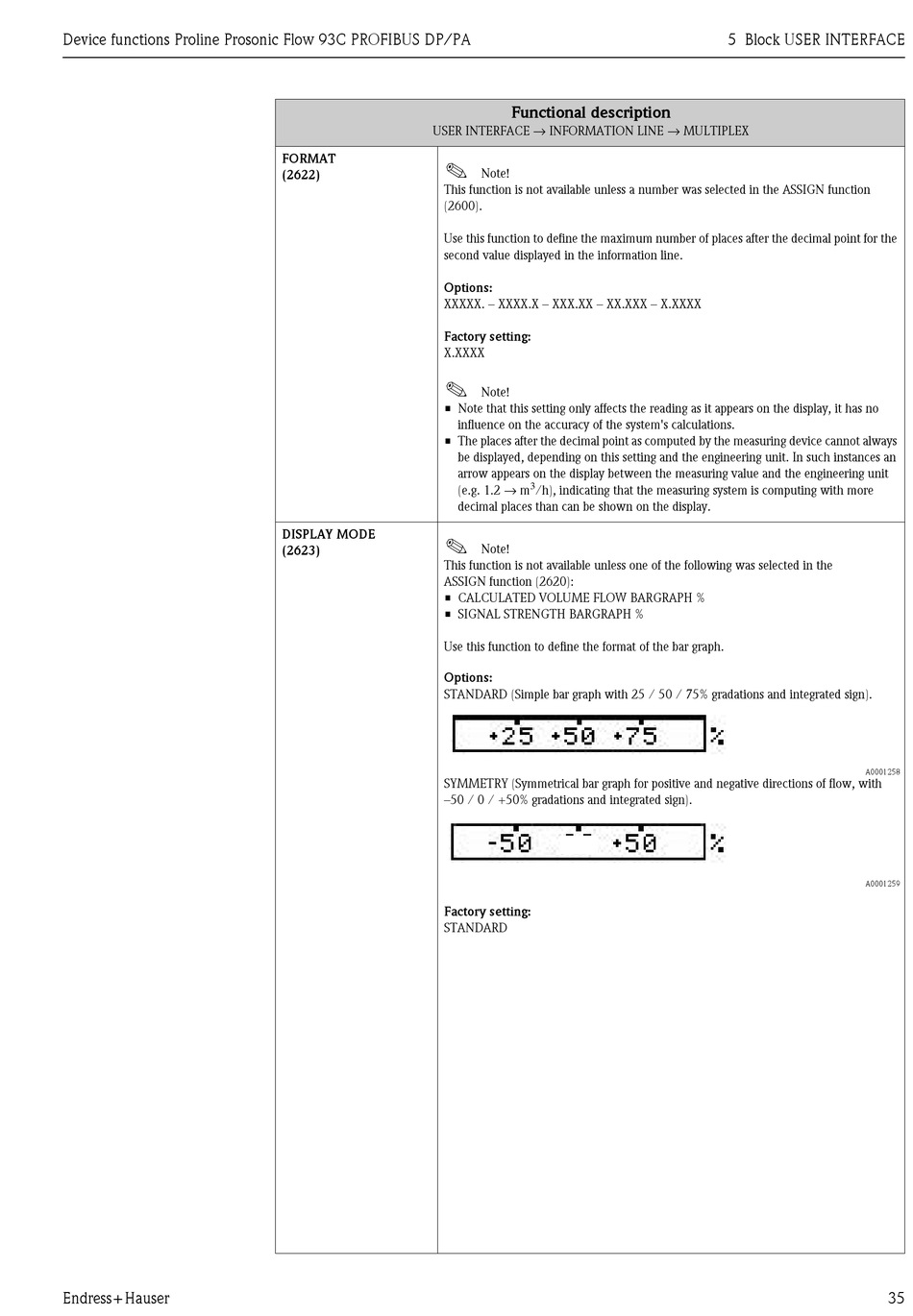

Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Endress+Hauser
USER INTERFACE → INFORMATION LINE → MULTIPLEX
FORMAT
!
(2622)
This function is not available unless a number was selected in the ASSIGN function
(2600).
Use this function to define the maximum number of places after the decimal point for the
second value displayed in the information line.
Options:
XXXXX. – XXXX.X – XXX.XX – XX.XXX – X.XXXX
Factory setting:
X.XXXX
!
• Note that this setting only affects the reading as it appears on the display, it has no
• The places after the decimal point as computed by the measuring device cannot always
DISPLAY MODE
!
(2623)
This function is not available unless one of the following was selected in the
ASSIGN function (2620):
• CALCULATED VOLUME FLOW BARGRAPH %
• SIGNAL STRENGTH BARGRAPH %
Use this function to define the format of the bar graph.
Options:
STANDARD (Simple bar graph with 25 / 50 / 75% gradations and integrated sign).
SYMMETRY (Symmetrical bar graph for positive and negative directions of flow, with
–50 / 0 / +50% gradations and integrated sign).
Factory setting:
STANDARD
Functional description
Note!
Note!
influence on the accuracy of the system's calculations.
be displayed, depending on this setting and the engineering unit. In such instances an
arrow appears on the display between the measuring value and the engineering unit
(e.g. 1.2 → m 3
/h), indicating that the measuring system is computing with more
decimal places than can be shown on the display.
Note!
5 Block USER INTERFACE
A0001258
A0001259
