Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Endress+Hauser
8.4.3

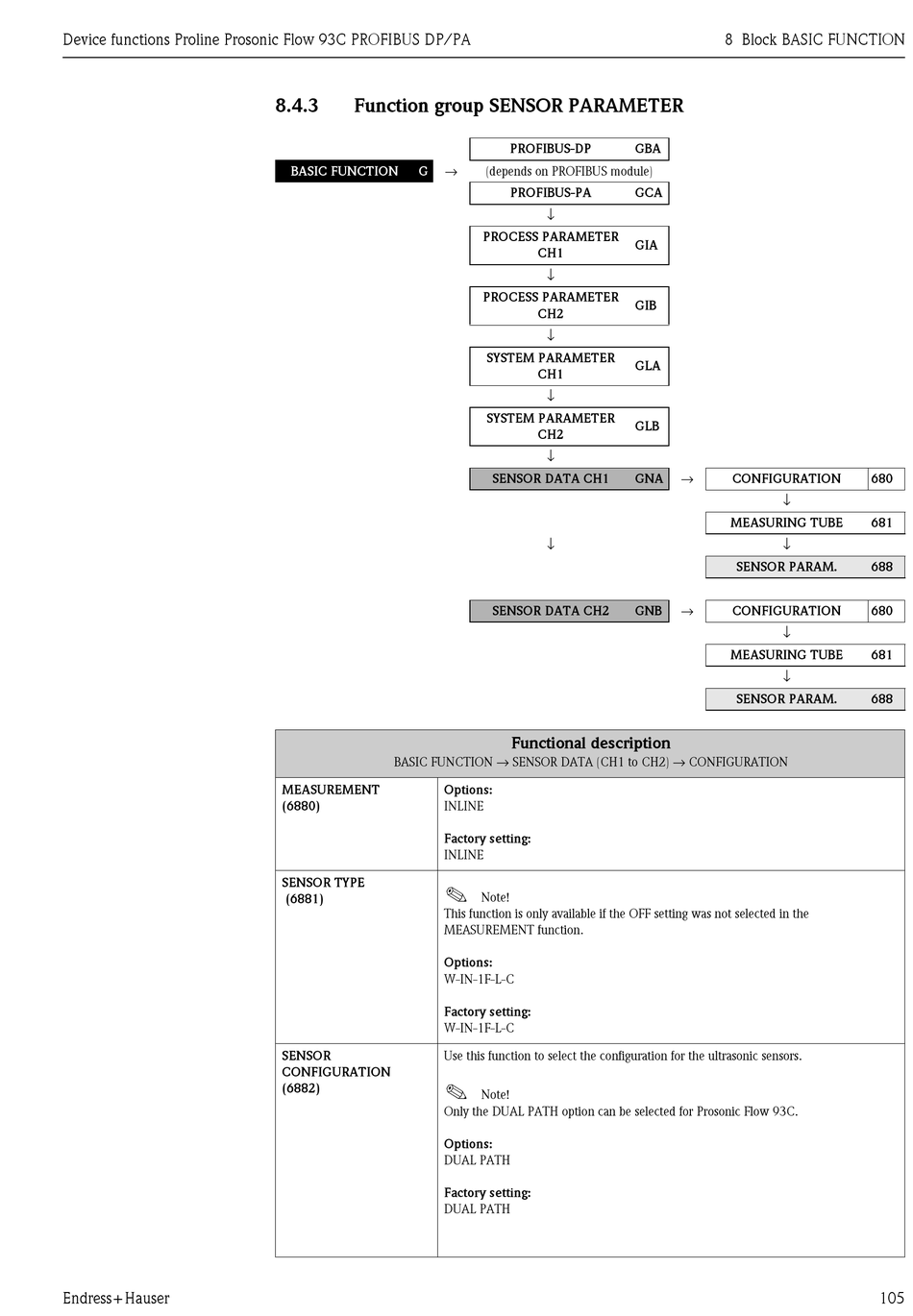

Function group SENSOR PARAMETER

→
BASIC FUNCTION G
BASIC FUNCTION → SENSOR DATA (CH1 to CH2) → CONFIGURATION
MEASUREMENT Options:
(6880) INLINE
Factory setting:
INLINE
SENSOR TYPE
!
(6881)
This function is only available if the OFF setting was not selected in the
MEASUREMENT function.
Options:
W-IN-1F-L-C
Factory setting:
W-IN-1F-L-C
SENSOR Use this function to select the configuration for the ultrasonic sensors.
CONFIGURATION
!
(6882)
Only the DUAL PATH option can be selected for Prosonic Flow 93C.
Options:
DUAL PATH
Factory setting:
DUAL PATH
PROFIBUS-DP GBA
(depends on PROFIBUS module)
PROFIBUS-PA GCA
↓
PROCESS PARAMETER
GIA
CH1
↓
PROCESS PARAMETER
GIB
CH2
↓
SYSTEM PARAMETER
GLA
CH1
↓
SYSTEM PARAMETER
GLB
CH2
↓
SENSOR DATA CH1 GNA
↓
SENSOR DATA CH2 GNB
Functional description
Note!
Note!
8 Block BASIC FUNCTION
→
CONFIGURATION
↓
MEASURING TUBE
↓
SENSOR PARAM.
→
CONFIGURATION
↓
MEASURING TUBE
↓
SENSOR PARAM.
680
681
688
680
681
688
105
