7 Block INPUTS
84

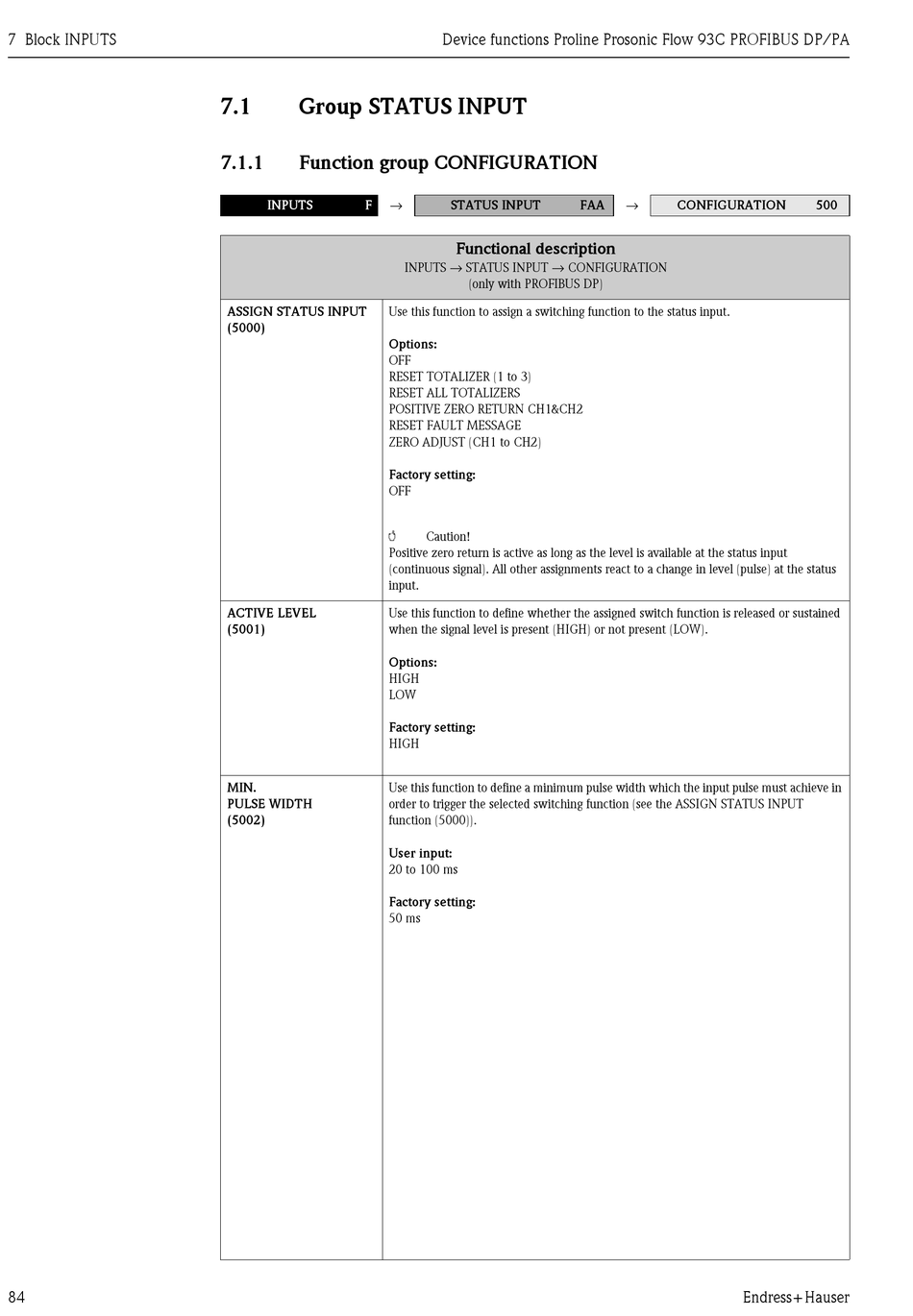

7.1

Group STATUS INPUT

7.1.1

Function group CONFIGURATION

→
INPUTS F
ASSIGN STATUS INPUT Use this function to assign a switching function to the status input.
(5000)
Options:
OFF
RESET TOTALIZER (1 to 3)
RESET ALL TOTALIZERS
POSITIVE ZERO RETURN CH1&CH2
RESET FAULT MESSAGE
ZERO ADJUST (CH1 to CH2)
Factory setting:
OFF
"
Positive zero return is active as long as the level is available at the status input
(continuous signal). All other assignments react to a change in level (pulse) at the status
input.
ACTIVE LEVEL Use this function to define whether the assigned switch function is released or sustained
(5001) when the signal level is present (HIGH) or not present (LOW).
Options:
HIGH
LOW
Factory setting:
HIGH
MIN. Use this function to define a minimum pulse width which the input pulse must achieve in
PULSE WIDTH order to trigger the selected switching function (see the ASSIGN STATUS INPUT
(5002) function (5000)).
User input:
20 to 100 ms
Factory setting:
50 ms
Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
STATUS INPUT
Functional description
INPUTS → STATUS INPUT → CONFIGURATION
(only with PROFIBUS DP)
Caution!
→
FAA CONFIGURATION
Endress+Hauser
500
