Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Endress+Hauser
8.1.2

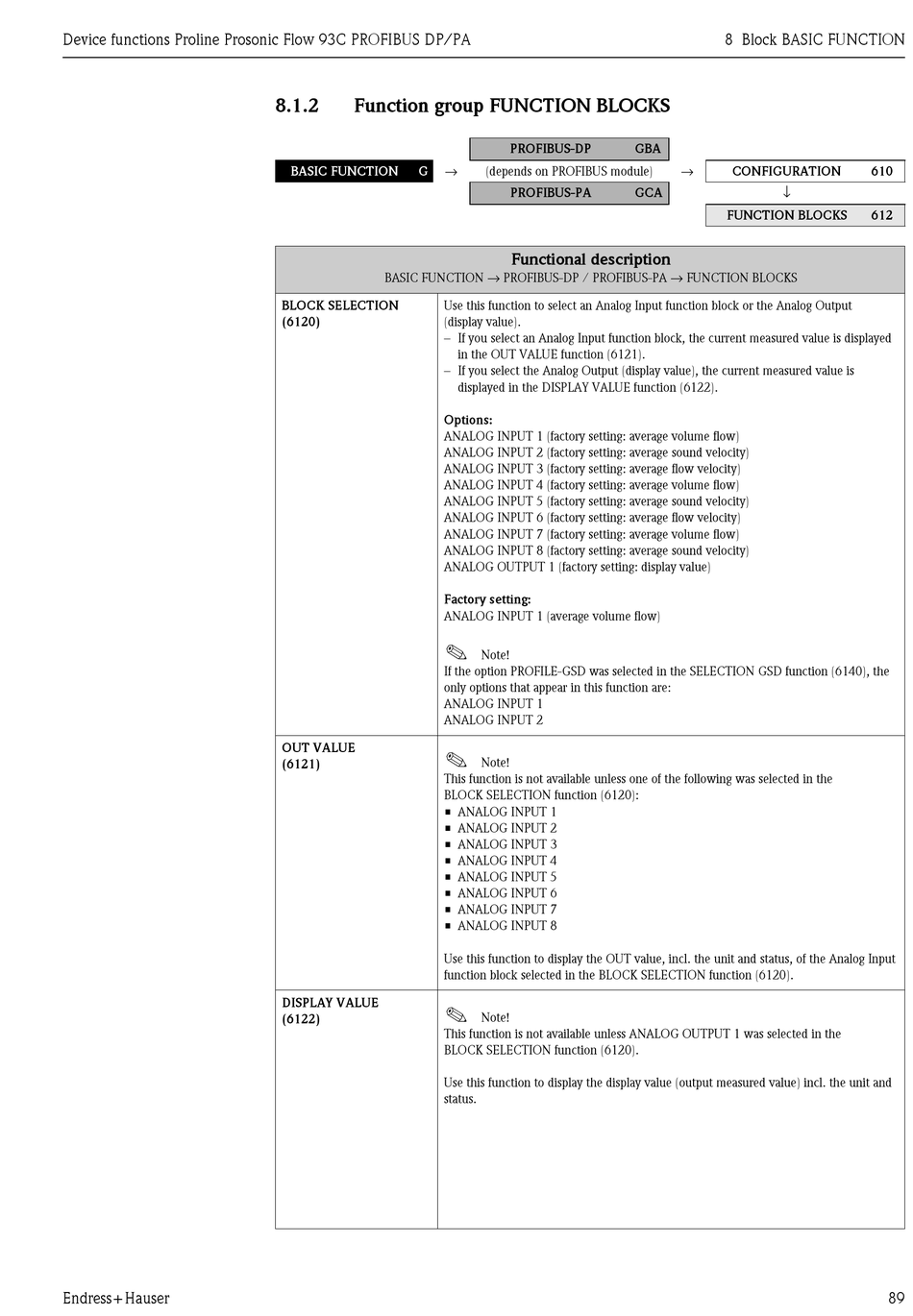

Function group FUNCTION BLOCKS

→
BASIC FUNCTION G
BASIC FUNCTION → PROFIBUS-DP / PROFIBUS-PA → FUNCTION BLOCKS
BLOCK SELECTION Use this function to select an Analog Input function block or the Analog Output
(6120) (display value).
– If you select an Analog Input function block, the current measured value is displayed
– If you select the Analog Output (display value), the current measured value is
Options:
ANALOG INPUT 1 (factory setting: average volume flow)
ANALOG INPUT 2 (factory setting: average sound velocity)
ANALOG INPUT 3 (factory setting: average flow velocity)
ANALOG INPUT 4 (factory setting: average volume flow)
ANALOG INPUT 5 (factory setting: average sound velocity)
ANALOG INPUT 6 (factory setting: average flow velocity)
ANALOG INPUT 7 (factory setting: average volume flow)
ANALOG INPUT 8 (factory setting: average sound velocity)
ANALOG OUTPUT 1 (factory setting: display value)
Factory setting:
ANALOG INPUT 1 (average volume flow)
!
If the option PROFILE-GSD was selected in the SELECTION GSD function (6140), the
only options that appear in this function are:
ANALOG INPUT 1
ANALOG INPUT 2
OUT VALUE
!
(6121)
This function is not available unless one of the following was selected in the
BLOCK SELECTION function (6120):
• ANALOG INPUT 1
• ANALOG INPUT 2
• ANALOG INPUT 3
• ANALOG INPUT 4
• ANALOG INPUT 5
• ANALOG INPUT 6
• ANALOG INPUT 7
• ANALOG INPUT 8
Use this function to display the OUT value, incl. the unit and status, of the Analog Input
function block selected in the BLOCK SELECTION function (6120).
DISPLAY VALUE
!
(6122)
This function is not available unless ANALOG OUTPUT 1 was selected in the
BLOCK SELECTION function (6120).
Use this function to display the display value (output measured value) incl. the unit and
status.
PROFIBUS-DP
(depends on PROFIBUS module)
PROFIBUS-PA
Functional description
in the OUT VALUE function (6121).
displayed in the DISPLAY VALUE function (6122).
Note!
Note!
Note!
8 Block BASIC FUNCTION
GBA
→
CONFIGURATION
↓
GCA
FUNCTION BLOCKS
610
612
89
