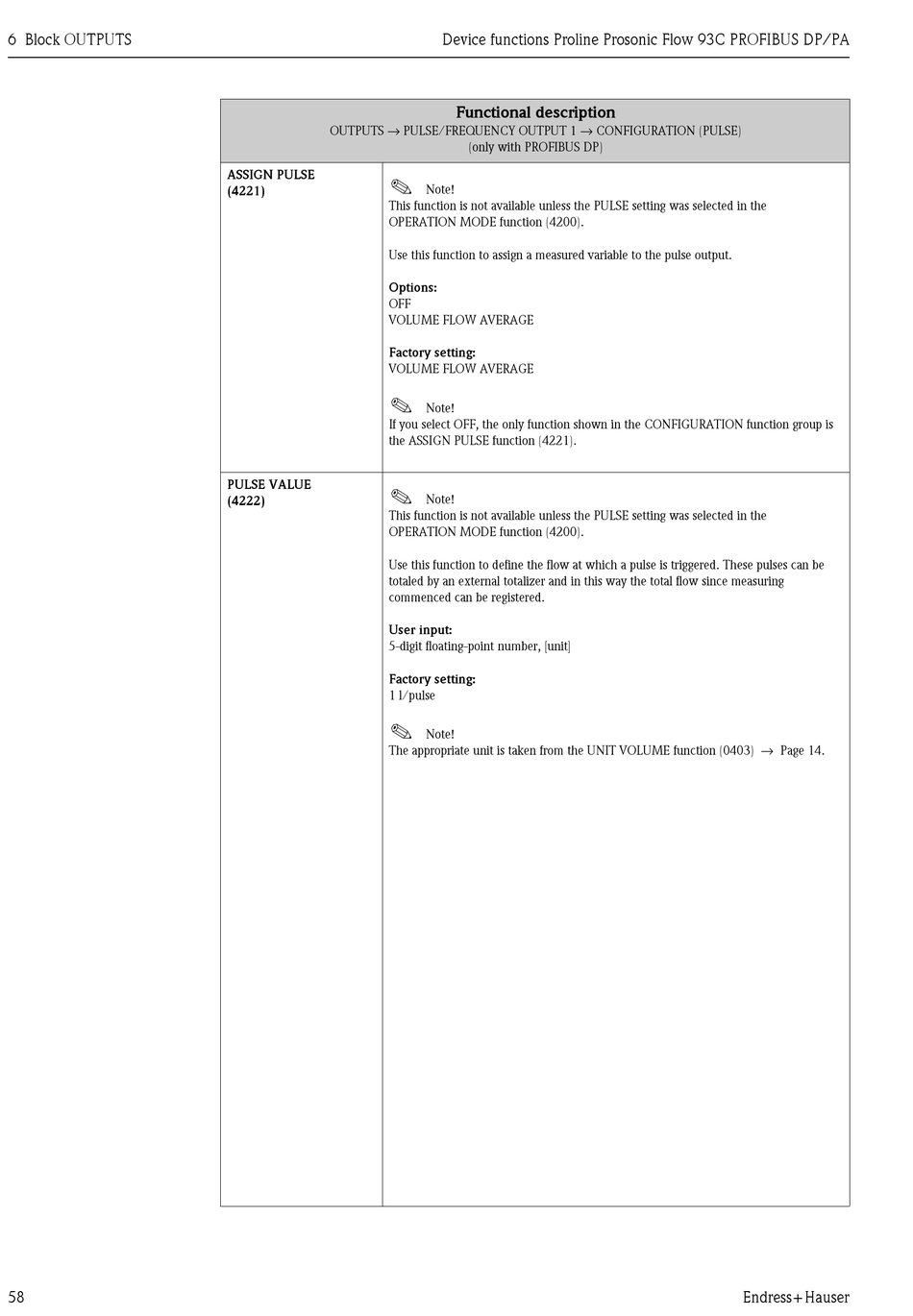

Endress+Hauser Proline Prosonic Flow 93C Description Of Device Functions page 58

6 Block OUTPUTS
58
OUTPUTS → PULSE/FREQUENCY OUTPUT 1 → CONFIGURATION (PULSE)
ASSIGN PULSE
!
(4221)
This function is not available unless the PULSE setting was selected in the
OPERATION MODE function (4200).
Use this function to assign a measured variable to the pulse output.
Options:
OFF
VOLUME FLOW AVERAGE
Factory setting:
VOLUME FLOW AVERAGE
!
If you select OFF, the only function shown in the CONFIGURATION function group is
the ASSIGN PULSE function (4221).
PULSE VALUE
!
(4222)
This function is not available unless the PULSE setting was selected in the
OPERATION MODE function (4200).
Use this function to define the flow at which a pulse is triggered. These pulses can be
totaled by an external totalizer and in this way the total flow since measuring
commenced can be registered.
User input:
5-digit floating-point number, [unit]
Factory setting:
1 l/pulse
!
The appropriate unit is taken from the UNIT VOLUME function (0403) → Page 14.
Device functions Proline Prosonic Flow 93C PROFIBUS DP/PA
Functional description
(only with PROFIBUS DP)
Note!
Note!
Note!
Note!
