Parameter Description
3-17 Reference 3 Source
Option: Function:
Select the reference input to be used
for the third reference signal.
3-15 Reference 1 Source, 3-16 Reference
2 Source and 3-17 Reference 3 Source
define up to three different reference
signals. The sum of these reference
signals defines the actual reference.
[0] No function
*
[1] Analog input 53
[2] Analog input 54
[7] Pulse input 29
[8] Pulse input 33
[20] Digital pot.meter
[21] Analog input X30/11
[22] Analog input X30/12
[23] Analog Input X42/1
[24] Analog Input X42/3
[25] Analog Input X42/5
[29] Analog Input X48/2
[30] Ext. Closed Loop 1
[31] Ext. Closed Loop 2
[32] Ext. Closed Loop 3
NOTE
This parameter cannot be adjusted while the motor is
running.
3-19 Jog Speed [RPM]
Range: Function:
Size [ 0 - par. Enter a value for the jog speed n
related 4-13 RPM]
which is a fixed output speed. The
*
frequency converter runs at this speed
when the jog function is activated. The
maximum limit is defined in 4-13 Motor
Speed High Limit [RPM].
See also 3-80 Jog Ramp Time.
®
VLT AQUA Drive Programming Guide
3.5.3 3-4* Ramp 1
Configure the ramp parameter, ramping times, for each of
the two ramps (parameter group 3-4* and parameter
group 3-5*).

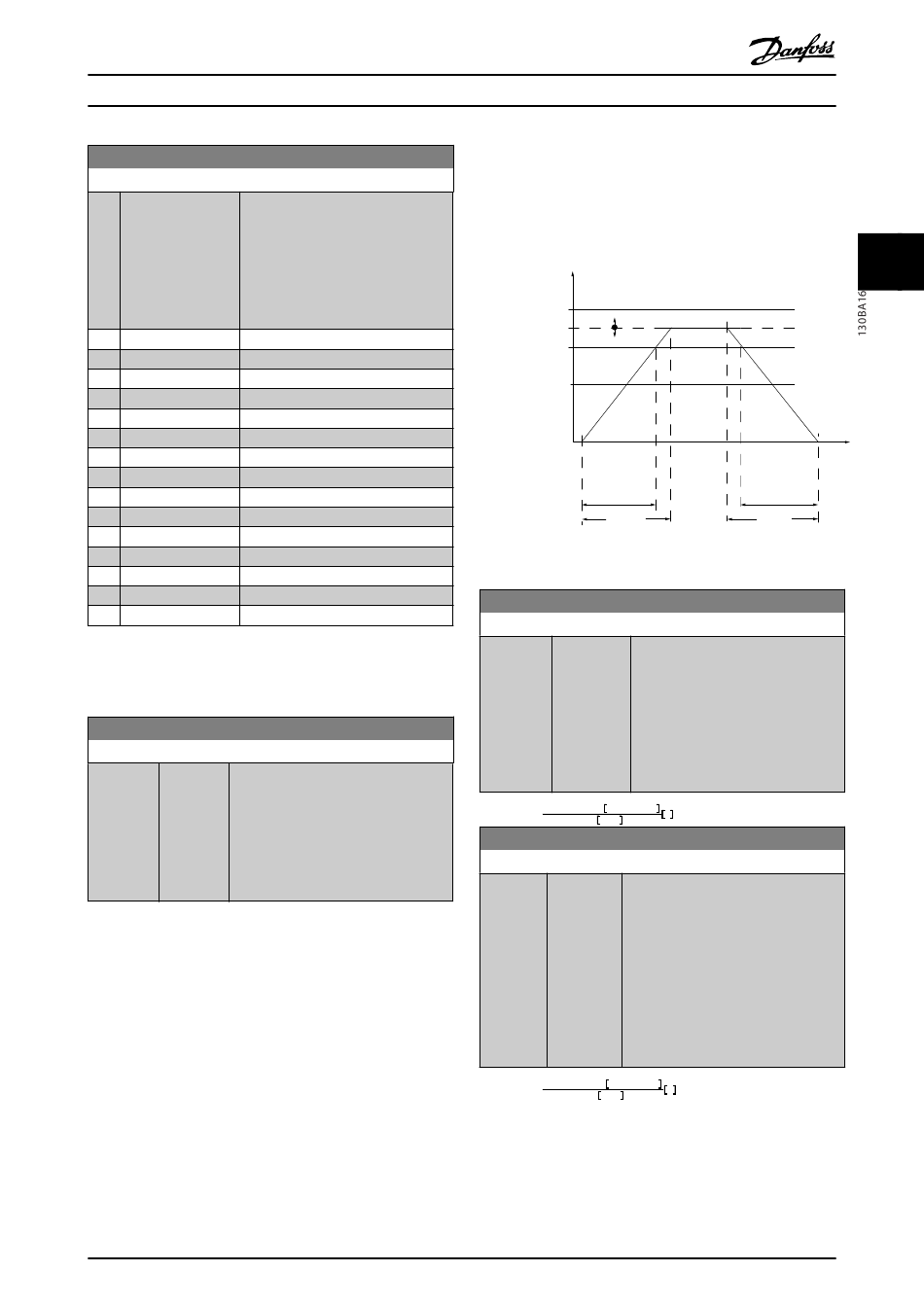

Illustration 3.16
3-41 Ramp 1 Ramp Up Time
Range:
Size
related
,
JOG
par .3 − 41 =
3-42 Ramp 1 Ramp Down Time
Range:
Size
related
par .3 − 42 =
®
MG20O602 - VLT is a registered Danfoss trademark
RPM
P 4-13
High-limit
Reference
P 1-25
Motor
speed
P 4-11
Low limit
P 3-*1
Ramp (X)Up
Time (Acc)
t
acc
Function:
[ 0.10 - Enter the ramp-up time, i.e. the
3600.00 s] acceleration time from 0 RPM to
*
1-25 Motor Nominal Speed. Choose a
ramp-up time such that the output
current does not exceed the current
limit in 4-18 Current Limit during
ramping. See ramp-down time in
3-42 Ramp 1 Ramp Down Time.
tacc × nnom par .1 − 25
s
ref rpm
Function:
[ 0.10 - Enter the ramp-down time, i.e. the
3600.00 s] deceleration time from 1-25 Motor
*
Nominal Speed to 0 RPM. Choose a
ramp-down time such that no over-
voltage arises in the inverter due to
regenerative operation of the motor,
and such that the generated current
does not exceed the current limit set in
4-18 Current Limit. See ramp-up time in
3-41 Ramp 1 Ramp Up Time.
tdec × nnom par .1 − 25
s
ref rpm
3 3
Time
P 3-*2
Ramp (X)
Down
Time (Dec)
t
dec
